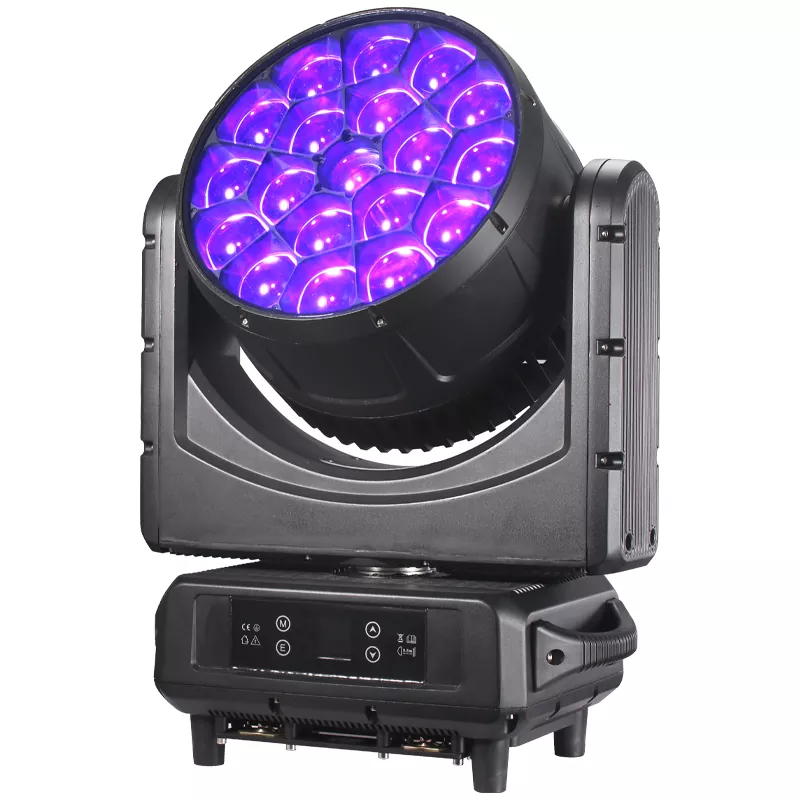

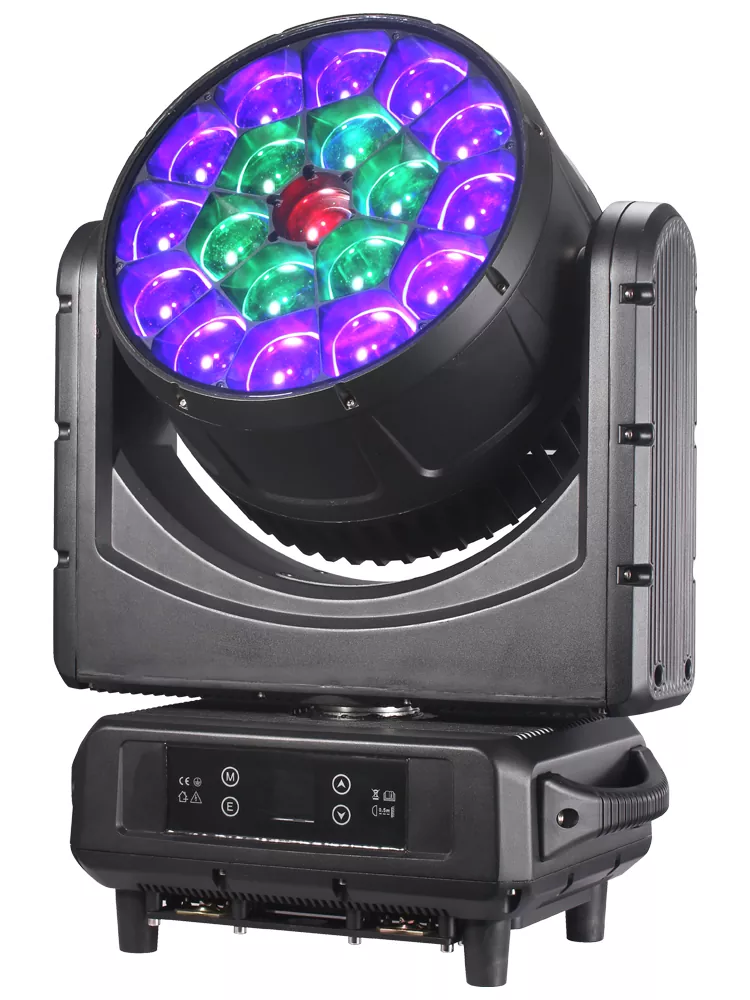

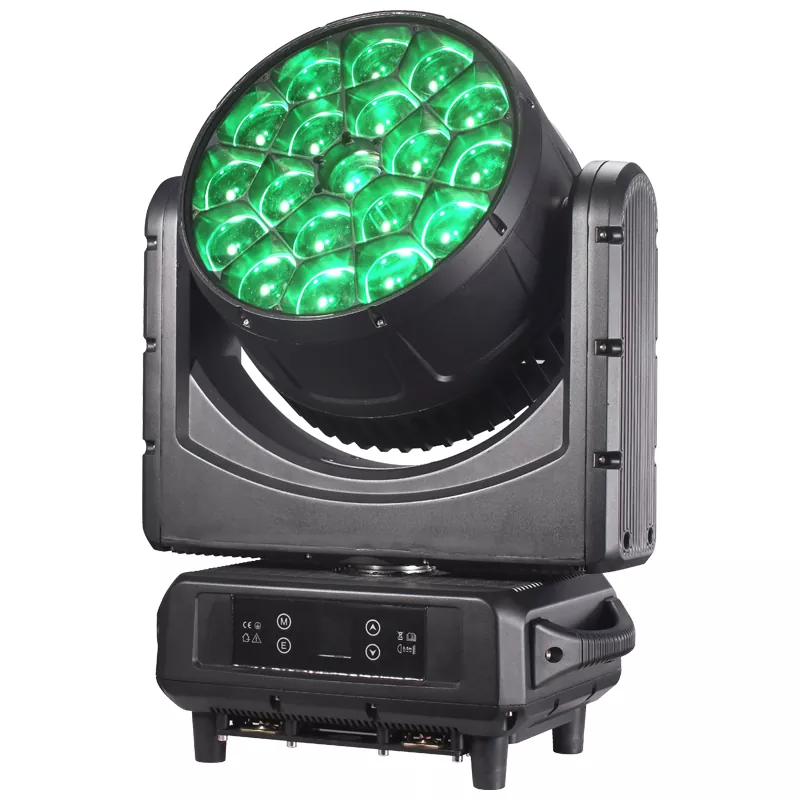

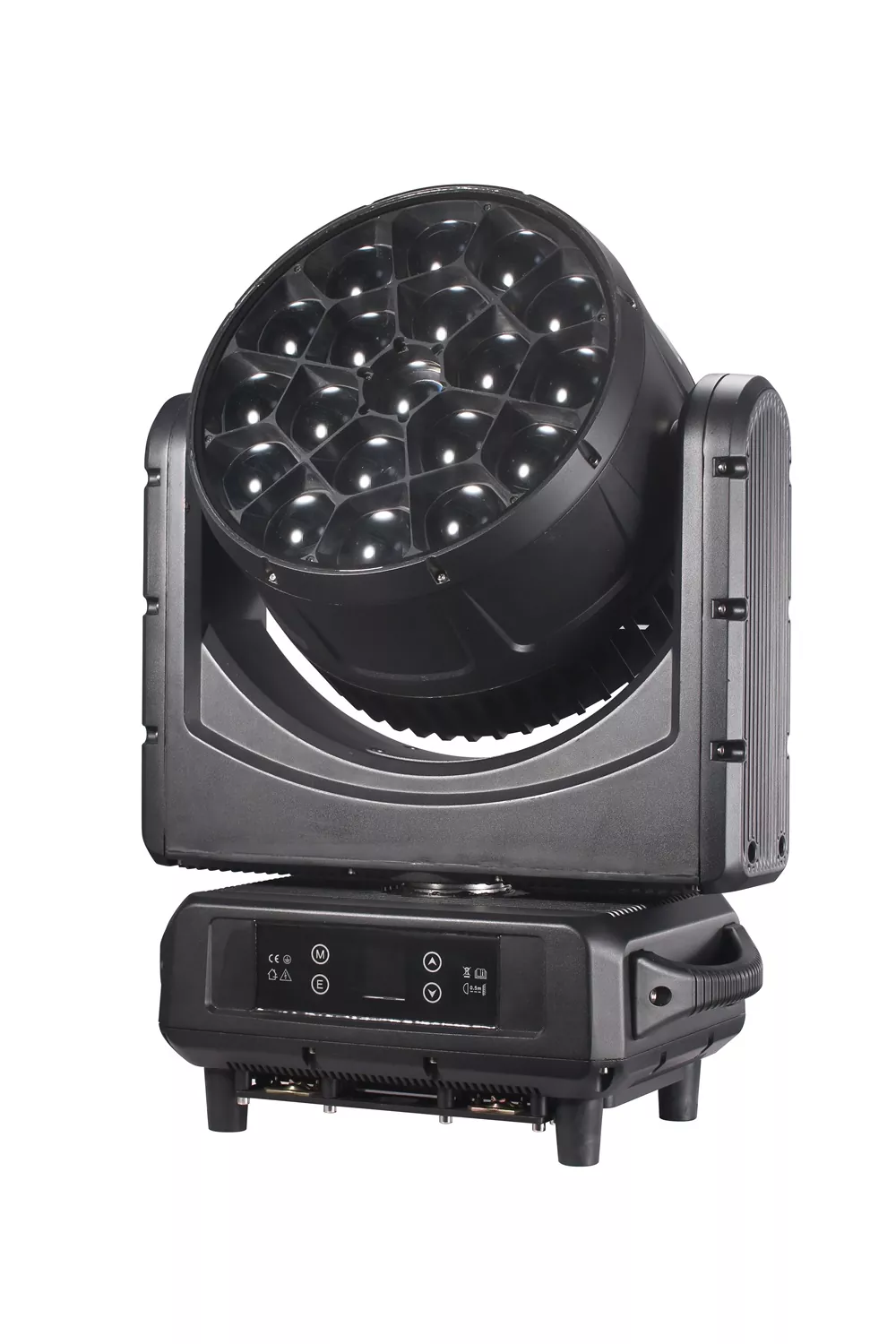

19x40W IP65 RGBW Bee‑Eye Pixel Zoom Moving‑Head

820W Outdoor Bee‑Eye Moving‑Head,Weather‑proof Pixel Bee‑Eye Light,540° Pan 220° Tilt Light,Touch‑LCD For Open‑air Stage Performance

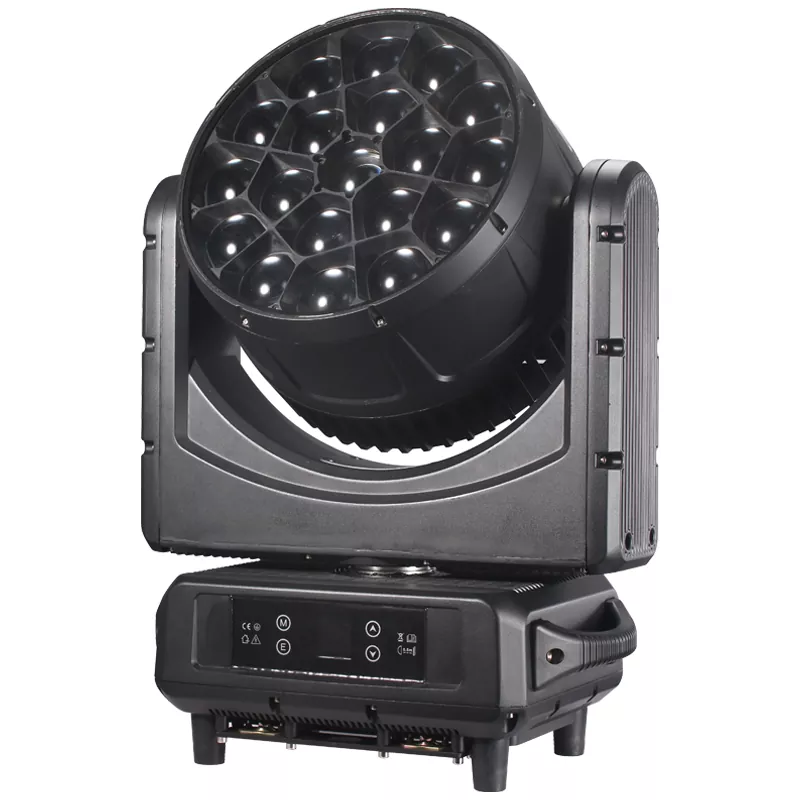

This 19x40w ip65 rgbw bee eye pixel zoom moving head is weather‑resistant pixel‑level controllable bee‑eye moving‑head fixture built for outdoor touring rental crews and scenic‑show integrators. Rated max 820W total power consumption, nineteen pieces of 40W RGBW LED with 50000‑hour service lifespan. It features 7‑45° linear motor zoom,2500‑10000K adjustable color temperature,360‑degree infinite‑rotation optical lens with kaleidoscope and small‑waist visual effects, true single‑point independent pixel control.

Pan‑tilt movement:540° pan,220° tilt. Six switchable DMX personalities:18CH /21CH /35CH /78CH /94CH /111CH. Native RDM and Art‑Net protocol support with CX‑interface software upgrade. Four selectable dimming curves,1K‑25Hz adjustable strobe,intelligent variable‑speed fan with overheat‑protection. Working modes:DMX512, MASTER‑SLAVE, AUTO‑RUN. Waterproof 1.77‑inch bilingual touch‑LCD menu. IP65 rating,AC100‑240V universal mains input for indoor and sheltered‑outdoor deployment.

Many Outdoor‑festival Lighting Programmers And Scenic‑show System Integrators Encounter distinctive B‑end real‑world operational pain‑points. A large share of bee‑eye pixel moving‑heads are only IP20 indoor‑rated, demanding extra bulky rain‑shield accessories for outdoor gigs and increasing on‑site rigging workload. Many competing outdoor bee‑eye fixtures lack Art‑‑‑Net network protocol, which restricts large‑scale multi‑unit network‑based pixel‑mapping creation for scenic‑show projects. Without multiple dimming‑curve selections, outdoor camera‑recorded performances risk visible flicker artifacts. Some models only deliver limited DMX‑channel options; crews cannot freely switch between low‑address quick‑setup and full‑pixel‑mapping high‑channel programming for mixed‑scale outdoor assignments.

The 19x40w ip65 rgbw bee eye pixel zoom moving head Addresses Harsh‑environment Outdoor Pixel‑animation Lighting Demands With Six‑DMX‑Personality Setting,Art‑‑‑Net‑RDM Dual‑protocol And IP65 Weather‑resistant Housing For Outdoor‑festival,Scenic‑real‑scene‑show And Shelter‑outdoor‑live‑concert Performance Workflows.shop‑category‑led‑moving‑head‑fixtures

Optical & Pixel‑Animation Highlights Of The 19X40W Ip65 Rgbw Bee Eye Pixel Zoom Moving Head

At Optical Core, The 19x40w ip65 rgbw bee eye pixel zoom moving head Uses nineteen independent 40W RGBW LED supporting complete single‑point pixel‑level color transformation. High‑precision quartz‑glass plus PMMA integrated‑structure lens optimizes light transmittance. 7‑45° linear motor‑driven zoom smoothly converts concentrated narrow‑beam output to large‑area soft wash illumination. 360‑degree infinitely‑rotatable optical lens produces kaleidoscope and small‑waist special visual patterns. Continuously adjustable 2500‑10000K color‑temperature adapts varied outdoor ambient‑light conditions. Four optional dimming‑curve profiles eliminate flicker risk for outdoor camera shooting, paired with wide‑range 1K‑25Hz strobe effect. Intelligent variable‑speed fan system adjusts fan rotation speed dynamically and triggers hardware‑level overheat‑protection under sustained high‑power output.

This Unit Is IP65 And Suited For Sheltered‑outdoor And Dry Indoor Deployment. Overhead Truss Installation Needs Secondary Anti‑Fall Safety Rope For Fall‑Prevention Protection. Wide AC100‑240V Input Fits Worldwide Indoor And Sheltered‑outdoor Venue Power‑supply Standards.

Control & Field Deployment For The 19X40W Ip65 Rgbw Bee Eye Pixel Zoom Moving Head

Six selectable DMX channel personalities balance fast on‑site commissioning and advanced pixel‑oriented creative programming. Simplified low‑channel modes greatly reduce DMX address consumption for rapid plug‑and‑play outdoor event setup. High‑channel 78CH,94CH and 111CH modes grant complete granular single‑LED pixel‑mapping tuning for custom‑built chase sequences,zoom,lens‑rotation and color‑temperature parameters. Integrated RDM plus Art‑‑‑‑‑Net protocol supports remote parameter access and large‑scale network‑based show programming;CX‑interface enables convenient on‑site firmware upgrade without fixture disassembly.

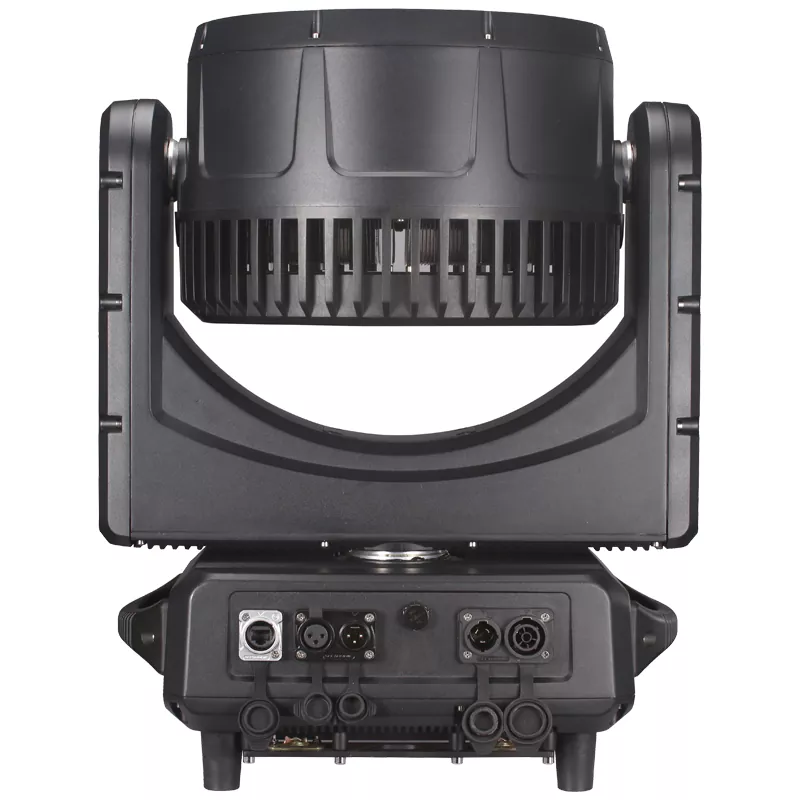

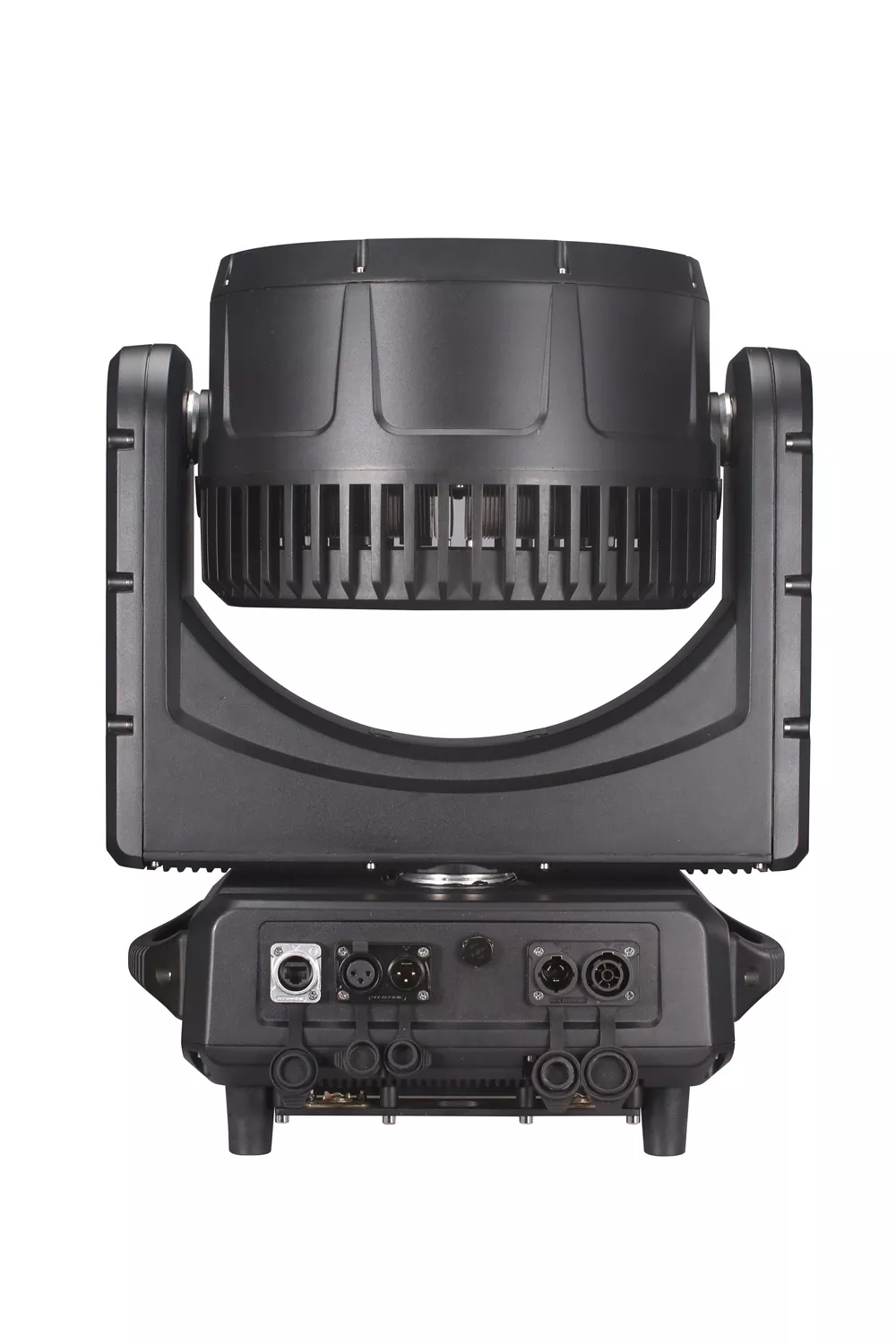

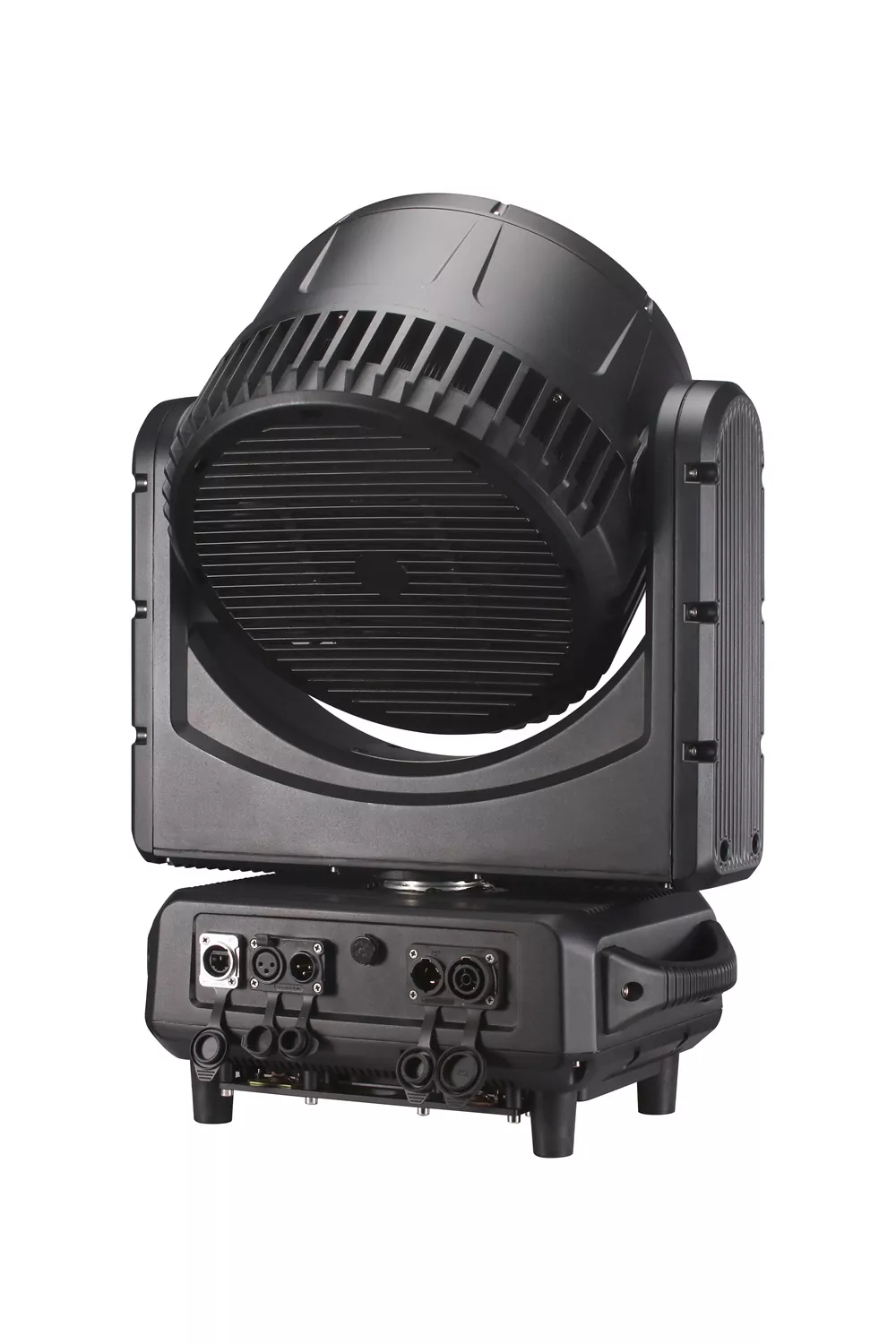

Beyond DMX512 console‑driven Workflow, MASTER‑SLAVE Linkage Achieves Synchronized Multi‑unit effect output. AUTO‑RUN Cycles internal preset sequences without external lighting controller. Waterproof bilingual touch‑LCD supports local parameter modification,humidity‑temperature reading and runtime‑data inspection. Standard waterproof signal ports simplify multi‑unit daisy‑chain wiring layout.

For Rental‑house Ip65‑bee‑eye‑pixel‑zoom‑fixture Inventory Expansion And Outdoor‑festival‑scenic‑show‑sheltered‑outdoor‑concert‑venue‑upgrade‑projects, This 19x40w ip65 rgbw bee eye pixel zoom moving head Delivers Weather‑proof Pixel‑animation Bee‑eye Visuals,Six‑profile DMX Mapping And Art‑‑‑‑‑Net‑RDM Dual‑protocol Operation. It Supplies B‑End Lighting Professionals A Heavy‑duty Outdoor‑ready Pixel‑beam‑wash Solution For Outdoor‑festival,Scenic‑real‑scene‑show And Shelter‑outdoor‑live‑concert Productions.

Voltage : AC100V-240V/50-60Hz
Power: 820W
Light source: 19*40W RGBW LED
Average lifespan: 50000h
Control methods: DMX512, RDM, master-slave mode, USB, ARTNET protocol (according to requirements)
Channel mode: 18CH/21CH/35CH/78CH/94CH/111CH
X: 540 ° Y: 220 ° Optical system: high-precision integrated structure lens, high transmittance quartz glass rod+PMMA
lens
Zoom angle: adjustable from 7 ° to 45 °
Beam beam: Outstanding small angle beam effect

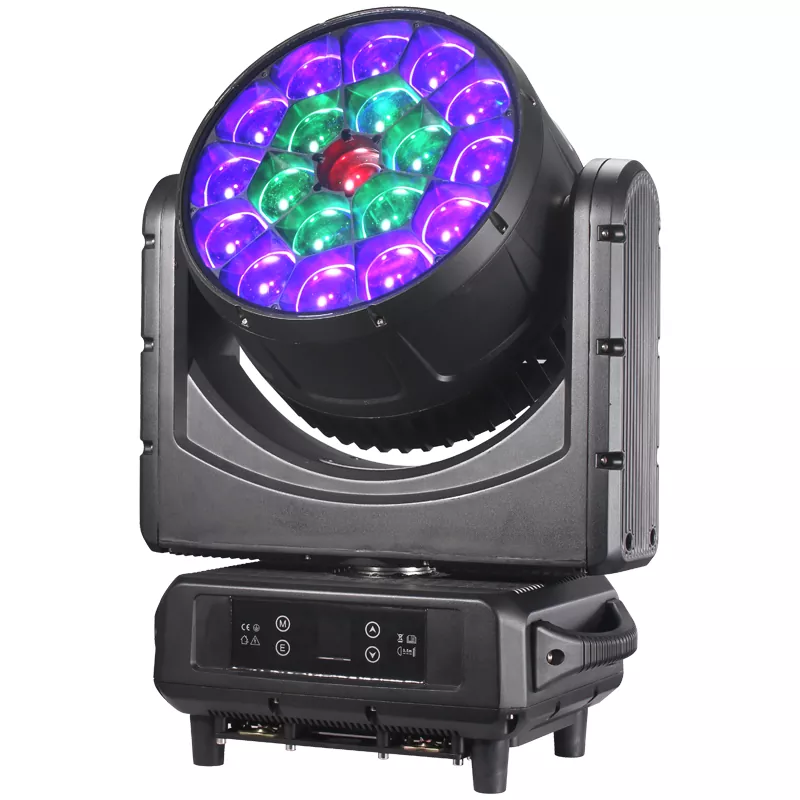

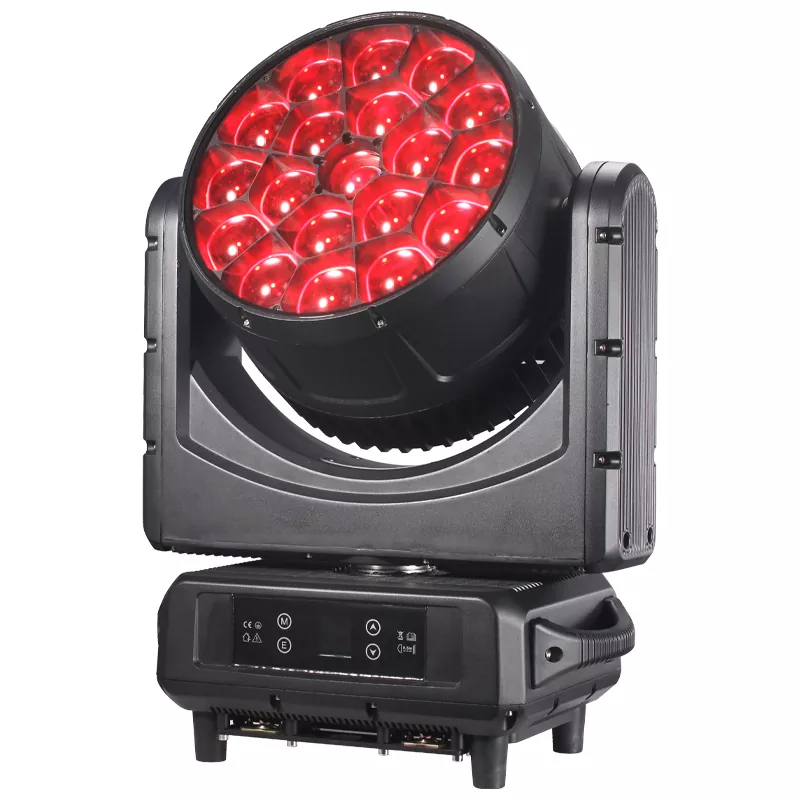

Color: RGBW color mixing system, uniform color mixing without flicker, fast color rainbow effect
Adjustable color temperature: 2500-10000K
Effect macros: static effect macro function and dynamic effect macro function
Strobe: 1K-25Hz
Dimming: Electronic dimming, four dimming curves, two dimming modes
Zoom system: linear electric zoomLens rotation: Optical lens with 360 ° infinite rotation, automatic error correction function for rotation, variable kaleidoscope, small waist and other effects
Single point control: The light source supports individual independent control and color transformation
Display screen: 1.77-inch LCD screen, bilingual menu in Chinese and English, available in Fahrenheit and Celsius degrees, waterproof intelligent touch key
Intelligent control: Equipment usage and lighting time, equipment temperature, and equipment humidity can be queried through the lighting menu
Channel data and software version failure information

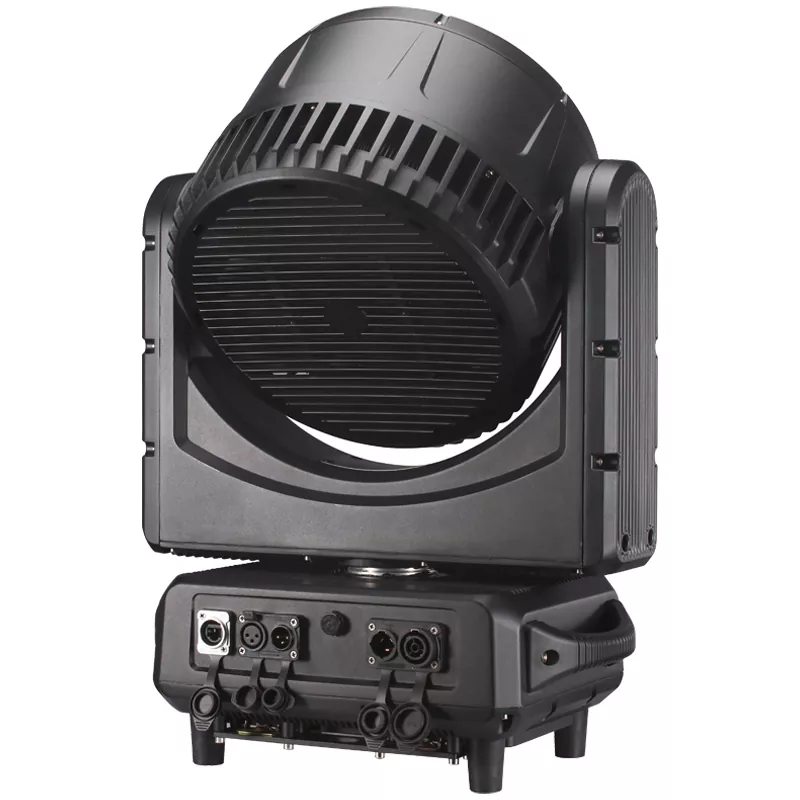

Temperature control: Intelligent temperature control, capable of automatically adjusting the speed of the cooling fan and overheating protection, with three fan modes
Software upgrade: Upload upgrade files through the CX interface
Shell material: Latest second-generation structural waterproof design, metal die-casting aluminum shell and fire-resistant engineering plastic
Protection level: IP65
Net weight: 23.5kg
Gross weight: 26kg

Q1: LED source specification and total power rating?

A1:19PCS 40W RGBW LED,50000Hr lifespan;max 820W for indoor and sheltered‑outdoor operation.

Q2: Zoom,optical and core movement mechanical parameters?

A2:7‑45° linear motor zoom,2500‑10000K CTO;360° infinite‑rotating lens;540° pan,220° tilt with single‑point pixel control.

Q3: What special protocol and firmware‑upgrade capabilities are built‑in?

A3:Native RDM and Art‑‑Net support;firmware upgrade available through CX communication interface.

Q4: Available DMX‑channel personalities and supported working modes?

A4:Six DMX personalities:18/21/35/78/94/111CH;DMX512,MASTER‑SLAVE,AUTO‑RUN.

Q5: Practical difference among six DMX channel modes?

A5:Low‑channel modes reduce DMX addresses for fast commissioning;high‑channel modes unlock full granular single‑LED pixel‑mapping programming.

Q6: What information can operators read on the waterproof touch‑LCD?

A6:DMX address setup,channel‑mode toggle,temperature‑humidity reading,runtime statistics,motor calibration and factory reset.

Q7: What environmental limits for IP65 rating should operators observe?

A7:IP65 fits sheltered outdoor scenarios;do NOT submerge;avoid long‑time direct heavy rain splash without outer shelter protection.

Q8: Safety reminders for overhead truss suspension installation?

A8:Use secondary anti‑fall safety rope for truss mounting;strictly follow local outdoor event electrical safety specifications.
