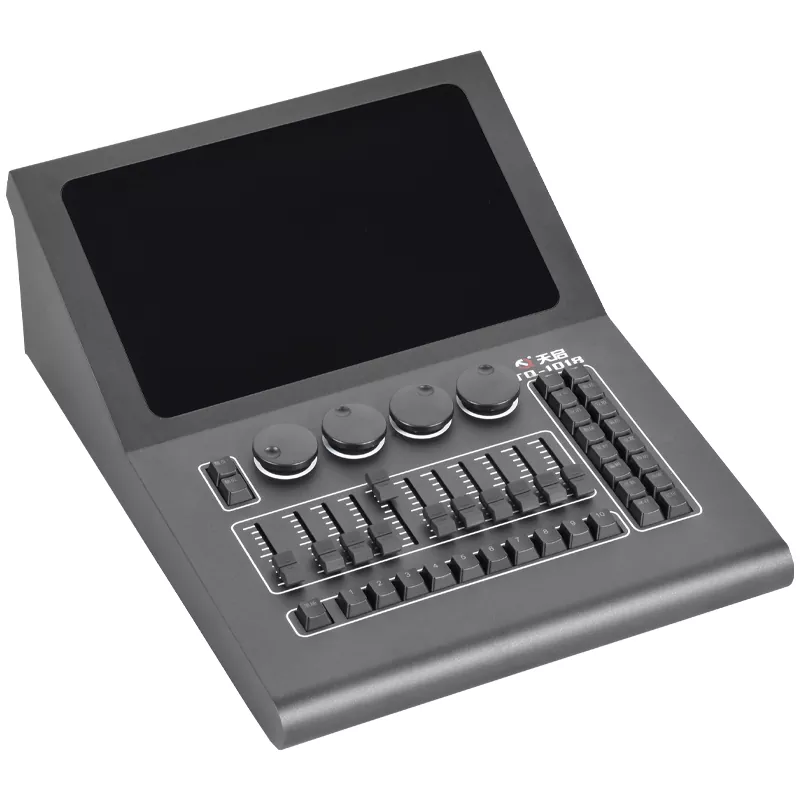

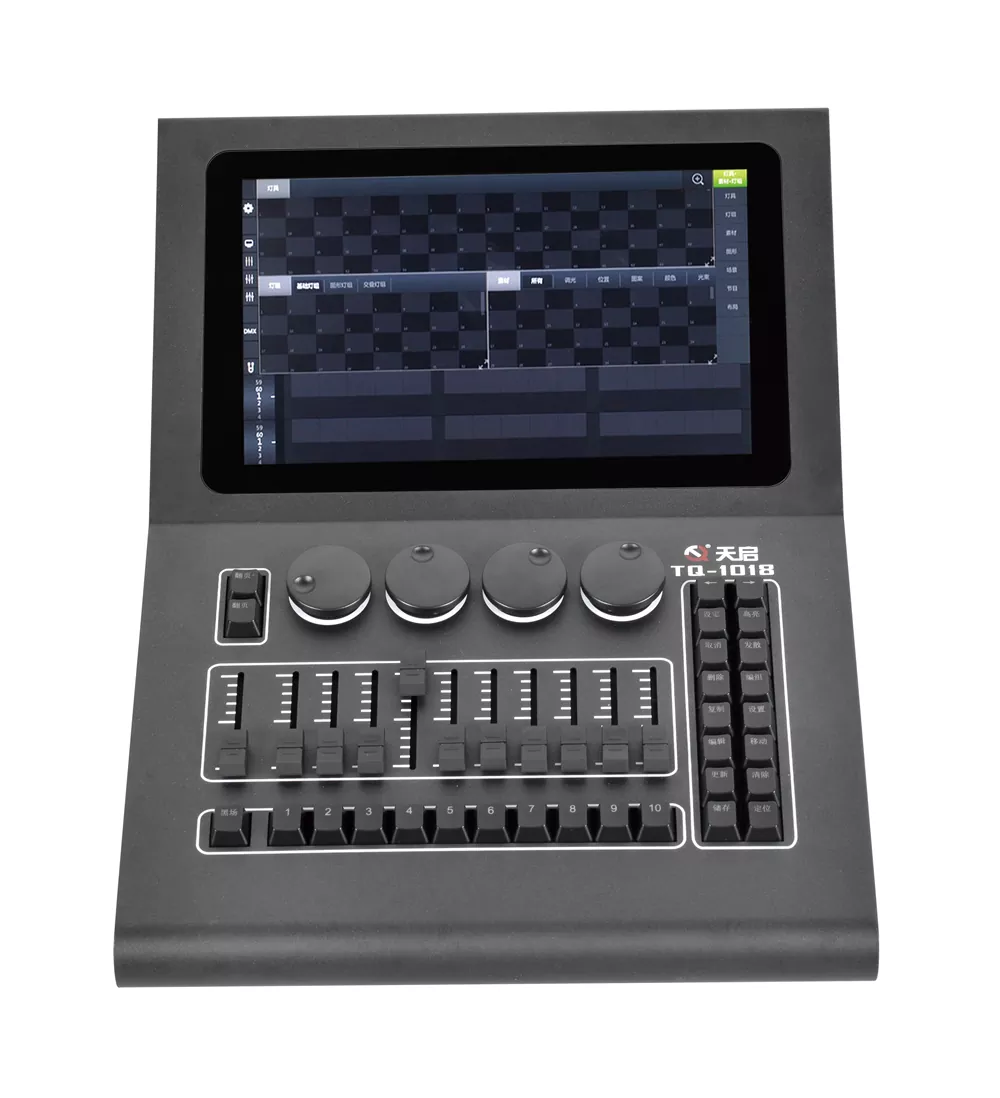

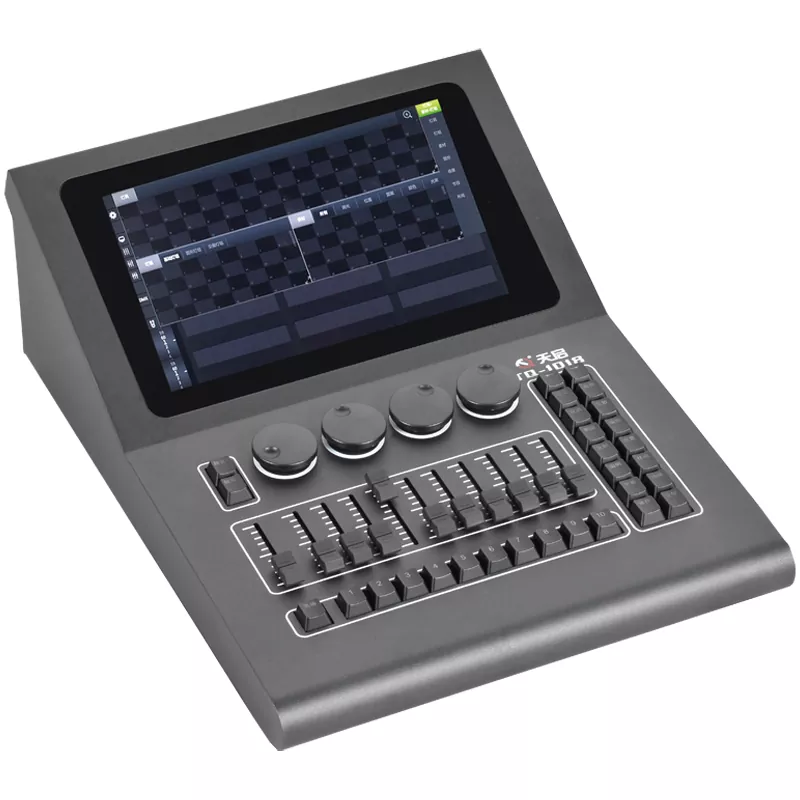

1018 Touch Screen Lighting Console Intel CPU 128G SSD 4G RAM 11.6 Inch Ultra-sensitive Capacitive Screen 4 Isolated DMX Ports UPS Backup 60-Minute Emergency Working Controller RDM Art-Net Stage Performance Hardware Wireless Mobile Tablet Remote Control Device Light Controller Desk

1018 Touch Screen Lighting Console Intel CPU 128G SSD 4G RAM 11.6 Inch Ultra-sensitive Capacitive Screen 4 Isolated DMX Ports UPS Backup 60-Minute Emergency Working Controller RDM Art-Net Stage Performance Hardware Wireless Mobile Tablet Remote Control Device Light Controller Desk

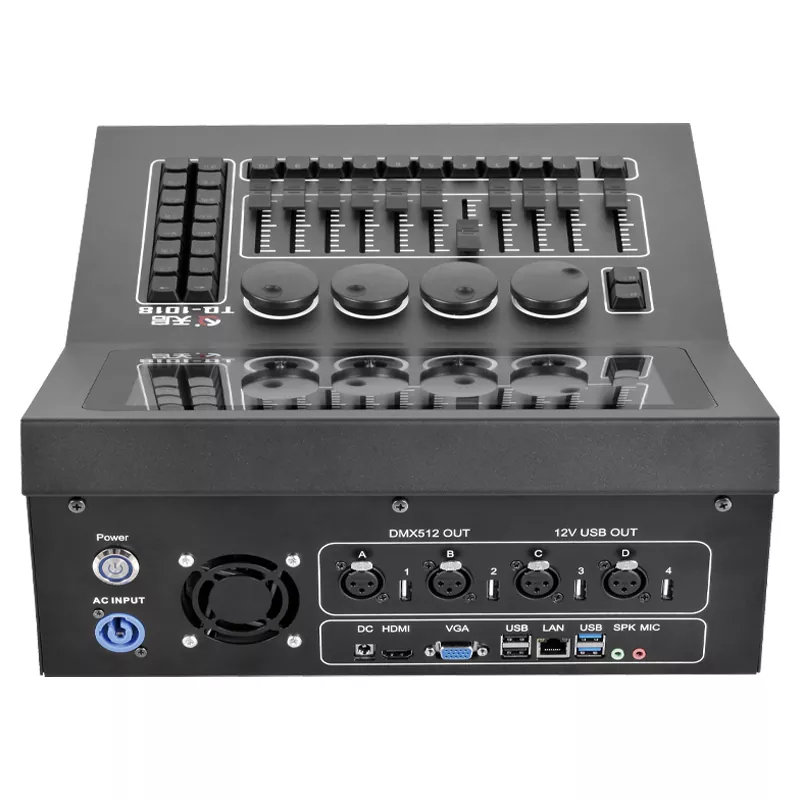

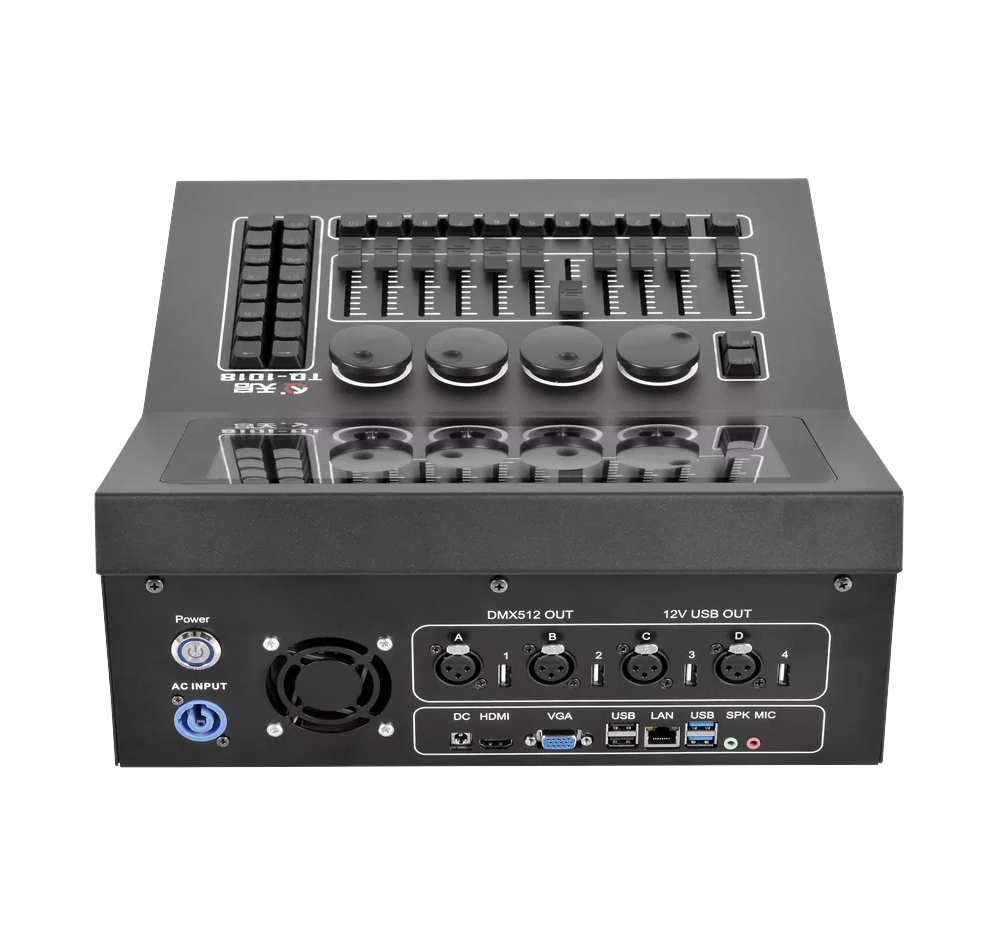

Hardware Parameters
• Equipped with Intel CPU, 128GB Kingston SSD and 4GB RAM for fast and smooth operation.
• Features 4 standard USB interfaces for daily data transmission and device connection.
• Adopts 11.6-inch high-definition ultra-sensitive capacitive touch screen for precise touch control.
• Built-in 1 adaptive Gigabit/100Mbps TCP/IP network port for high-speed signal transmission.
• Comes with 1 high-definition HDMI video interface for screen extension and display output.
• Equipped with 1 VGA video interface to support traditional display device connection.
• Integrated 1 high-quality microphone input port for audio signal collection.
• Built-in 1 high-fidelity audio output port for clear audio playback synchronization.
• Provides 4 optically isolated DMX512 signal outputs for stable anti-interference lighting control.
• 4pcs 12V USB power supply ports support direct power supply for wireless transmitters.
• Faders and dials adopt RGB backlight design with customizable colors for scene identification.
• Built-in UPS power supply supports 60-minute continuous operation after power failure.
• Working Voltage: AC 100-240V, Input Voltage: 12V 5A.
• Adopts 100% brand-new original high-quality brand hardware materials to eliminate refurbished accessories.
Software Parameters
• Equipped with the latest upgraded system for stronger stability, richer functions and optimized parameters.
• Supports free switching of Chinese, English, Portuguese and Traditional Chinese operation interfaces.
• Equipped with 2048 native DMX channels and 4 optically isolated DMX512 output ports.
• Built-in Art-Net network expansion port, expandable up to 4096 DMX channels.
• Supports RDM two-way communication protocol for remote fixture management.
• Supports wireless console control via mobile phones and tablet PCs.
• Configured with 10 playback faders and 10 on-screen button actuators.
• Stores up to 2700 scenes with unlimited single steps for multi-step scenes.
• Controls a maximum of 800 fixtures and saves 200 customized lamp groups.
• Palettes are divided into 15 categories, 200 palettes per category, storing 3000 palettes in total.
• Supports storage of up to 400 independent light show programs.
• Built-in music player realizes one-click light show playback easily.
• Each fixture attribute supports independent timing and curve operation with 43 optional curve modes.
• Provides 60 built-in fixed graphics with freely adjustable parameters.
• Offers 6 fan modes with editable effects via professional setting dialogs.
• Supports quick color selection via color palette, color fader and color preset panel.
• Built-in layout simulation function simulates on-site fixture arrangement for accurate control.
• Customizable menu names and window management improve overall operation efficiency.
• Advanced segment operation algorithm supports segmented operation of attributes, time and graphics.
• Allows direct modification of fixture address codes, output lines and key positions after patching.
• Supports U-disk backup for all show files, fixture libraries and music resources.
• Automatic file saving function ensures safe shutdown at any time.
• Supports power-on password and screen lock password setting to protect data security.
• Custom naming and marking for lamp groups, palettes and scenes for quick search and invocation.
• Adopts universal XML fixture library; editable on console or computer for import and use.
• Supports segment set addition in fixture library for fast attribute selection.
• Wired Art-Net function supports lighting simulator connection for offline practice and programming.
• File interworking and online backup are available for the brand’s touch series consoles.
• Customizable fader backlight colors enhance playback page recognition.
• Supports power-on automatic operation and loop playback for light shows and scenes.
• Compatible with multiple UDP protocol control modes for external system docking.
