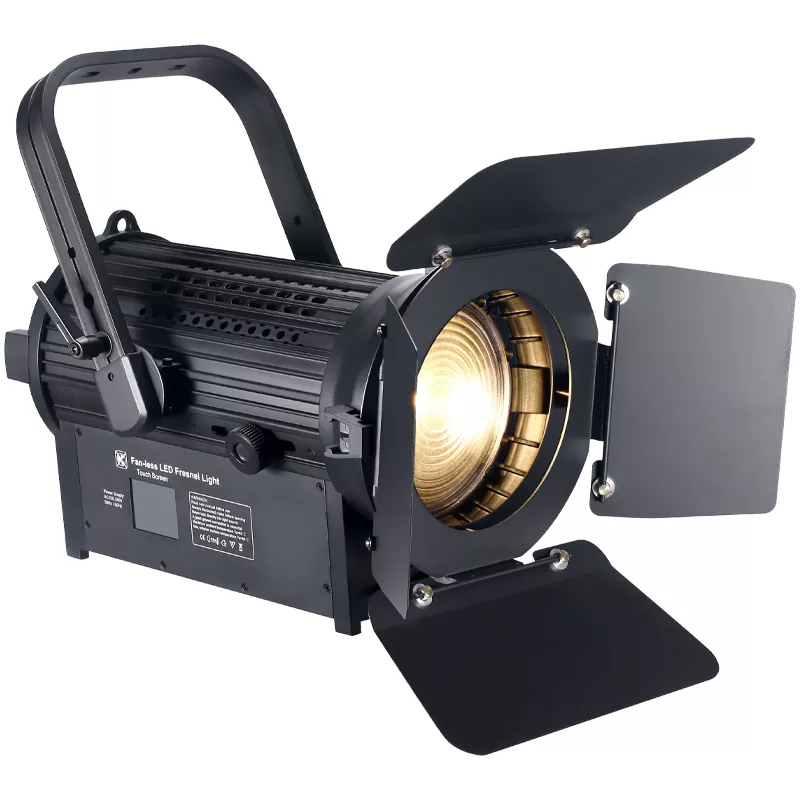

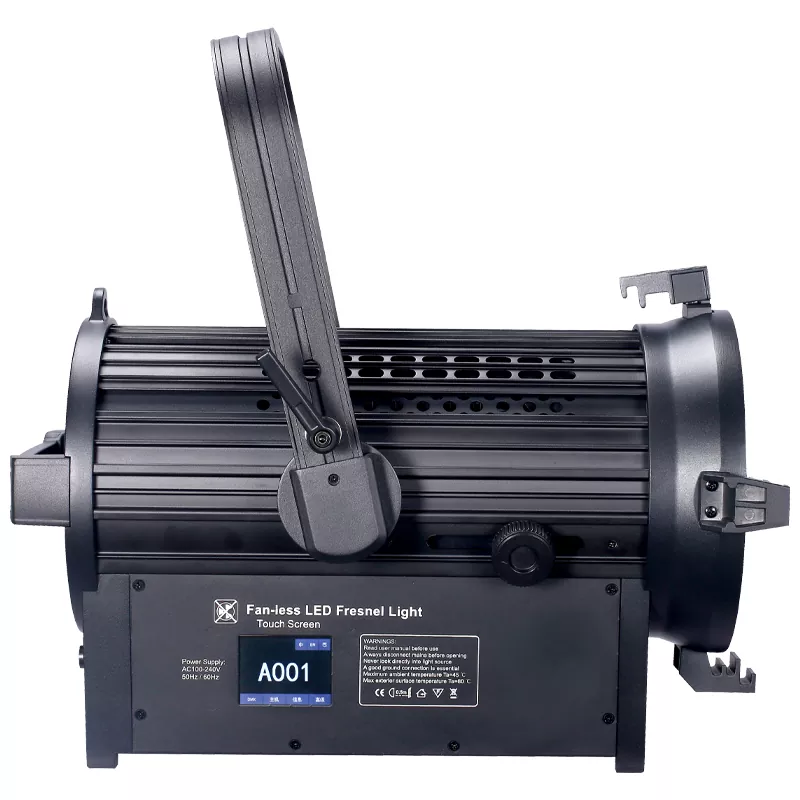

200W 400W COB LED Fresnel Spotlight,15‑50° Manual Zoom,Ra≥90,Fan‑Less,RDM‑DMX

Studio Fresnel Light,Bi‑Color/RGBW/Single‑Color,Barn‑Door,Master‑Slave for Theatre Rental

This 200W 400W COB LED Fresnel Stage Spotlight is high‑performance professional lighting hardware built for theatre performances, TV broadcast studios, photo‑video shooting, corporate events and professional touring‑rental projects across Europe and North America. Designed for indoor stage and studio workflows, this fresnel fixture delivers controllable beam angle and high‑fidelity colour reproduction for interviews, stage fill‑light and multi‑camera recording scenarios.

The fixture comes in 200‑watt and 400‑watt power grades. Users may select single‑color warm‑white / cool‑white variant, bi‑color CW+WW or RGBW 4‑in‑1 multi‑colour COB LED variant. Color rendering index reaches Ra≥90 for natural‑looking skin‑tone and object colour reproduction, with rated LED service‑life exceeding 50000 operating hours. Manual mechanical zoom‑focus adjusts beam angle continuously within 15‑50 degrees to switch between spot and flood output. Adjustable metal barn‑doors are included to shape beam boundaries and control light spill.

Constructed with sturdy black die‑cast‑aluminum housing, the unit adopts fan‑less passive heat‑dissipation structure with zero operational noise, perfectly fitting quiet recording‑studio environments. Built‑in touch‑screen LCD enables local menu setup without external controllers. Supported control modes contain RDM‑compatible DMX512, master‑slave synchronous‑link, standalone auto‑run and sound‑active trigger mode. DMX channel allocation differs by variant:1‑2 channels for single‑color models, 2 channels for bi‑color, 4‑7 channels for RGBW versions. It provides 0‑100 % smooth linear dimming, four selectable dimming curves, and tunable PWM frequency ranging 500‑25000 Hz to suppress camera flicker during video‑recording.

Working temperature ranges from ‑10 ℃ to 40 ℃ with IP20 rating for indoor‑only deployment. When truss‑mounting, secure with qualified C‑clamp and mandatory secondary safety‑chain, keeping minimum 0.5‑metre safe clearance away from flammable surfaces.

Combining multi‑power‑grade and multi‑colour‑variant selection, manual zoom‑focus, fan‑less silent operation, anti‑flicker adjustable‑PWM and rich control protocols, this COB LED fresnel spotlight satisfies strict lighting‑quality requirements for rental‑houses, broadcast studios and theatre production teams throughout Europe and North America.

Voltage :AC100V-240V
Max.power: 200W
LED Power: 200W/400W
Light Color: single WW or CW,bi-color(CW+WW 400W led), RGBW(200W)
LED Life Time: over 50,000 hours
Color Rendering Index(CRI): Ra≥90
Manual Zooming Scale: 15-50°
Dimmer: 0~100% linearly adjustable
Dimming Curve: 4 kinds
Dimming Frequency: 500HZ – 25000HZ optional
With zoom by manual
House Material: Die-casting Aluminum
House Color: Black
Control Mode: RDM/DMX
Control mode: DMX 512, mater and slave, auto running, sound mode
DMX Channel: 1/2CH (Single color), 2CH(2in1) , 4/7CH(4in1)
Environment Temperature: -10~40℃
Cooling system: Fan-less no noise
IP Grade: IP20

Q1: What power grades and LED variants are available for this fresnel?

A1: 200W /400W options;single‑color WW/CW,bi‑color CW+WW,RGBW 4‑in‑1,CRI Ra≥90.

Q2: What zoom‑focus range and included accessories?

A2: Manual zoom focus adjustable 15‑55°;complete metal barn‑door set is supplied.

Q3: What DMX‑channel mapping for different LED configurations?

A3: 1/2CH(single‑color);2CH(bi‑color);4/7CH(RGBW).

Q4: What control modes does this fresnel fixture support?

A4: RDM‑DMX512,master‑slave,auto‑run and sound‑active trigger modes.

Q5: What dimming‑related adjustable parameters?

A5: 0‑100% linear dimming,four dimming‑curves;PWM tunable from 500‑25000Hz anti‑flicker.

Q6: Will this fresnel produce working noise?

A6: Fan‑less passive cooling design,completely no‑noise for quiet recording‑studio environments.

Q7: LED lifespan,IP rating and operating‑temperature range?

A7: LED lifespan＞50000 hours;IP20 indoor‑only;working temp‑10~40℃.

Q8: What installation safety requirements for truss‑hanging?

A8: Use C‑clamp plus secondary safety‑chain;maintain ≥0.5 m clearance from flammable materials.
