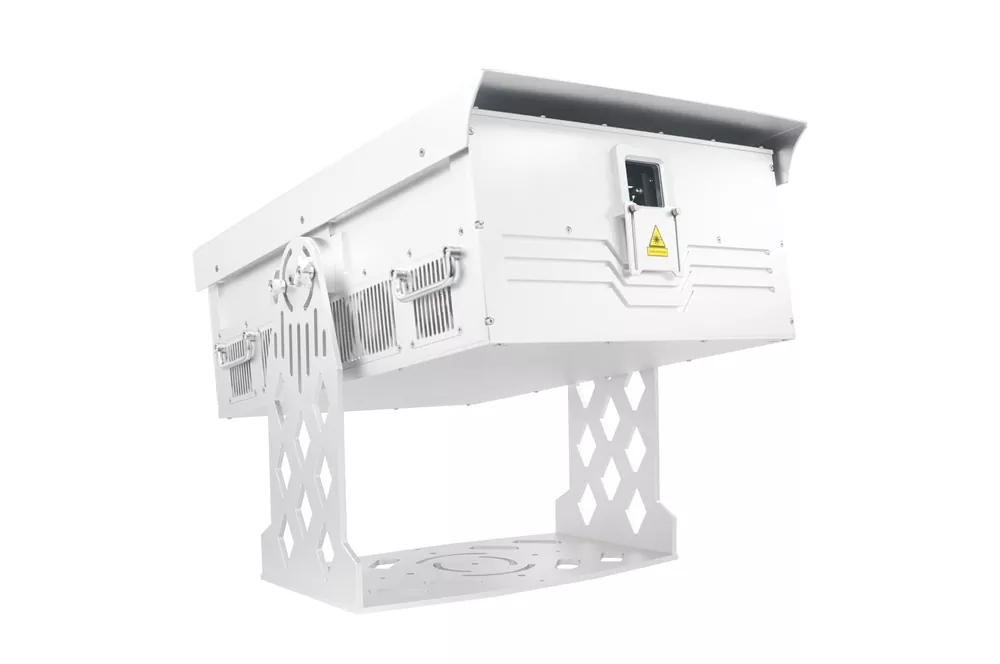

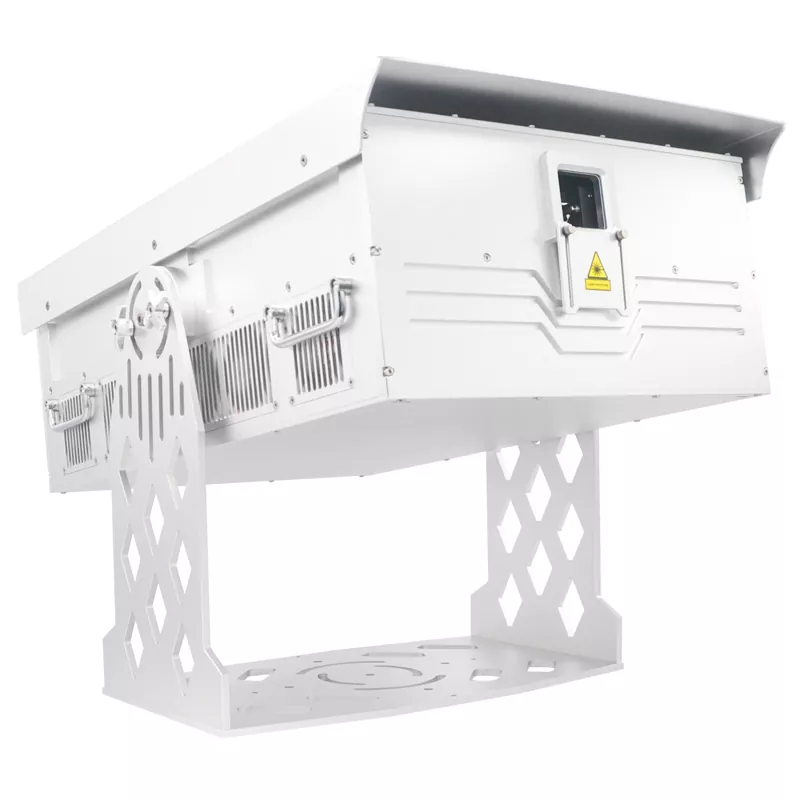

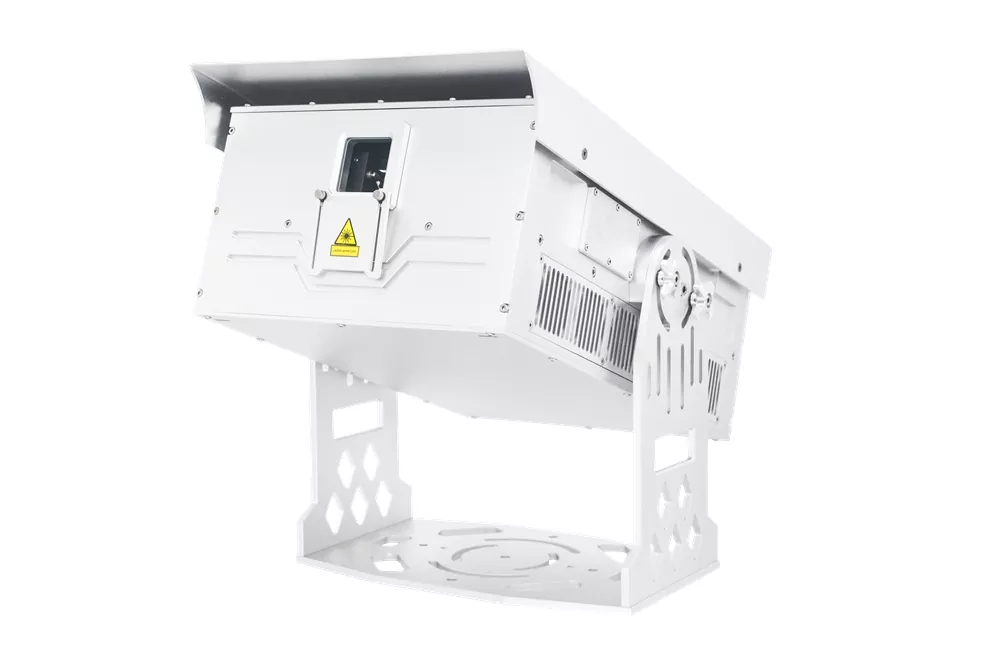

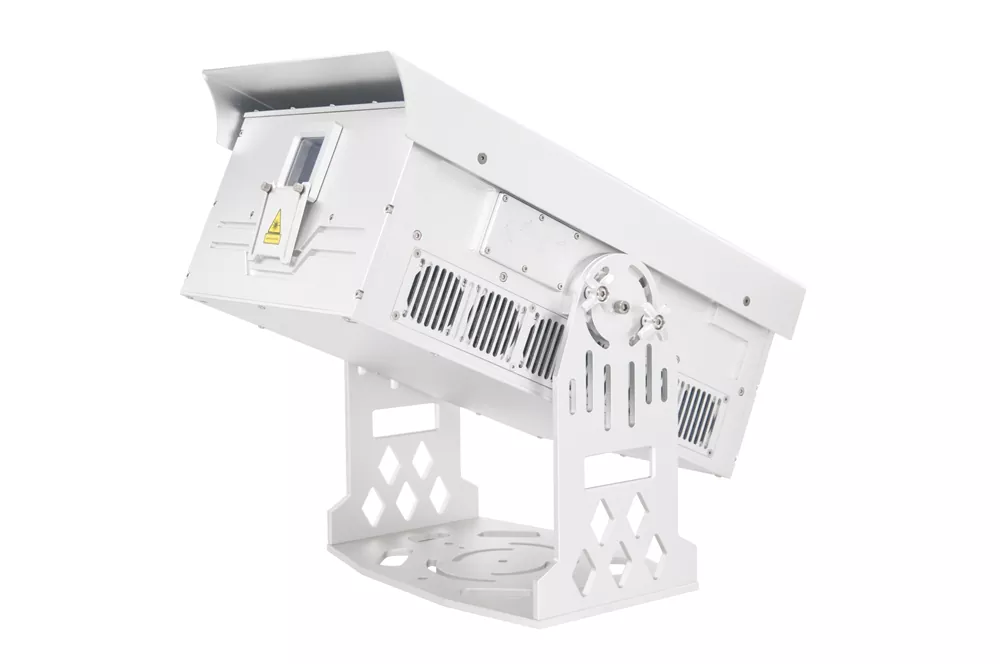

30W RGB FB4 Outdoor Animation Laser IP65 Multi Waterproof Structure Pure Diode 35KPPS 50° Scanner Analog Dimming TF Card RJ45 XLR ILDA DMX ArtNET Multi Safety 800W Stage Equipment High-power Beam Effect Beyond QS Program Support Professional RGB Laser Projector Outdoor Lighting Device for Large Outdoor Shows

30W RGB FB4 Outdoor Animation Laser IP65 Multi Waterproof Structure Pure Diode 35KPPS 50° Scanner Analog Dimming TF Card RJ45 XLR ILDA DMX ArtNET Multi Safety 800W Stage Equipment High-power Beam Effect Beyond QS Program Support Professional RGB Laser Projector Outdoor Lighting Device for Large Outdoor Shows

1.Water proof laser with IP65 rating designs. Multi-waterproof structure design. The housing reaches IP65 protection level (protection against dust and low-pressure jets of directed water for any angle).
2.Made of water proof materials and special process designs to make sure the exposed components (fans, socket, screws, etc.) working well.
3.Full pure laser with more stable performance and longer working life. Diode solid-state (DSS) laser is that when power on, the diode will have laser output directly. It can work properly between -30°C and 40°C.
4.Beam diameter <8mm, divergence <1.5mrad.
5.Made of analog laser modulation. Users can dimmer the laser brightness linearly to makes the laser light more colorful.
6.Operation interface: LCD display.
7.TF Card storage build in program and downloading program.
8.Safety Feature: Single beam protection and shutter protection system (ON and OFF selection choice. It is very important to have these safety function for high power laser), key lock.
9.Safety intelligent: PC control mode will shut off laser automatically without trigger signal. The scanner failure protection will shut off the laser signal and the shutter will block the laser output automatically, so as to avoid the single beam coming out.
10.Applicable for all kinds of large-scale outdoor performances, outdoor lighting projects.

Technical Specification
1.Voltage: AC90~250V/AC, 50HZ/60HZ
2.Rated Power: 800W
3.Waterproof Level: IP65
4.Work Environment: outdoor and indoor, -30 °C ~40 °C
5.Scanner:
The highest quality of optical scanner, high speed and high precision, high stability and long life design.
>35KPPS ILDA @8°. Max scanning angle is 50°. Signal input voltage ±5V
6.Laser: RGB analog modulate, 30KHZ frequency
Red laser 7W @ 638nm. Green laser 10W @ 525nm. Blue laser 15W @ 450nm
7.Beam Diameter<7.0mm, Divergence<1.0mrad
8.Laser level: Class 4 laser
9.Laser life: >10000 hours
10.Working Modes: BEYONG/QS, ILDA, DMX-512, Art NET, Autopaly
11.Graphics & Effects: Beam show and animated graphics show patterns
12.TF card: 32GB, build in program, and downloading program
13.Play Program Format: .FB4 laser show document downloading for BEYOND/QSS
14.Safety Configure: Security protection, Laser key switch, laser remote interlock, SFS Control(scanner fail safety control ON/OFF), flying rings bolt

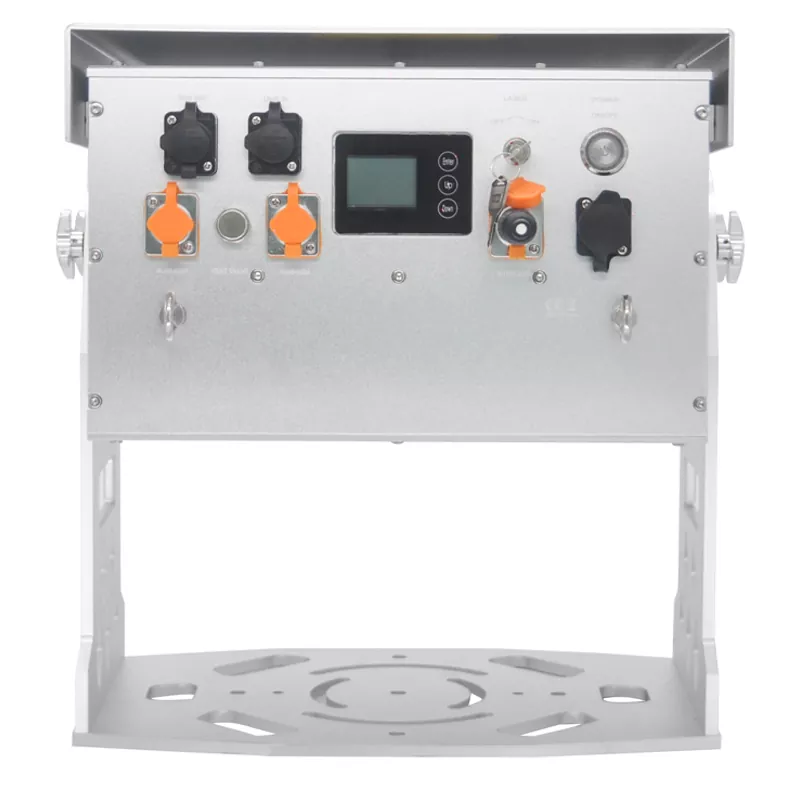

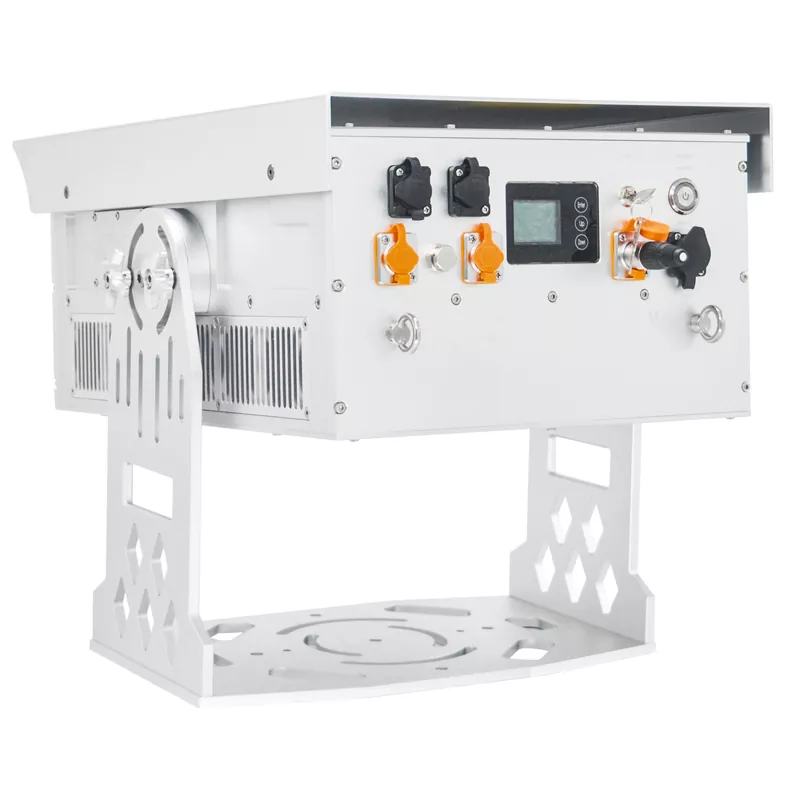

15.Interface:
RJ45 Ethernet LAN port for BEYONG/QS;
3 pins XLR jack for DMX;
RJ45-ILDA interface for PC control (RJ45 cat cable is more convenient to get and wire than ILDA cable. There is no signal attenuation even after 300 meters transmission in the experiments)
16.Machine dimension: 560(L)*350(W)*220(H)mm
