32‑72 Channel Compact DMX512 Controller,Portable Lighting Console with Power‑Fail Memory for Stage & DJ Shows

Mini DMX512 Console,Supports Chase Program Editing,Blackout Function for Disco,KTV & Rental Projects

This 32‑72 channel compact dmx512 controller is lightweight portable lighting control console built for small‑to‑medium stage performances, DJ gigs, disco venues, KTV rooms, bars and mobile event‑rental projects across Europe and North America. Designed for on‑site field deployment, this compact DMX512 console brings basic‑to‑intermediate lighting programming capability without bulky full‑size professional desks, well‑suited for rental technicians, mobile DJ operators and small‑venue installers.

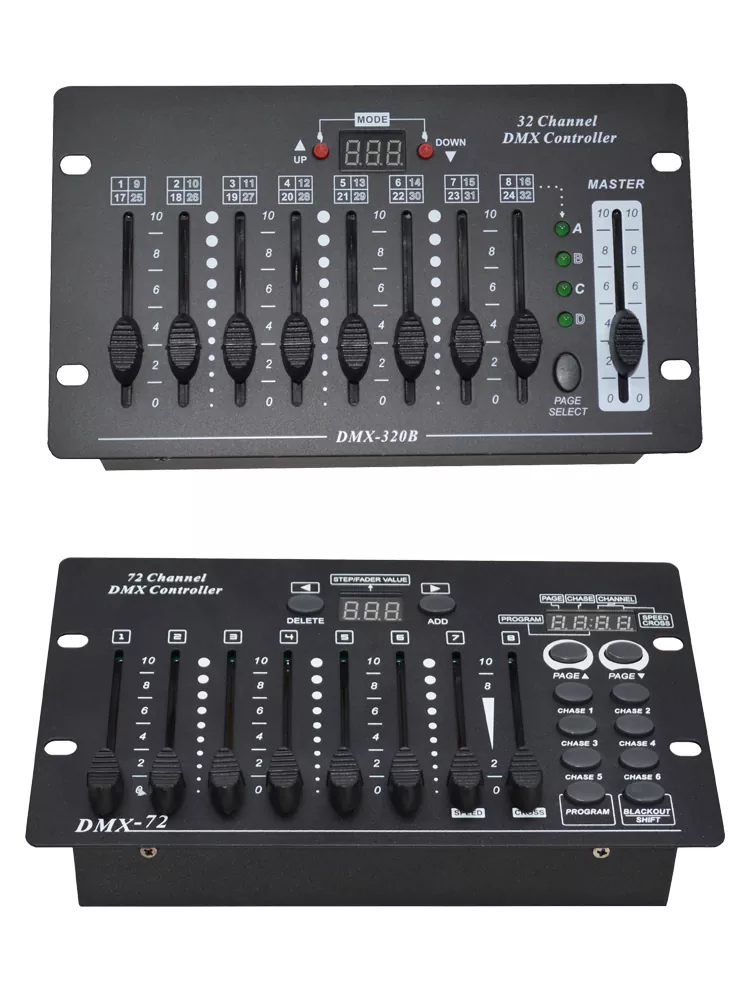

Two functional variants are offered:32‑channel version and 72‑channel version. Both share identical outer dimension 232×135×55 mm and adopt compact lightweight housing for easy transport in equipment bags. Power‑fail memory is equipped for both models, which preserves channel values or chase program parameters when power is suddenly lost, automatically restoring previous working status after power resumes and avoiding repeated manual reset work during live shows.

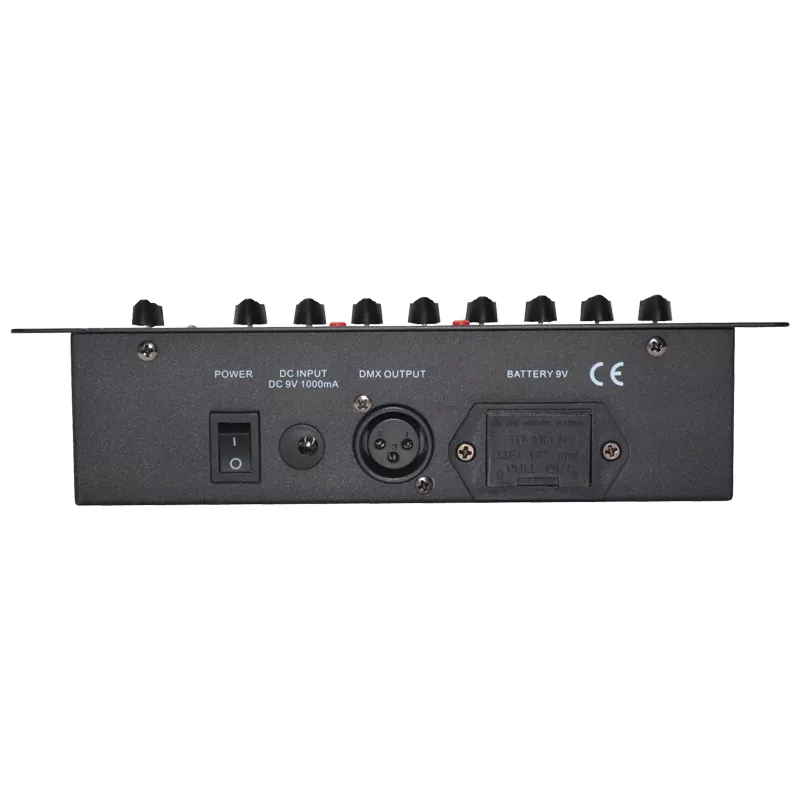

Both units feature LED digital display screen, clearly showing fader values, DMX starting address, page number or program step status for quick parameter checking. Signal output uses standard 3‑pin female DMX‑512 connector, compatible with universal XLR signal cables to connect various DMX‑compliant stage lights, laser fixtures and effect lighting devices. For power supply, both support DC9V adapter input; additionally the 32‑channel model can work with common PP3 9V battery, enabling instant operation at outdoor temporary sites without mains power source.

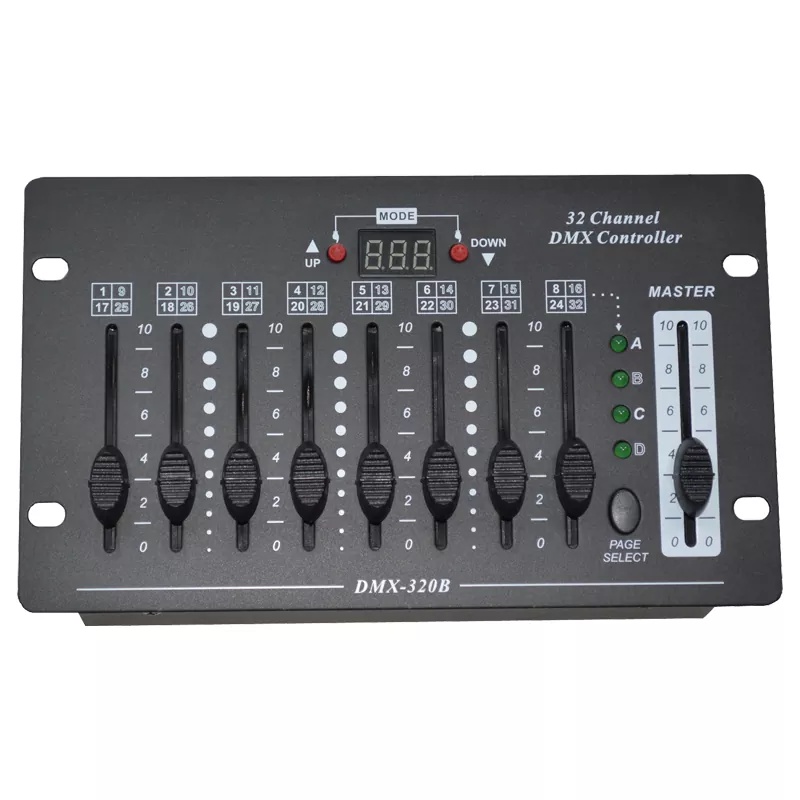

For the 32‑channel console, eight physical faders are combined with page‑up and page‑down selection switch to expand controllable channels up to 32 total. A master fader provides global adjustment for all channel output levels, convenient for overall brightness‑control of whole lighting rig. Users can freely set DMX starting address to match fixture layout.

The 72‑channel model upgrades to richer programming functions. Operators can create and store up to six chase programs, each chase containing maximum forty editable steps. It supports manual mode and auto‑run mode, with adjustable fade time and running speed. A dedicated blackout button can instantly shut down all channel output for scene transition or safety purpose. When powered on, it can automatically run the last‑used chase program.

Running from universal DC9V power source, these consoles fit event power‑supply conditions in European countries and United States. They are intended for indoor event use. Operators should follow standard DMX wiring specification and keep controller away from moisture and heavy impact. Offering portable form factor, practical memory function and differentiated channel‑programming capability, this DMX lighting console series is a cost‑effective control solution for small‑scale live‑entertainment lighting projects throughout Europe and North America.

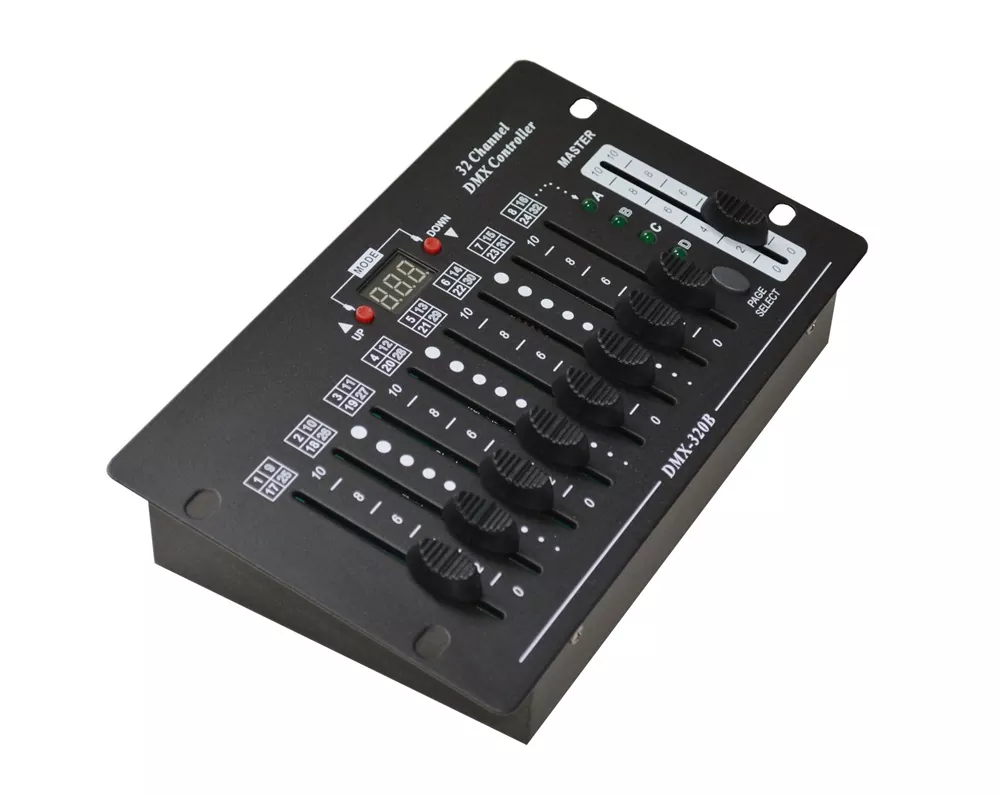

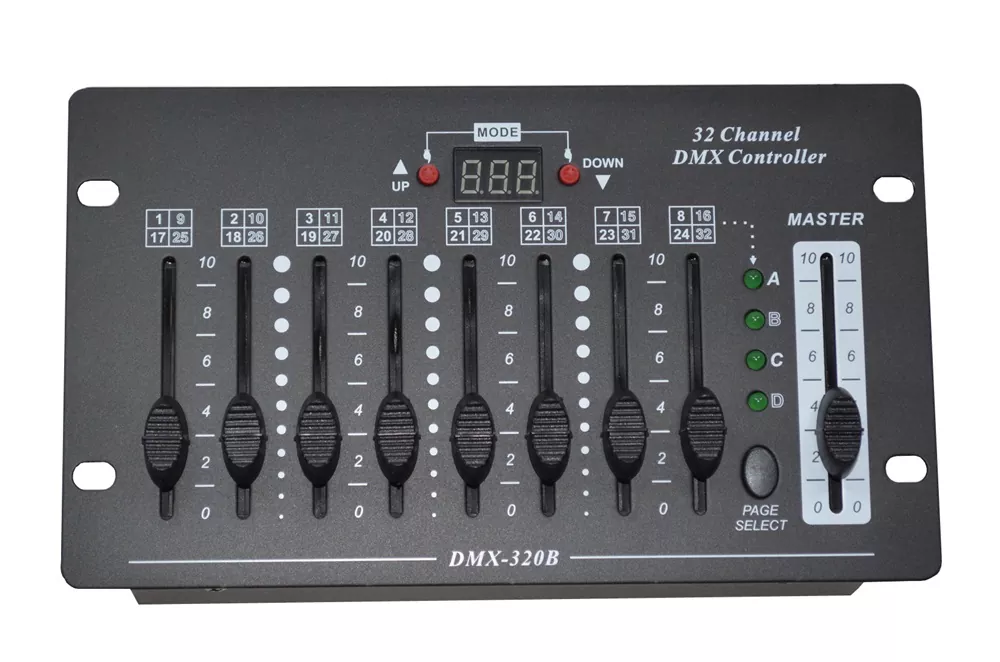

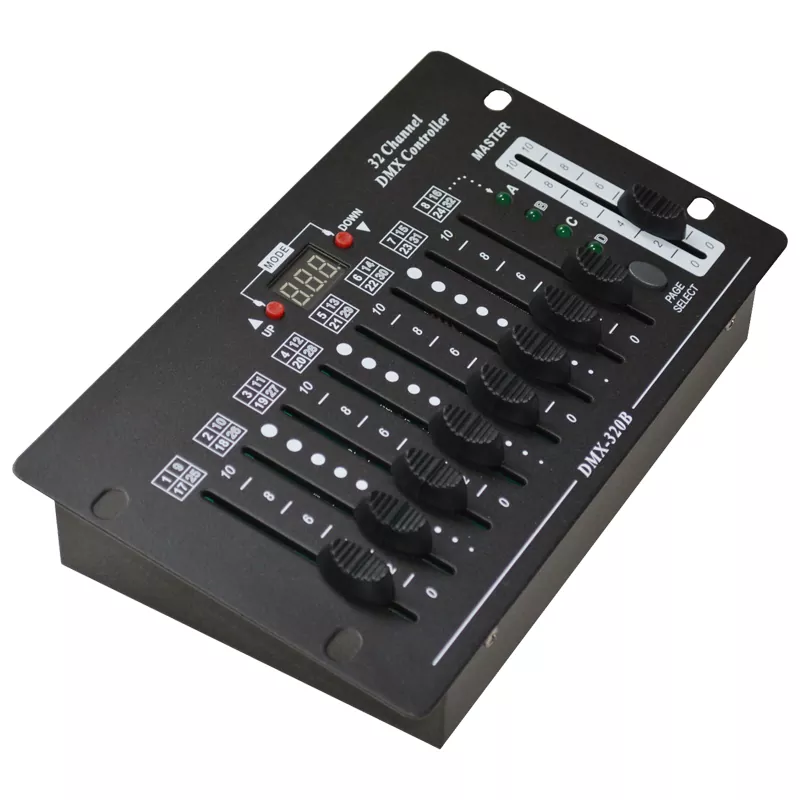

1351–32 Channel DMX Controller

Compact and portable device
DC9V adapter and simple build-in battery for instant and convenient use
Master slider can adjust the values of 1-32 channels and provides total control towards overall DMX output
Faders 1-8 provide direct control with Page UP/DOWN to get extended 32 channels
Power failure memory
LED fader numerical display
DMX address code can be set free distribution

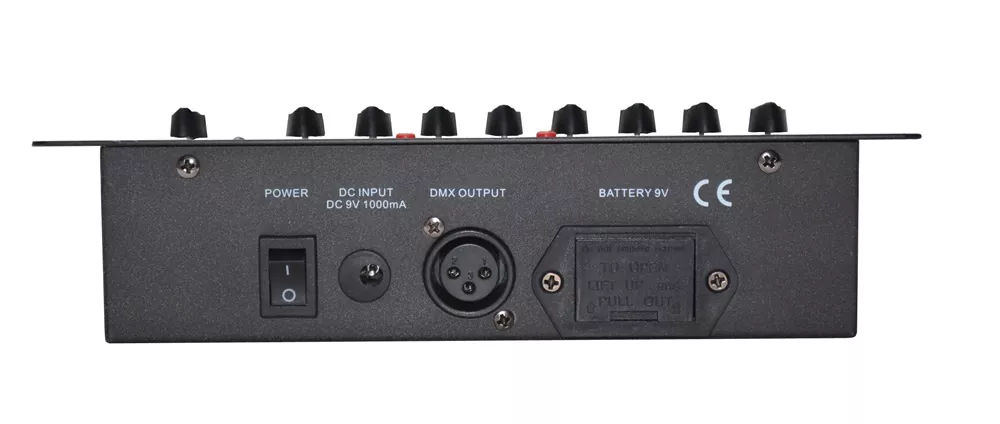

3Pin female DMX connector
DC9V adapter and battery
Battery type: PP3 9V
Dimension: 232mm×135mm×55 mm
Net weight: 0.9KG

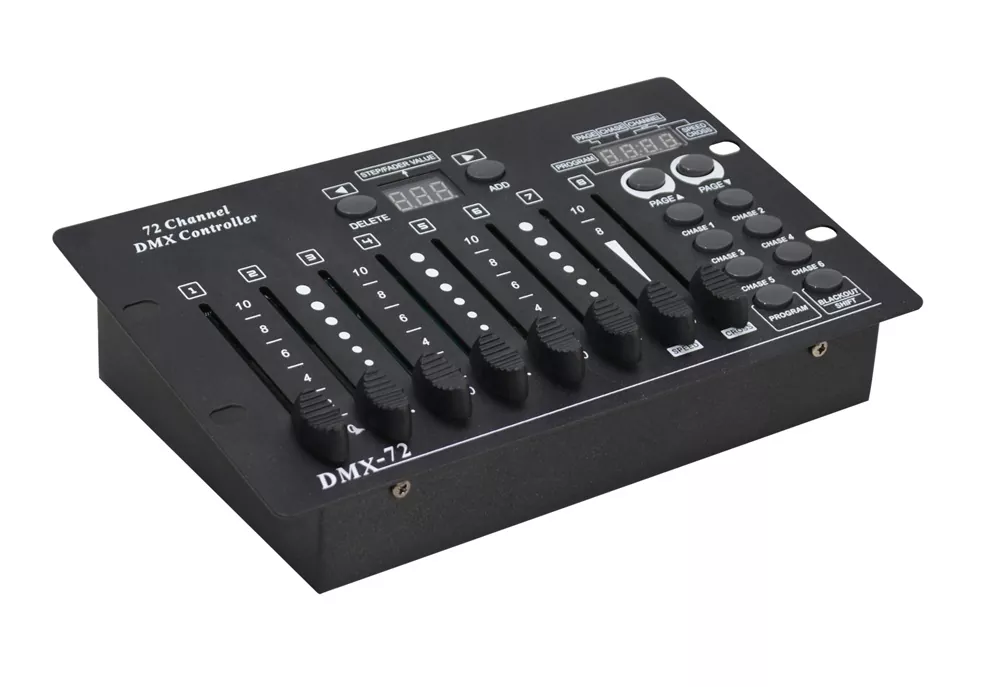

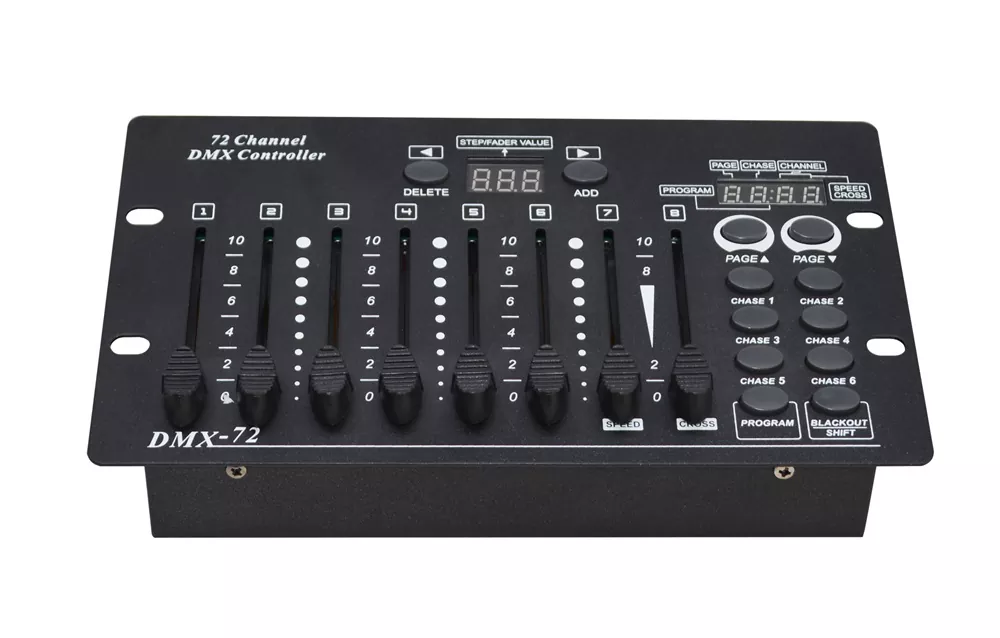

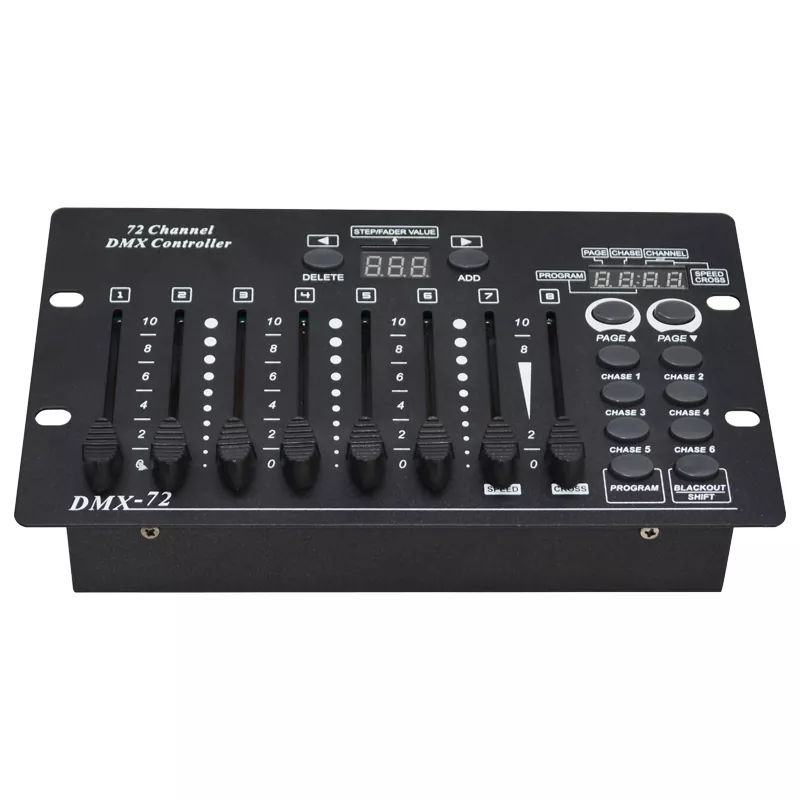

1355–72 Channel DMX Console

Compact and portable device
The BLACKOUT button can turn off the 1-72 channel numerical output
Can edit and run 6 programs, each program up to 40 steps
Faders 1-8 can adjust the channel value of the lamp.It can be used as a speed and a cross at runtime
The last switch can automatically run the last Chase
LED display fader value,step, page and channel order
Power failure memory

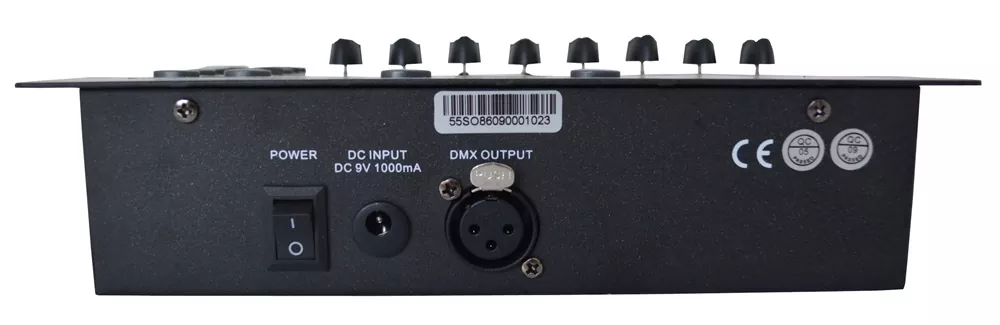

3Pin female DMX connector
DC9V adapter
Dimension: 232mm×135mm×55 mm
Net weight: 1KG（not include AC adaptor）

Q1: What channel versions are available for this lighting console?

A1: Two variants:32‑channel and 72‑channel for different‑scale lighting setup demands.

Q2: What power supply options do these controllers support?

A2: DC9V power adapter; the 32‑ch model also accepts PP3 9V battery for field‑use without mains power.

Q3: What does power‑fail memory function do?

A3: It saves channel settings or chase programs, restoring previous status after unexpected power cut‑off.

Q4: How to reach full channel quantity on the 32‑channel model?

A4: Operate 8 physical faders together with page‑up / page‑down switch to access total 32 channels.

Q5: What extra features does the 72‑channel console have?

A5: Supports editing 6 chase programs(max 40 steps each), blackout function and auto‑run last‑saved chase.

Q6: What physical size and weight of these two console models?

A6: Both dimension 23213555mm;0.9Kg for 32‑ch,1.0Kg for 72‑ch(excluding power adapter).

Q7: What kind of devices can I control with this DMX512 controller?

A7: DMX‑512 compliant stage lights,laser fixtures,par lights,effect lights for indoor events.

Q8: What connector is used for DMX signal output?

A8: Equipped with standard 3‑pin female DMX connector for XLR signal cable connection.
