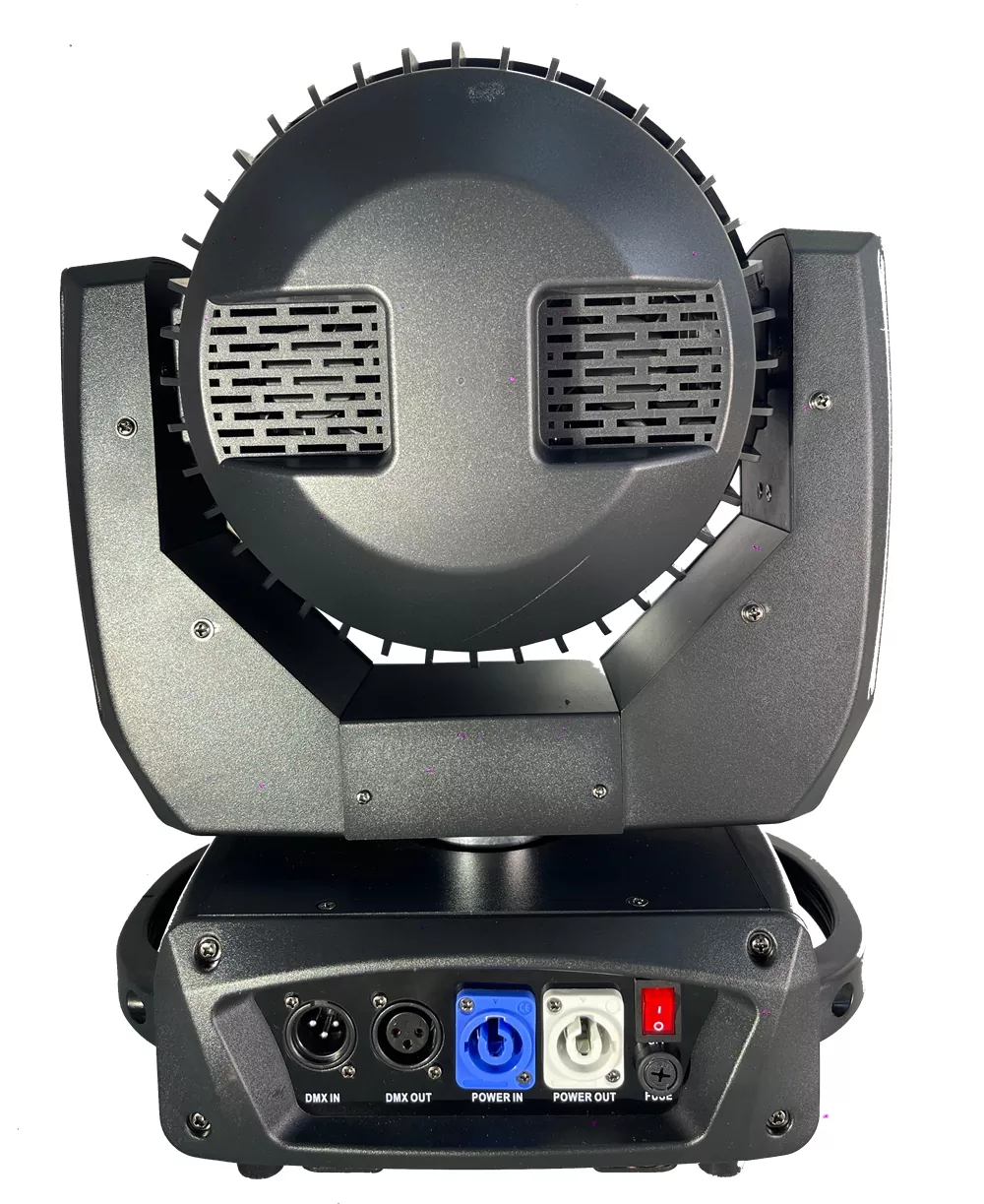

350W RGB Full‑Color Laser LED Bee‑Eye Moving Head Light

8W RGB Laser Moving‑Head,7×40W RGBW LED Bee‑Eye,540°Pan 270°Tilt,DMX Voice‑Activated Auto‑Run

This 350w rgb full color laser led bee eye moving head light is hybrid laser‑LED indoor stage moving‑head fixture built for nightclubs, bars, concert venues and global touring‑rental fleets. It integrates 8‑watt RGB full‑color laser source and seven 40‑watt high‑brightness RGBW bee‑eye LED beads plus 38pcs 5050 RGB LED strips with total 350‑watt rated power. Equipped with 30KPPS high‑speed galvanometer scanning system supporting TTL analog modulation, it stores 256 pre‑programmed laser animation patterns with ±20‑degree scanning angle. Two‑phase 42‑stepper‑motor drive delivers 540‑degree horizontal pan and 270‑degree vertical tilt rotation with adjustable motor speed, focus and rotation parameters. Three DMX channel options (36CH /45CH /73CH) are selectable, supporting DMX512 console control, voice‑activated trigger and auto‑run standalone mode. Forced fan cooling maintains stable performance under 0‑35℃ indoor ambient‑temperature environment.

Nightclub operators and rental crews often seek combined laser and bee‑eye LED moving‑head units, instead of deploying separate laser projectors and bee‑eye wash fixtures which occupy extra truss space and increase wiring workload. Many ordinary hybrid laser‑LED moving‑heads suffer low‑speed galvanometer, insufficient pre‑loaded laser patterns or limited channel‑mode choices. This 350W rgb full‑color laser led bee‑eye moving head light addresses those real‑world pain‑points for indoor entertainment‑venue and touring‑rental projects.

This hybrid stage fixture merges RGB full‑color laser module and multi‑head bee‑eye LED optical system under one moving‑head housing. The laser section delivers total 8‑watt RGB laser power with R3w‑red, G2w‑green and B3w‑blue laser diodes. It uses industrial‑grade 30KPPS galvanometer scanning system with TTL analog‑modulation signal input, supporting rich laser‑graphic performance. 256 built‑in laser animation patterns are stored inside hardware, together with comprehensive DMX special‑effect functions: pen‑break, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color‑switching and graphic resizing, which greatly reduce console programming time for event load‑in.

The LED part consists of seven 40‑watt high‑brightness RGBW bee‑eye LED beads, matched with 38 pieces of 5050 0.2W RGB light strips. It can output sharp multi‑beam bee‑eye aerial‑beam visuals and soft RGB colour‑wash atmosphere effects simultaneously, allowing designers to mix laser‑graphics and LED multi‑colour lighting in one fixture. Two‑phase 42‑type stepper motors drive mechanical movement, achieving 540‑degree horizontal pan and 270‑degree vertical tilt rotation. Operators can adjust motor speed, focusing parameter and pattern‑rotation speed via DMX channel values for different‑rhythm show scenes.

Three alternative DMX channel configurations:36CH,45CH and 73CH satisfy different programming‑depth demands. Users can select low‑channel mode for fast on‑site setup, or switch to high‑channel 73‑channel profile to unlock full‑detail laser‑graphic and LED‑pixel control. Beyond DMX‑console control, voice‑activated sound‑response and auto‑run pre‑programmed show modes support standalone working without external lighting controller. Forced‑air fan cooling‑system stabilizes internal component temperature. Operators must keep operating‑environment temperature within 0‑35℃ and maintain dry dust‑free indoor‑condition, to slow laser‑source power‑attenuation and extend whole‑fixture service‑life.

For rental‑house inventory‑updating and nightclub‑bar fixed‑installation projects, this integrated laser‑bee‑eye moving‑head combines animated laser‑graphics and colourful bee‑eye‑beam‑wash effects. It helps B‑end lighting professionals cut truss‑mount‑fixture‑quantity and simplify wiring layout for bars, nightclubs, concerts and commercial‑promotion indoor‑live‑events.

Voltage: AC110-220V 50-60Hz
Rated power: 350W
Laser color: RGB full-color
Laser power: RGB 8W
Laser source: R3w/638nm G2w/525nm B3w/447nm
Laser pattern: 256 laser animation patterns
LED light source: 7 40 watt LED high brightness beads “RGBW full-color”
LED strip: 38 pieces, 5050 * 0.2W
Lamp strip color: RGB * 0.2W LED beads
Modulation signal: TTL modulation (analog modulation)
Scanning system: galvanometer scanning 30KPPS
Scanning angle: plus or minus 20 degrees
Stepper motor: 2 two-phase 42 motors
Motor speed: 0-255 “Speed, focusing, rotation”
Horizontal: 540 degrees Vertical: 270 degrees
Control mode: DMX512, voice control, self-propelled
Control channels: 36/45/73 DMX512 control channels
DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.
Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp
Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc
Cooling system: fan forced cooling of Shaking head laser+LED dye light

Q1: What light‑source composition and total rated power of this hybrid moving‑head?

A1: 8W RGB full‑color laser source,7pcs 40W RGBW bee‑eye LED and 38pcs 5050 RGB strips;total rated power 350W.

Q2: What galvanometer scanner specification and built‑in laser pattern quantity?

A2: 30KPPS high‑speed galvanometer scanner with ±20° scan angle; pre‑loaded 256 laser animation graphic patterns.

Q3: What modulation mode and mechanical movement parameters?

A3: Adopts TTL analog modulation;540° horizontal pan,270° vertical tilt,adjustable motor,focus and rotation speed.

Q4: Which DMX channel modes and available operation modes?

A4: Three switchable DMX profiles:36CH,45CH,73CH;supports DMX512, voice‑activated and auto‑run standalone mode.

Q5: What special DMX laser‑effect functions does this fixture provide?

A5: Single‑pattern playback plus pen‑break,strobe,rotate,move,scroll,segment,gradient‑draw,color‑change and resizing effects.

Q6: What cooling‑solution and allowable working‑temperature range?

A6: Adopts forced fan cooling system;working ambient‑temperature must keep within 0‑35℃ dry dust‑free indoor environment.

Q7: What are suitable application‑scenarios for this laser‑bee‑eye moving‑head?

A7: Optimized for nightclub,bar,concert,commercial promotion event and other indoor entertainment‑venue deployments.

Q8: Are there key usage notes for laser‑equipped stage moving‑head?

A8: For indoor‑use only;avoid direct human‑eye laser exposure;use in dry dust‑free space to reduce laser‑source power attenuation.
