400W LED BSW Framing Moving Head Light,8 Cutting Blades,CMY+CTO

8‑Blade Framing BSW Moving Head Light,400W LED Module 36‑DMX‑Channel RDM Fixture For Theater Rehearsal Hall Live Production

This 400w led bsw framing moving head light is all‑in‑one beam spot wash framing fixture built for theatre technicians, studio crews and global touring‑rental fleets. Equipped with 400W high‑brightness LED module, rated 500W power consumption and variable 4‑42° motorized zoom. 540° pan and 270° tilt with 16‑bit fine resolution plus photoelectric auto‑correction after collision. 36 standard DMX channels, supports DMX512,RDM,auto‑run,master‑slave and sound‑activated trigger. Built‑in CMY‑CTO mixing system, dual prism, two independent gobo wheels and 8‑blade framing cutter,0‑20Hz multi‑mode strobe and 0‑100% linear dimming. Bilingual 180‑degree flip‑able LCD screen, smart fan thermal management, IP20 indoor‑only deployment.

Many theatre and rental lighting teams face real‑world limitations. Separate beam,spot and framing units raise truss load and cabling workload. Many moving‑head fixtures lack physical collision auto‑reset and multi‑functional framing blades for precise beam shaping. The 400w led bsw framing moving head light solves those B‑end pain‑points by combining beam spot wash and framing cutting capability into one compact indoor moving‑head hardware.shop‑category‑led‑moving‑head‑lights

Optical & Mechanical Advantages of The 400W LED BSW Framing Moving Hed Light

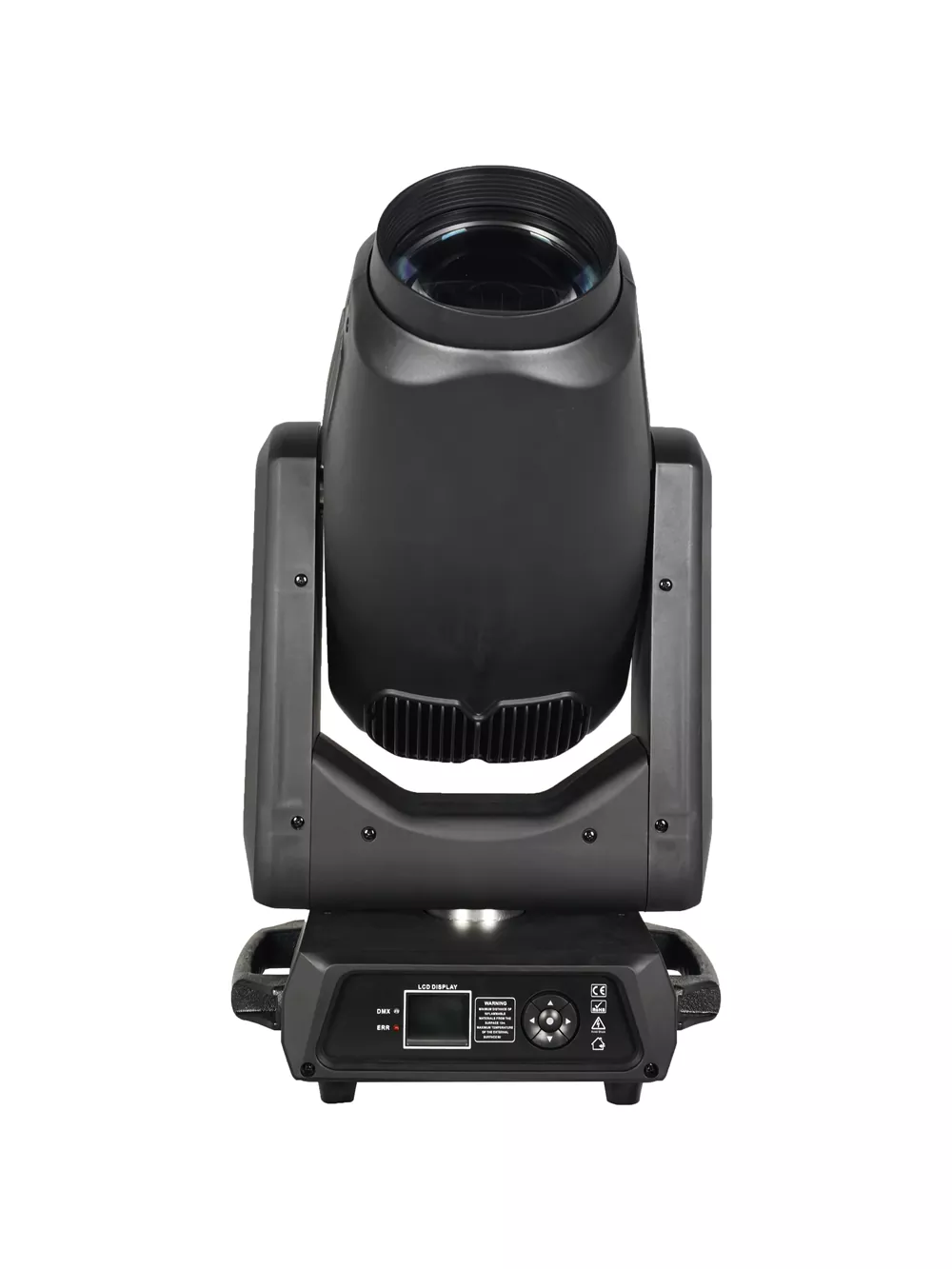

At optical core, the 400w led bsw framing moving head light uses a high‑power 400W LED light source with motor‑driven 4‑42‑degree zoom range. It integrates CMY stepless mixing plus linear CTO for accurate colour‑temperature adjustment.

Two independent gobo wheels deliver static and rotating pattern effects with configurable shake and scroll speed. Dual‑prism optics enrich multi‑layer beam textures. The core highlight lies in eight controllable framing blades, which cut light into rectangles, diamonds, triangles or any custom angles for accurate stage area mapping. 0‑100% linear frost softens hard edges. 16‑bit high‑resolution 540° pan and 270° tilt movement comes with photoelectric auto‑correction.

The fixture restores correct home position after accidental physical impact. Bilingual flip‑capable LCD simplifies menu setup for inverted hanging installation. Smart fan system regulates cooling speed and triggers power derating for thermal protection under heavy‑load working status. This fixture is IP20 rated and for indoor‑only deployment.

Control & Real‑World Deployment for The 400W LED BSW Framing Moving Hed Light

It adopts 36 standard DMX channels, supporting RDM remote device management for on‑network parameter editing without climbing trusses. Beyond DMX console control, users can select auto‑run built‑in shows, master‑slave multi‑unit sync or music‑triggered sound‑activated mode. 0‑20Hz multi‑pattern strobe and full‑range 0‑100% linear dimming expand creative options for live performances.

Technicians select zoom range according to venue depth; narrow zoom for long‑throw beam effect, wide zoom for large‑area wash output. When installing overhead, utilize screen flip function for convenient menu operation.

For rental‑house high‑end moving‑head inventory expansion and theatre‑studio fixed‑installation‑projects, this 400w led bsw framing moving head light delivers integrated BSW framing optics, rich pattern‑prism resources, collision auto‑reset and RDM capability. It provides B‑end lighting professionals an all‑in‑one shaping moving‑head solution for theatre, studio and indoor live‑event productions.

Voltage: AC100‑240V, 50‑60Hz
Rated Power: 500W
Light Source: 400W High‑brightness LED Module
Beam Angle: 4‑42°
Strobe: 0‑20 times/s with multiple strobe effects
Pan Scan: X‑axis 540°, 16Bit
Tilt Scan: Y‑axis 270°, 16Bit
DMX Channels: 36 Standard DMX Channels
Dimming: 0‑100% Linear Dimming
Control Modes: DMX512, RDM, Auto‑run, Master‑Slave, Sound‑activated
Color Wheel: 1 color wheel, 6 colors + White + Linear CTO, half‑color, bidirectional flow, color transition & half‑color rainbow effect
Fixed Gobo Wheel: 1 fixed gobo wheel, 9 gobos + White, each gobo with shake effect; forward/reverse speed‑adjustable scrolling effect
Rotating Gobo Wheel: 1 rotating gobo wheel, 7 selectable gobos + White, each gobo supports bidirectional rotation & shake, forward/reverse speed‑adjustable scrolling effect
Linear CMY + CTO function, stepless color mixing
Dual Prism Effect: 1 Tri‑prism + 1 Linear Prism
Cutting System: Controllable beam cutter with 8 cutting blades, delivers triangular, rhombus, rectangular & arbitrary‑direction shaped beams
Frost: 0‑100% uniform linear soft frost effect
Display: LCD screen, English‑Chinese switchable, smart 180° flip‑invert display
Smart Fan Speed Control: Built‑in auto fan speed regulation; auto power derating under high temperature, low‑speed fan operation
Auto Correction: Photoelectric reset system for pan & tilt, auto error correction after accidental collision
Housing Material: High‑temp fire‑resistant engineering plastic injection‑molded housing
IP Rating: IP20
Product Dimension: 607*317*246mm
Weight: 17.5kg

Q1: Light‑source specification,rated power and IP grade?

A1:400W high‑brightness LED module,500W rated power;IP20,designed strictly for indoor‑only use.

Q2: Pan tilt performance and auto‑correction function?

A2:540° pan,270° tilt with 16‑bit fine control;photoelectric reset automatically corrects position after collision.

Q3: What optical modules are integrated inside this fixture?

A3:CMY plus linear CTO,dual prism,two gobo wheels,8‑blade framing cutter,0‑100% adjustable frost,4‑42° zoom.

Q4: DMX channel count and available control protocols?

A4:36 standard DMX channels;Supports DMX512,RDM,auto‑run,master‑slave,sound‑activated.

Q5: What special features does the local LCD screen provide?

A5:English‑Chinese switchable,180° flip‑invert for upside‑down hanging truss installation.

Q6: What benefit comes with intelligent fan thermal control?

A6:Auto adjust fan speed;trigger power derating to protect hardware under excessive high‑temperature conditions.

Q7: What beam shapes can the 8‑blade framing cutter produce?

A7:Triangular,rhombus,rectangle and freely custom‑angled beam outlines for precise stage mapping.

Q8: Which application scenarios fit this framing moving‑head best?

A8:Theatre,TV studio,concert touring,corporate events and indoor rental lighting projects.
