60W Mini COB Fresnel Spotlight,35‑50° Manual Zoom,WW/CW/2IN1/4IN1,Ra≥95

High‑CRI Mini Fresnel Light,50000H LED Life for Theatre Interview Shooting

This 60w mini manual zoom cob led fresnel spotlight ra≥95 is compact lightweight IP20‑rated indoor fresnel fixture built for small‑and‑medium‑scale theatre performances, television interview studios, corporate stage events and professional event‑rental projects across Europe and North America. Thanks to its small‑volume lightweight build, this mini fresnel fits limited‑space venues, interview sets and touring‑rental workflows, delivering soft, smooth fresnel beam quality.

This fresnel spotlight adopts imported 60W COB LED light‑source, offering multiple colour configurations: single warm‑white, cool‑white, two‑in‑1 tunable‑white and four‑in‑1 multi‑colour variant. It achieves ultra‑high colour‑rendering index Ra≥95 to reproduce natural skin tones for interview subjects and theatrical character lighting. Rated LED service lifespan exceeds 50000 hours, lowering long‑term lamp‑replacement and maintenance costs for rental houses and small venue operators.

It features mechanical manual zoom covering beam‑angle from 35° to 50°, paired with hand‑operated manual focus knob to fine‑tune beam sharpness. Four selectable dimming curves are available, and dimming frequency can be configured within 500‑25000Hz to achieve flicker‑free shooting performance for film‑and‑TV cameras. Variable‑speed strobe effect ranges 1‑25 flashes per second for dynamic stage moments. Different DMX channel personalities match respective colour hardware:1/3‑channel for single‑color, 2/5‑channel for 2‑in‑1, 4/8‑channel for 4‑in‑1. Supported working modes contain RDM/DMX512 console control, master‑slave synchronous‑linkage, built‑in auto‑run program playback and sound‑active mode responding to ambient music rhythm.

Robust black die‑cast aluminum housing keeps fixture lightweight for frequent installation and relocation. Low‑noise fan cooling system guarantees stable performance within‑10℃‑40℃ ambient‑temperature environment. This fixture is IP20 rated strictly for indoor‑site deployment. Universal AC100‑240V 50‑60Hz wide‑voltage power input adapts to diverse mains‑grid standards throughout European nations and United States. Four‑leaf barn‑door shutters are equipped for beam‑masking and spill‑light control.

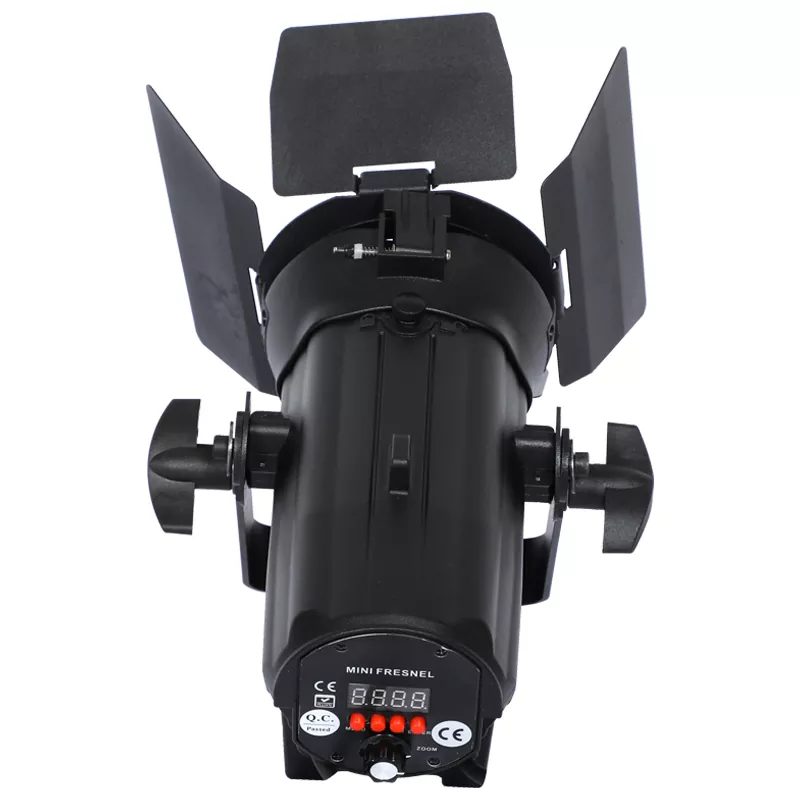

Net weight is 2.5 kg and gross weight reaches 3.5 kg, packed within individual 325×245×185 mm carton. When performing overhead truss‑mount suspension installation, secondary safety‑cable anti‑fall attachment must be fitted. Keep ventilation openings unobstructed for effective heat dissipation. Featuring compact lightweight construction, Ra≥95 high‑CRI output and flexible manual zoom‑focus adjustment, this 60W mini COB fresnel spotlight provides soft subject‑lighting solution for theatre, interview‑shooting and small‑event projects throughout Europe and North America.

Voltage :AC100V-240V 50-60Hz
Max.power: 60W
Led power: 60W
Light Color: single WW / CW / 2in1 / 4in1
LED Lamp: Imported LED
Color Rendering Index(CRI): Ra≥95
LED Life Time: over 50,000 hours
Beam angle: Zoom from 35°to 50°
Dimmer: 0~100% linearly adjustable
Strobe: 1-25times/sec
Dimming Curve: 4 kinds
Dimming Frequency: 500HZ – 25000HZ optional
Focus: Can be adjusted by hand
Light body: Die-casting Aluminum
Body color: Black
Feature of housing: Small volume, lightweight
Control System: RDM/DMX512, mater and slave, auto running, sound mode
DMX Channels:1/3CH(single color), 2/5CH(2in1), 4/8CH(4in1)
Environment Temperature: -10°C~40°C
Cooling system: No noise fan
IP Grade: IP20

Q1: What wattage and colour variants are available for this mini fresnel spotlight?

A1: 60W imported COB LED; single WW/CW,2‑in‑1 and 4‑in‑1 multi‑colour options,Ra≥95.

Q2: What zoom‑range and focus mechanism does this compact fresnel adopt?

A2: Manual zoom 35°‑50°; manual hand‑adjustable focus for beam sharpness tuning.

Q3: What dimming‑related adjustable parameters are built‑in this fixture?

A3: 4 selectable dimming curves; dimming frequency 500‑25000Hz;1‑25Hz strobe speed.

Q4: Are DMX channel modes different for each colour configuration?

A4: Yes:1/3CH(single‑color),2/5CH(2‑in‑1),4/8CH(4‑in‑1) selectable DMX personalities.

Q5: What control protocols and working modes does this mini fresnel support?

A5: RDM/DMX512, master‑slave synchronization, auto‑run programs and sound‑active trigger mode.

Q6: What cooling system,IP grade and working‑temperature range?

A6: Low‑noise fan cooling;IP20 indoor‑only;‑10℃ ~ 40℃ wide operating temperature.

Q7: What mains‑power input fits European and United States power grids?

A7: Universal AC100‑240V 50‑60Hz wide‑voltage power input.

Q8: What are net weight, gross weight and carton packing dimensions?

A8: Net weight 2.5kg, gross weight 3.5kg; packing size 325×245×185 mm per single‑unit carton.
