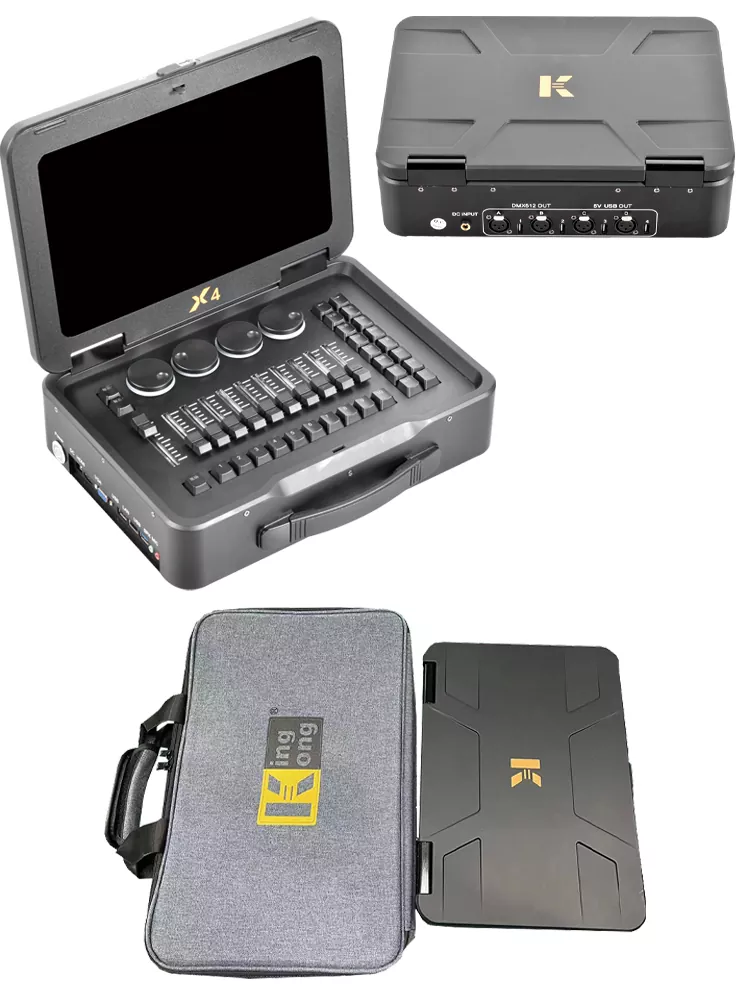

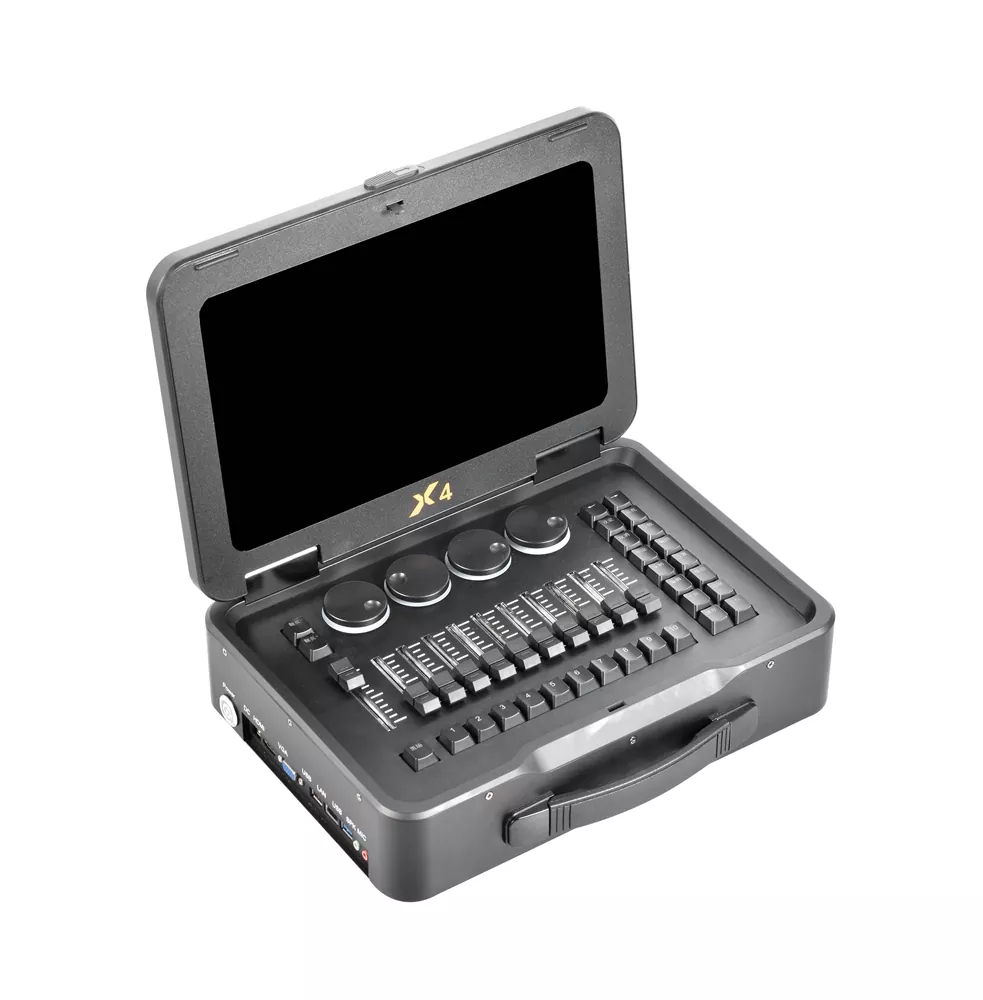

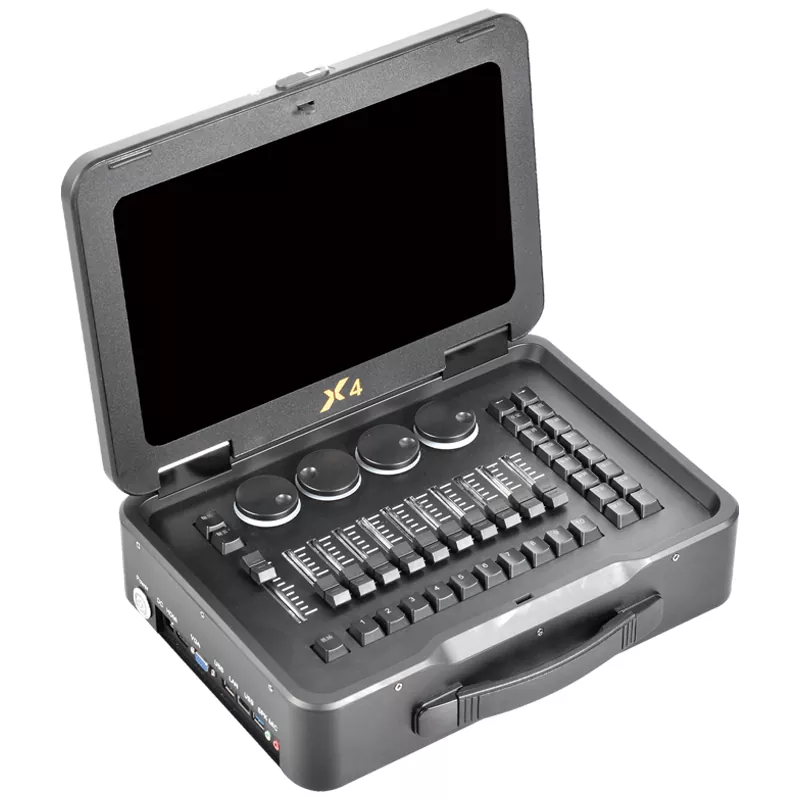

BATON-X4 Foldable Compact Lighting Console Custom Industrial Mainboard Intel CPU 4G RAM 128G SSD 11.6Inch Capacitive Touch UPS 2048DMX Art-Net 4096CH RDM Wireless Remote Controller Stage Hardware Multi-Function Light Desk Indoor Outdoor Compact Event Lighting Device

BATON-X4 Foldable Compact Lighting Console Custom Industrial Mainboard Intel CPU 4G RAM 128G SSD 11.6Inch Capacitive Touch UPS 2048DMX Art-Net 4096CH RDM Wireless Remote Controller Stage Hardware Multi-Function Light Desk Indoor Outdoor Compact Event Lighting Device

Hardware Parameters

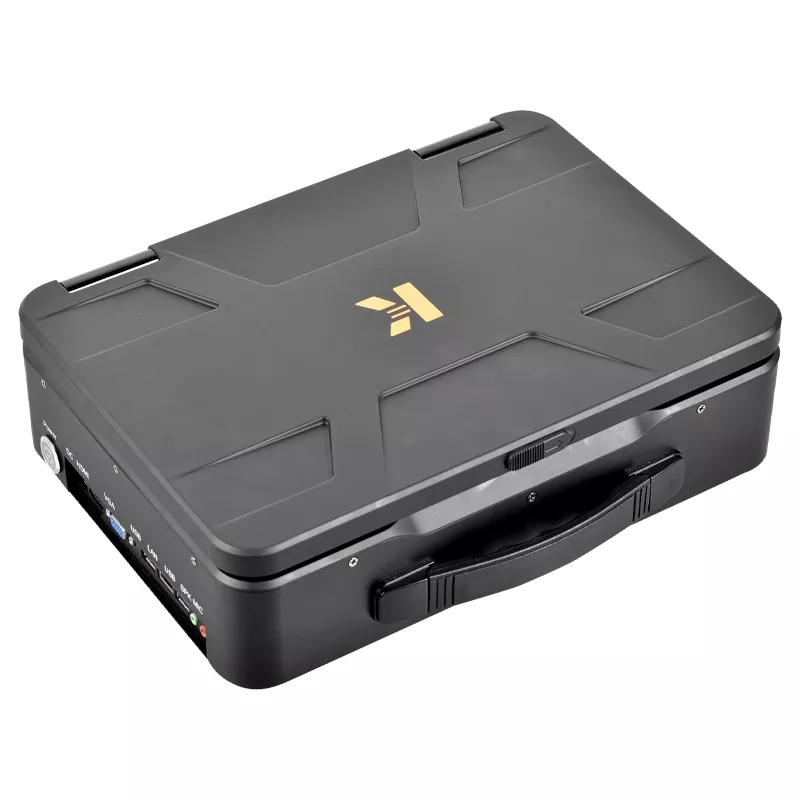

• Custom developed clamshell foldable design, lightweight with carry handle and screen buckle lock; industrial mainboard guarantees stable performance.
• Equipped with Intel CPU, 120GB Kingston SSD and 4GB RAM.
• Four standard USB ports available.

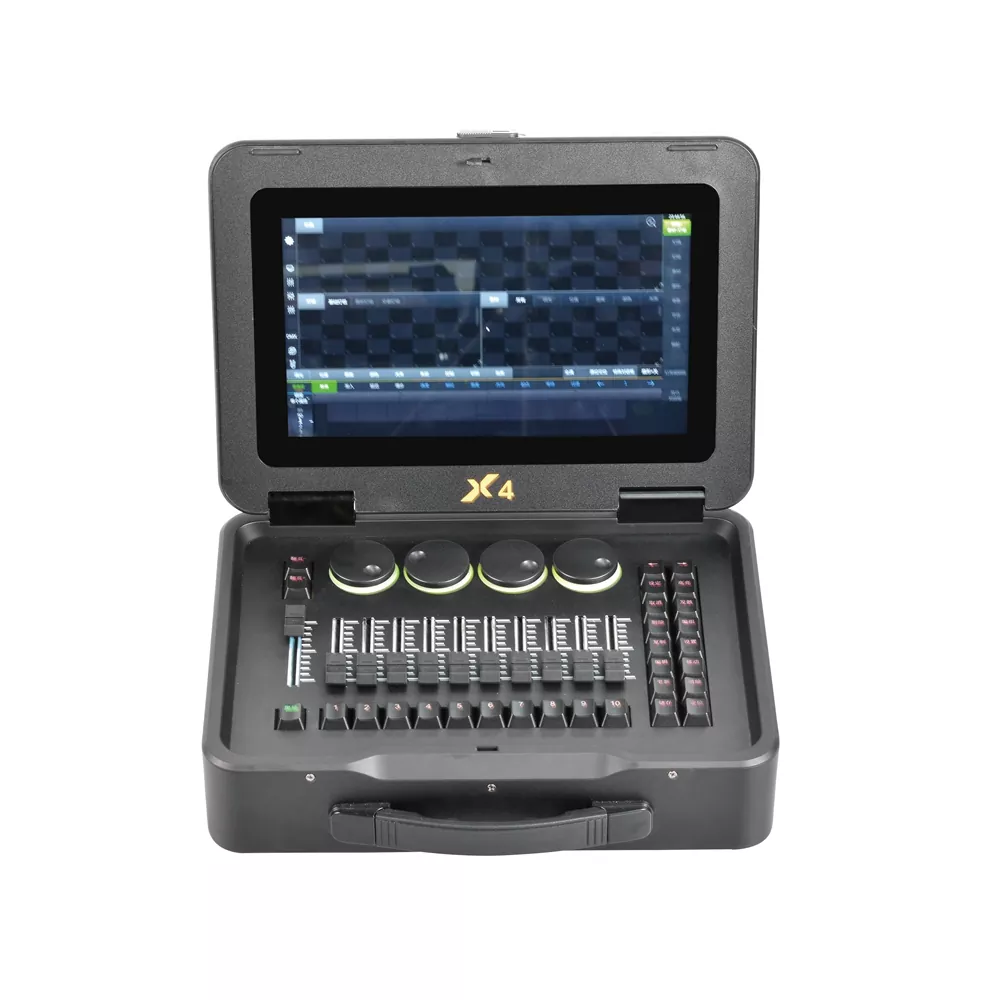

• 11.6-inch ultra-sensitive HD capacitive touch screen.
• One adaptive Gigabit/100Mbps TCP/IP LAN port.
• One HDMI high-definition video port.
• One VGA video interface.
• One high-quality microphone input jack.
• One high-fidelity audio output port.

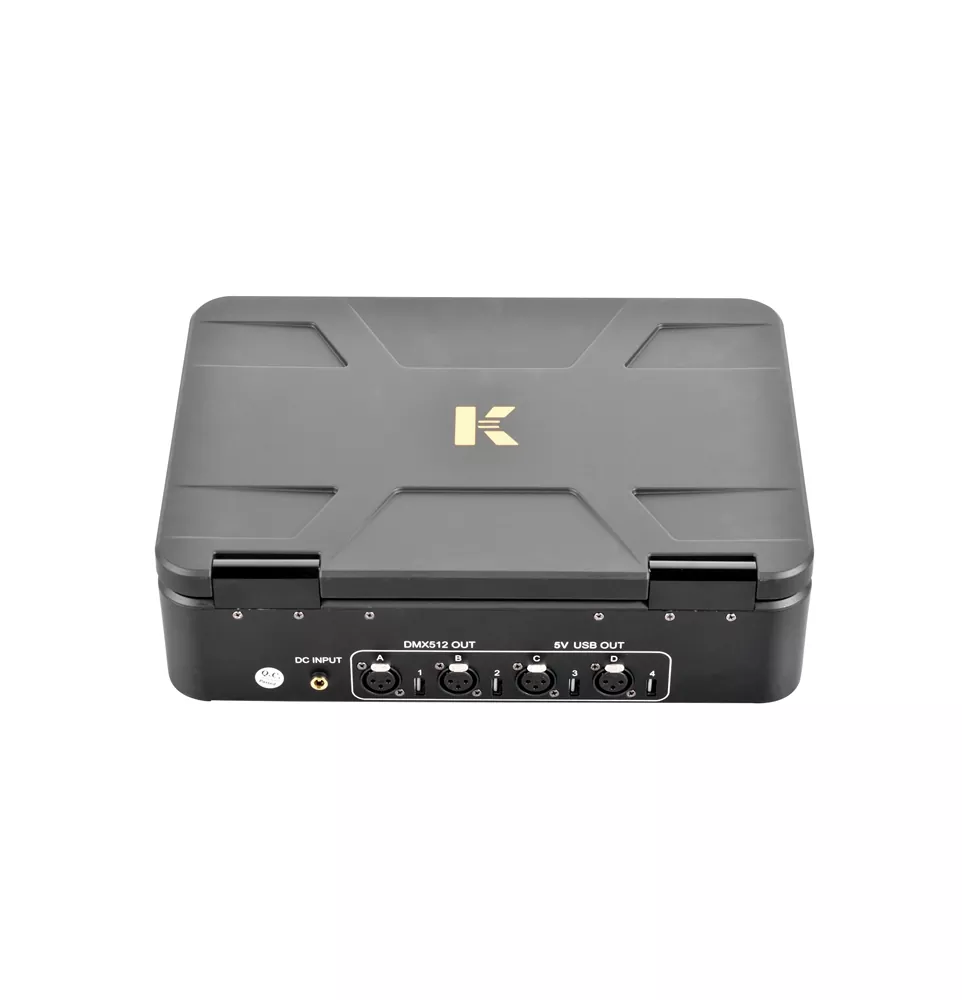

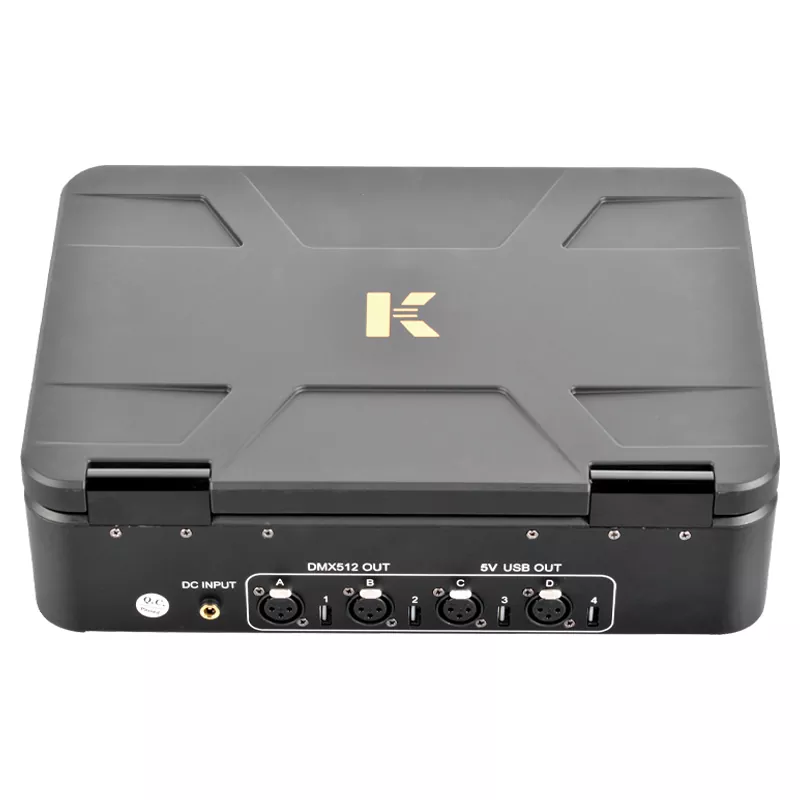

• Four optically isolated DMX512 signal output ports.
• Four 12V power supply USB ports for wireless transmitter power supply.
• Faders and dials with customizable RGB backlight adjustable by scenes.
• Built-in UPS supports 60-minute continuous operation after power cut.
• Exquisite surface craftsmanship brings premium hand feeling.
• Matching certified 3C power adapter: AC 100-240V input, 12V 5A output with overcurrent, overvoltage and overload protection.

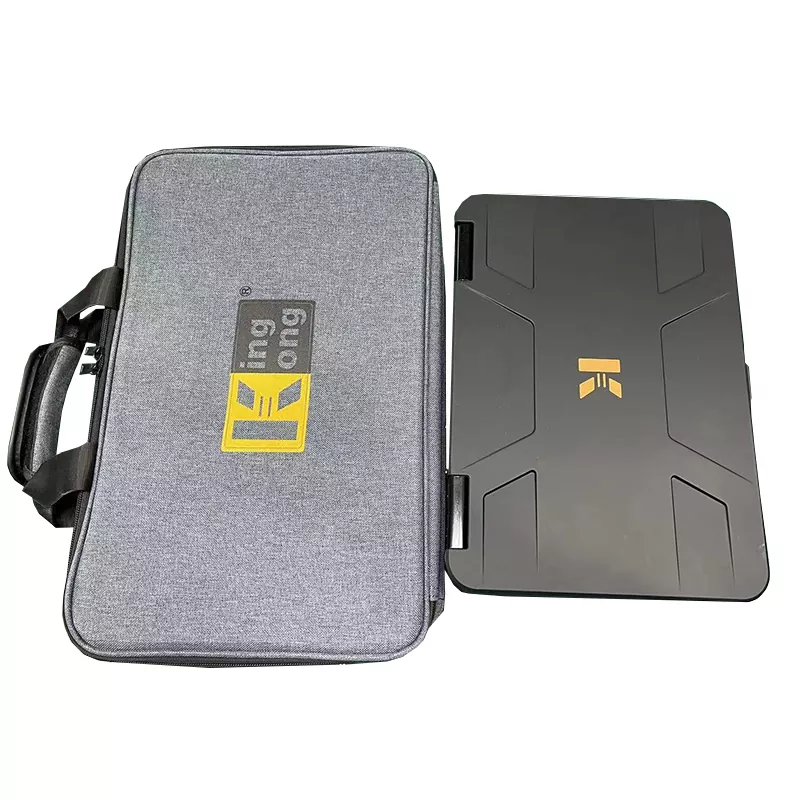

• Equipped with exclusive customized storage backpack for safe transport.
• All components are brand-new genuine high-grade materials without refurbished spare parts.
Software Parameters
• Latest upgraded system features stronger stability and comprehensive functional parameters.
• Freely switch among Chinese, English, Portuguese and Traditional Chinese on operation interface.
• 2048 DMX channels with four optically isolated DMX512 output ports.
• Art-Net expansion port extends total channels up to 4096.
• Compatible with bidirectional RDM communication protocol.
• Mobile phone & tablet wireless remote control via dedicated APP.
• 10 playback faders and 10 on-screen executor buttons.
• Stores 2700 scenes with unlimited single steps for multi-step cues.
• Controls up to 800 fixtures and saves 200 fixture groups.
• Palettes divided into 15 categories, 200 per category for total 3000 palettes.
• Storage for 400 independent light show programs.
• Built-in audio player enables convenient one-click lightshow production.
• Independent timing setting plus 43 optional curve calculations for each fixture attribute.
• 60 freely adjustable built-in fixed graphics.
• Six fan effect modes editable via dedicated setting dialogue box.
• Quick color selection via color palette, slider and preset in exclusive dialogue.
• Layout simulation function for accurate on-site fixture arrangement control.
• Custom menu naming, window add/delete & multi-window composite operation improve efficiency.
• Advanced segment algorithm supports split operation of attributes, timing and graphics.
• Directly modify fixture address, output line and key position after patching.
• Backup all shows, fixture libraries and audio files to external U disk.
• Automatic file saving allows safe shutdown anytime.
• Set power-on and screen lock passwords to protect console data.
• Custom name or graffiti mark lamp groups, palettes and scenes for quick lookup.
• Adopts XML format fixture library; editable on console or PC then imported via USB.
• Add subsets in fixture library for fast attribute selection.
• Wired Art-Net connects simulation software for offline practice and programming.
• File interchange and offline backup supported among brand’s full series touch consoles.
