BATON-X6 Foldable Portable Lighting Console Independent Patent Linux OS Intel CPU 4G RAM 120G SSD 15.6Inch BOE Touch UPS 3072DMX ART-Net 8192CH Multi-Language Stage Controller One-Click Lightshow Programming Unit Performance Hardware Multi-Function Control Equipment

BATON-X6 Foldable Portable Lighting Console Independent Patent Linux OS Intel CPU 4G RAM 120G SSD 15.6Inch BOE Touch UPS 3072DMX ART-Net 8192CH Multi-Language Stage Controller One-Click Lightshow Programming Unit Performance Hardware Multi-Function Control Equipment

• Possess independent intellectual property rights including appearance patent, software copyright and IC design certification.

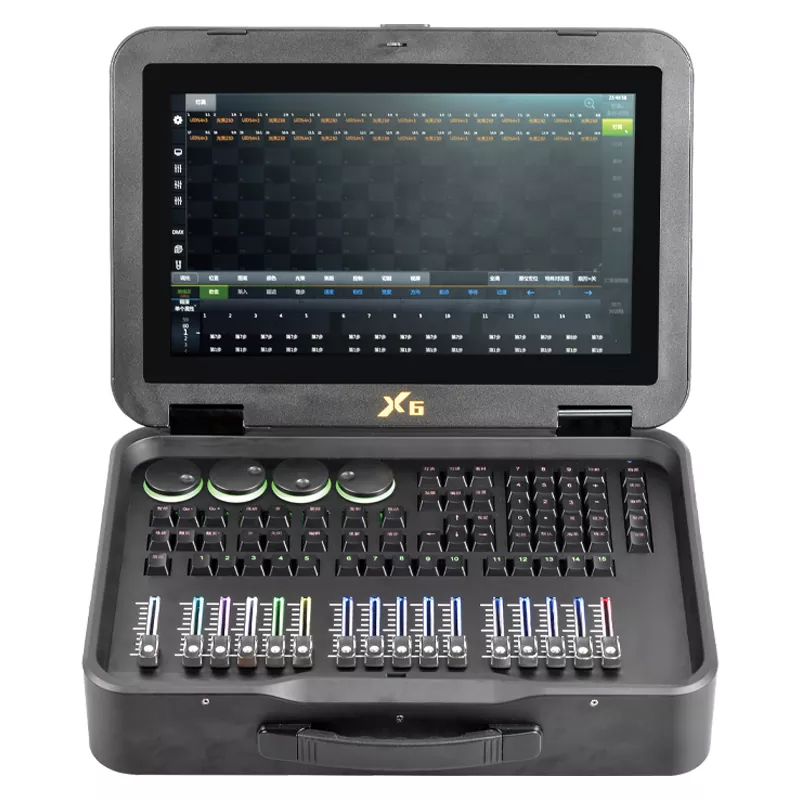

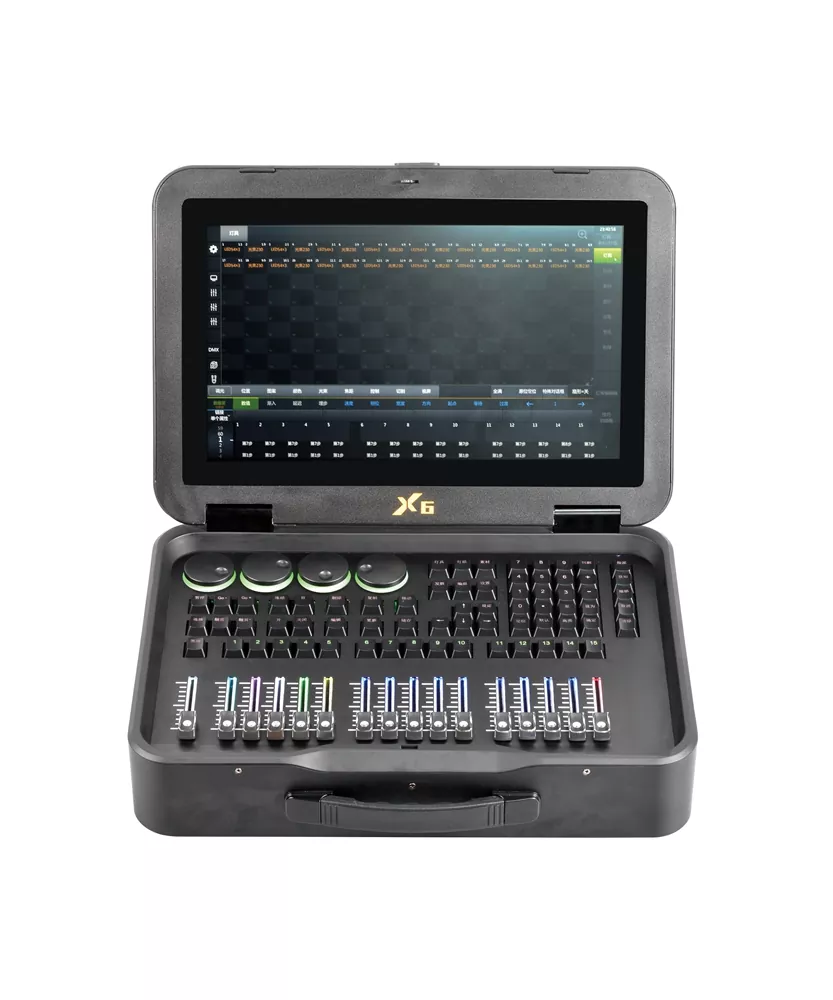

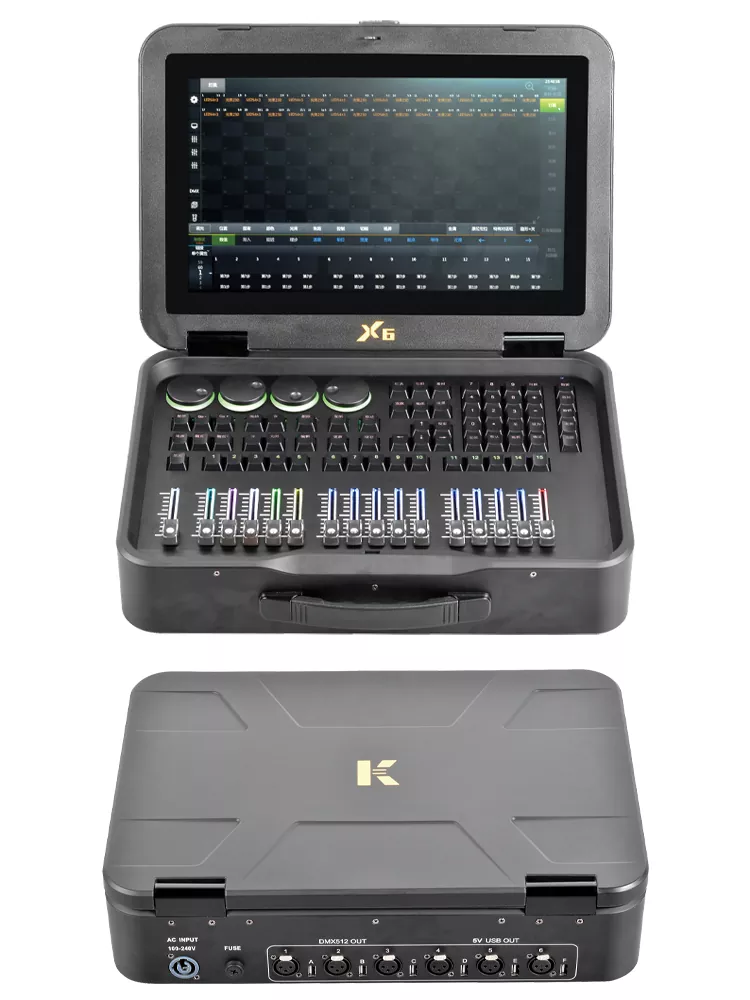

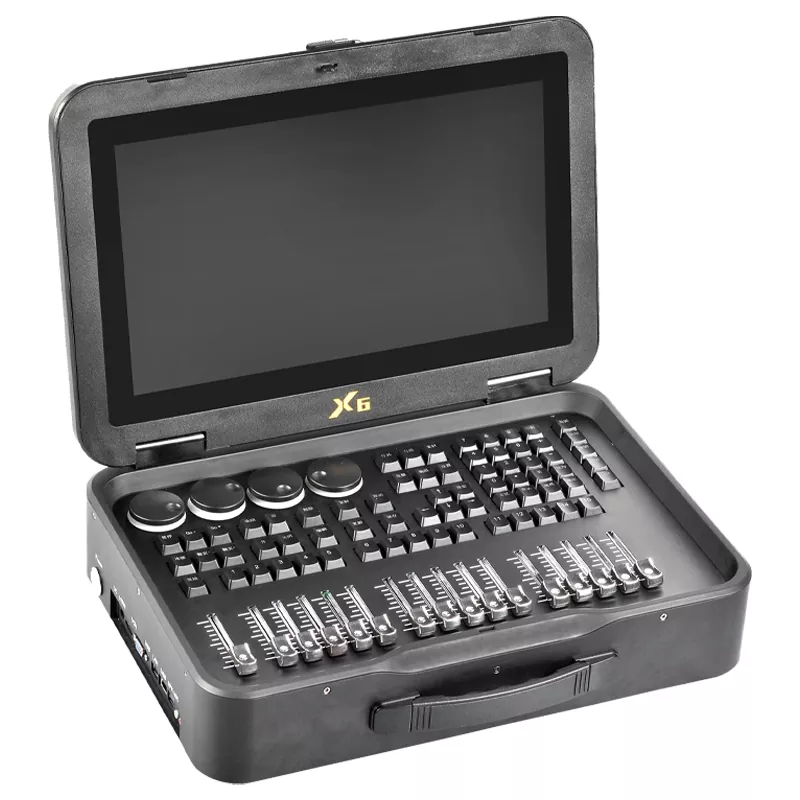

• Flip fold portable design with trendy futuristic outlook, latch lock for screen closure and built-in carrying handle.
• Premium exterior craft brings smooth skin-friendly touch feeling.

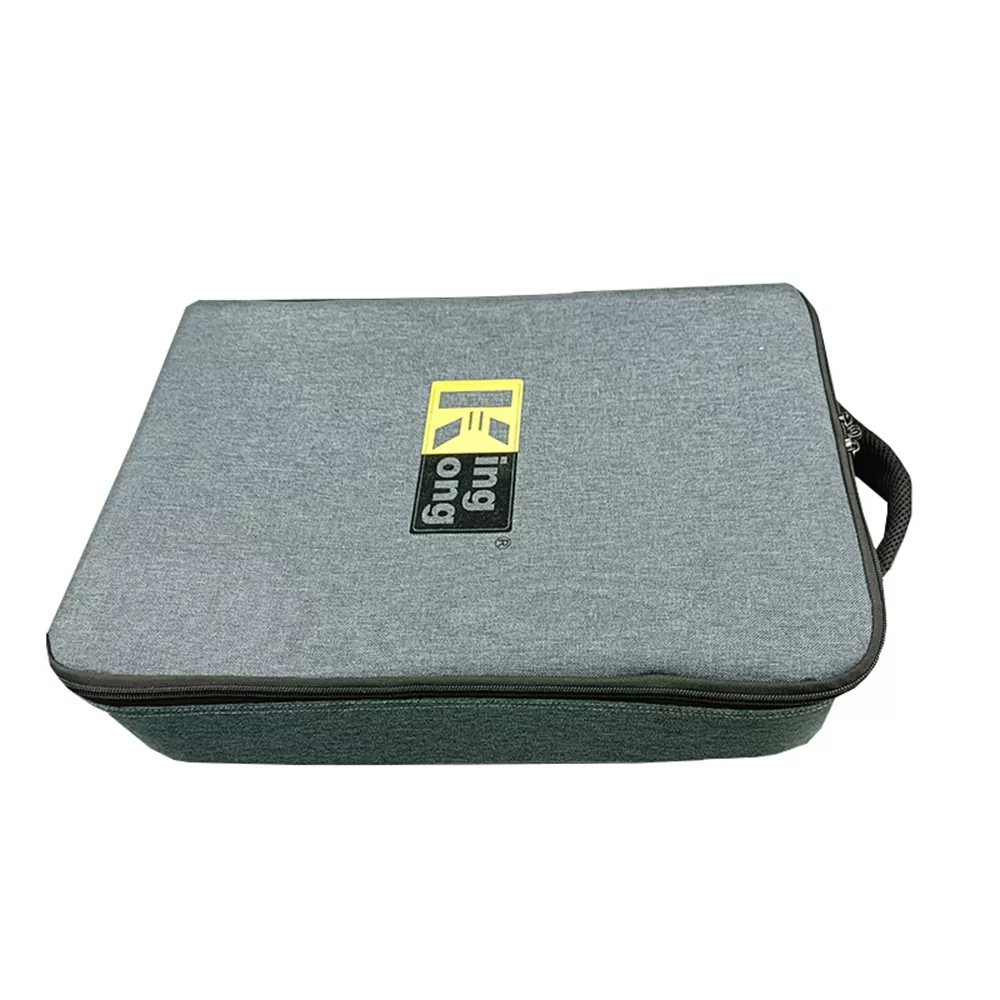

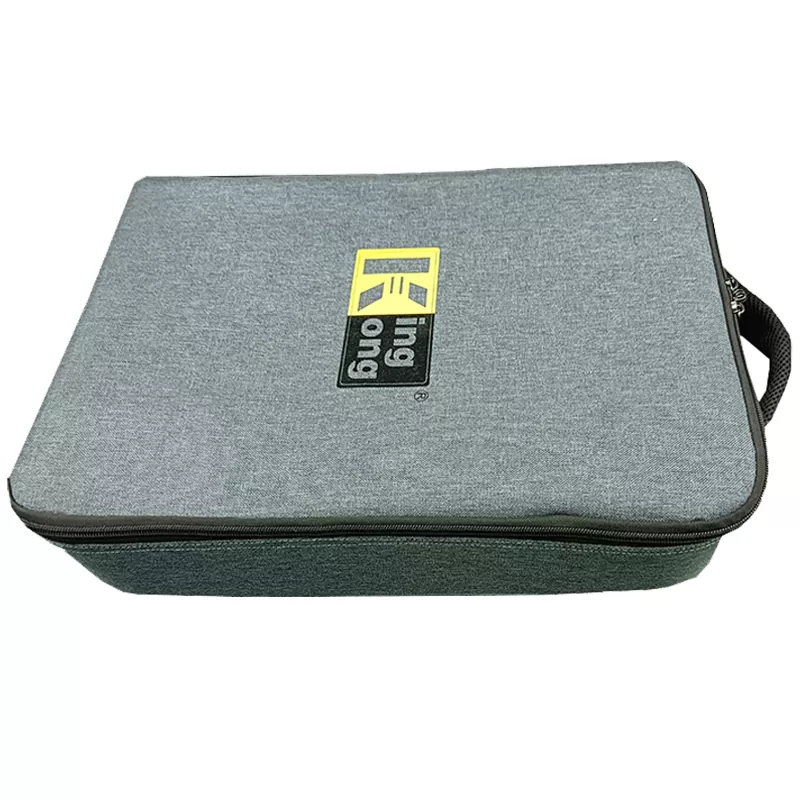

• Factory equipped with free backpack for convenient outdoor carrying.
• Custom Linux operating system ensures stable and fluent running performance.
• Configurable Intel processor, 4GB RAM and industrial mainboard with 120GB Kingston SSD.

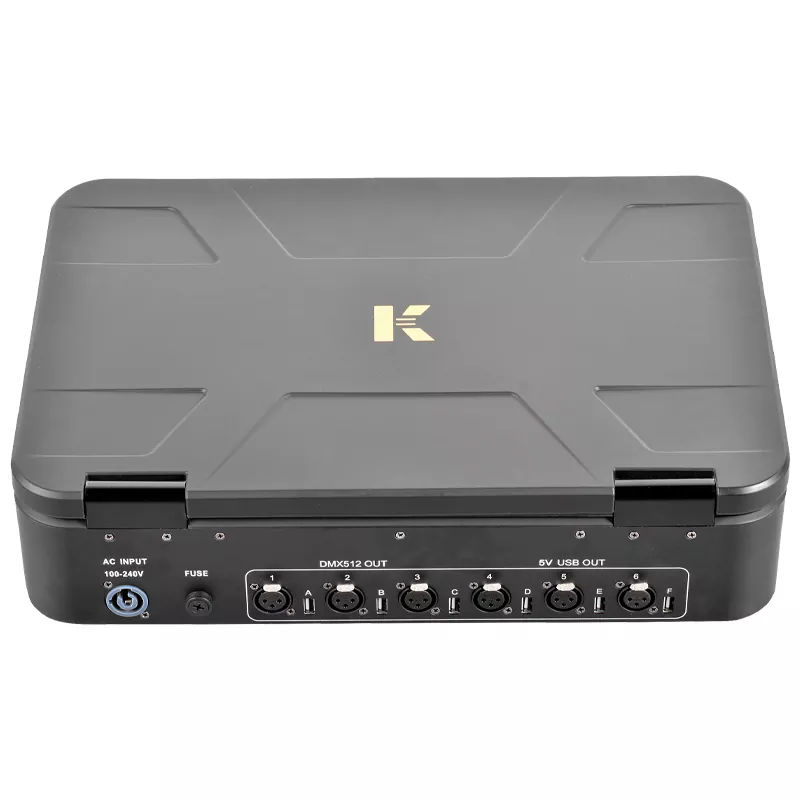

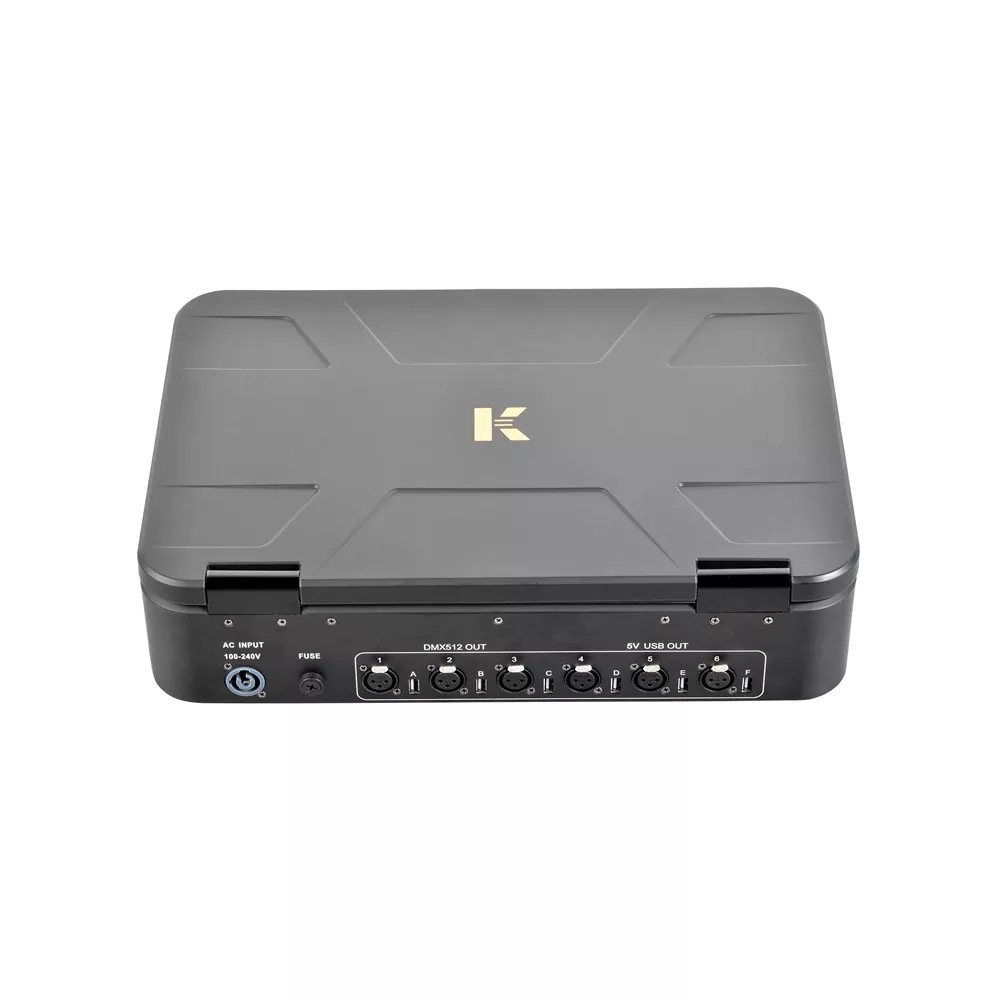

• 6 DMX512 outputs with 3072 native channels, expandable to 16 ports and total 8192 DMX channels.
• 15 scene faders support simultaneous running of 15 independent cue programs.
• Four rotary encoders for quick fixture parameter adjustment.
• One Gigabit LAN port compatible with ART-Net transmission.
• 10 built-in USB ports for wireless transmitter connection.
• One high-fidelity audio output and one microphone input for lightshow audio playback.
• 15.6-inch BOE medical-grade capacitive touchscreen, 80% higher sensitivity than traditional resistive screen with zero delay.
• Chinese default UI with optional English, Portuguese, Traditional Chinese and Vietnamese.
• 3000 fixture keys, max patch 3000 fixtures and store 300 fixture groups.
• Palettes sorted into 10 categories, 200 per group for total 2000 saved palettes.
• Stores up to 2700 scenes with unlimited steps for multi-step cues.
• Preloaded 163 fixed graphics plus 43 adjustable curve effects.
• Load and freely combine maximum 60 graphic effects at once.
• Six editable fan modes modified via dedicated setting dialogue.
• Storage available for 400 independent programmed shows.
• Quick color selection via color panel, slider and preset bank in exclusive dialogue box.
• Layout simulation function realizes precise on-site fixture arrangement control.
• Resizable editable working windows save as custom view for instant recall.
• Advanced section algorithm enables segmented running of attribute, timing and graphic parameters.
• Built-in UPS maintains over 60-minute continuous operation during sudden blackout.
• Onboard audio player facilitates lightshow editing and rehearsal recording.
• Freehand graffiti and custom naming for groups, palettes and cues.
• Adopts XML fixture library; editor works on console or PC with addable attribute subsets.
• Supports UDP, RS232, DMX512, MIDI and TCP/IP for third-party central control docking.
• Wired ART-Net works with laser simulation software for offline practice programming.
• Wireless mobile/tablet remote control sorts and controls stored scenes and power without pre-recording.
• Dual console linkage backup available for on-site performance.
• Directly modify fixture address, output line and key location after fixture patching.
• Back up all project files to external storage to avoid data loss.
• User-defined access password protects internal console data security.
• Upgraded program module auto-generates music waveform for beat marking, cue snap and auto-fill to simplify lightshow; supports marker import from Adobe Audition.
• Import or export beat markers to & from AU audio software.
• Custom scheduled tasks for auto power on/off, scene startup and termination at appointed time.
• Rated Voltage: AC100V~240V, 50/60Hz.
• Rated Power:72W.
• Product Dimension:435300110mm.
• Net Weight:8.45KG.
