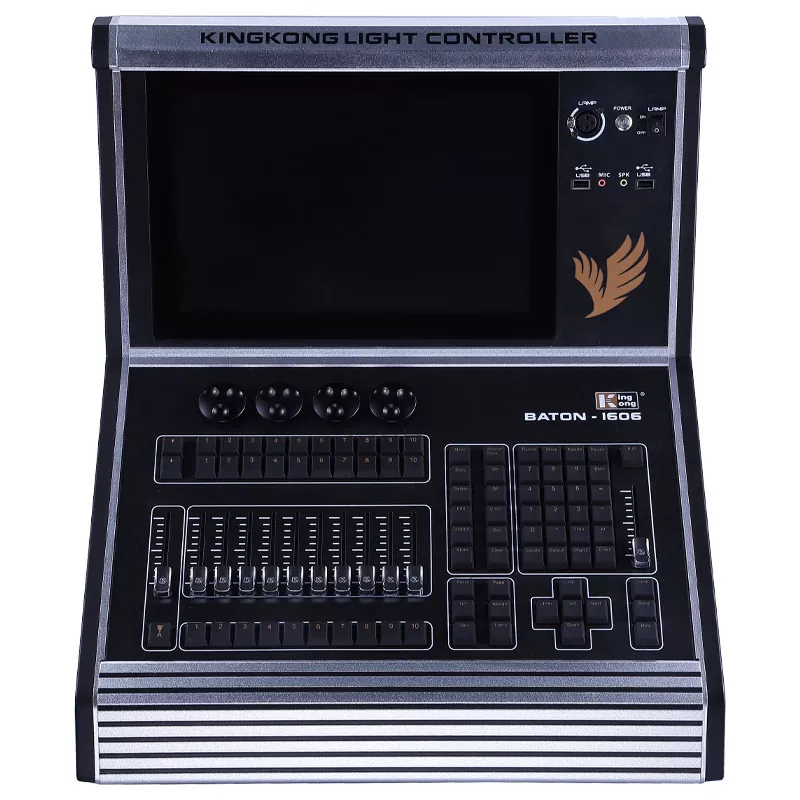

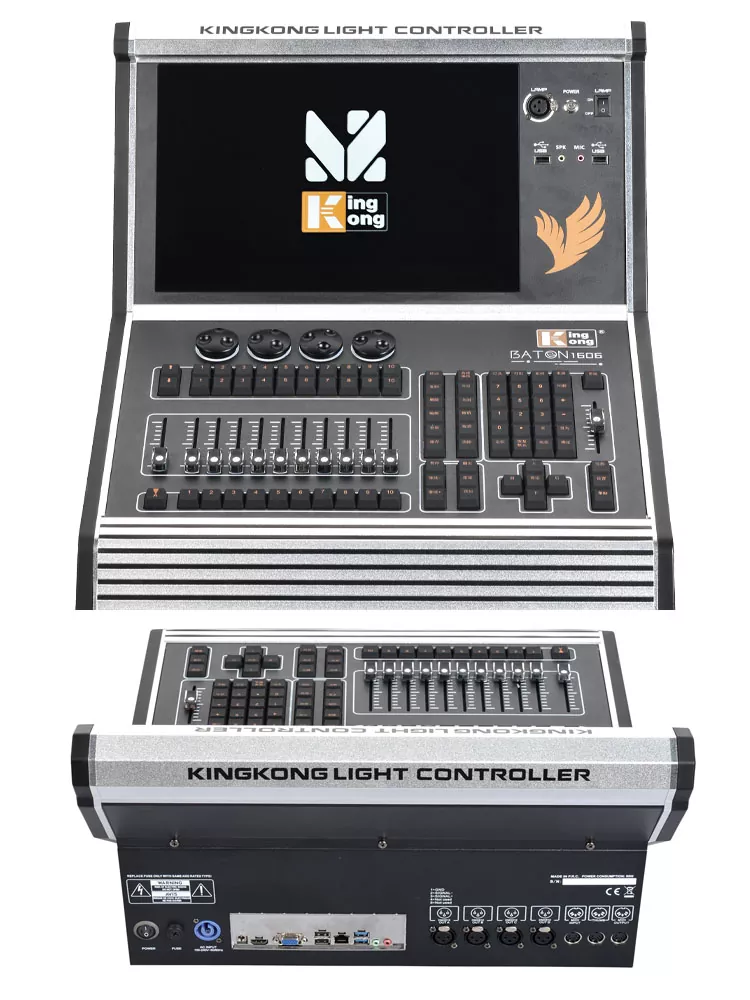

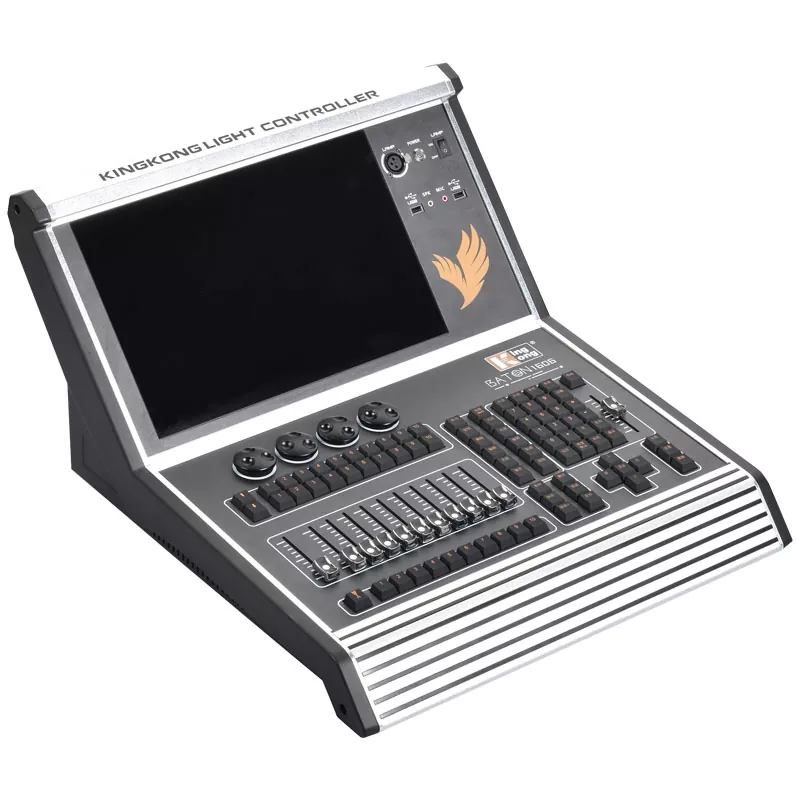

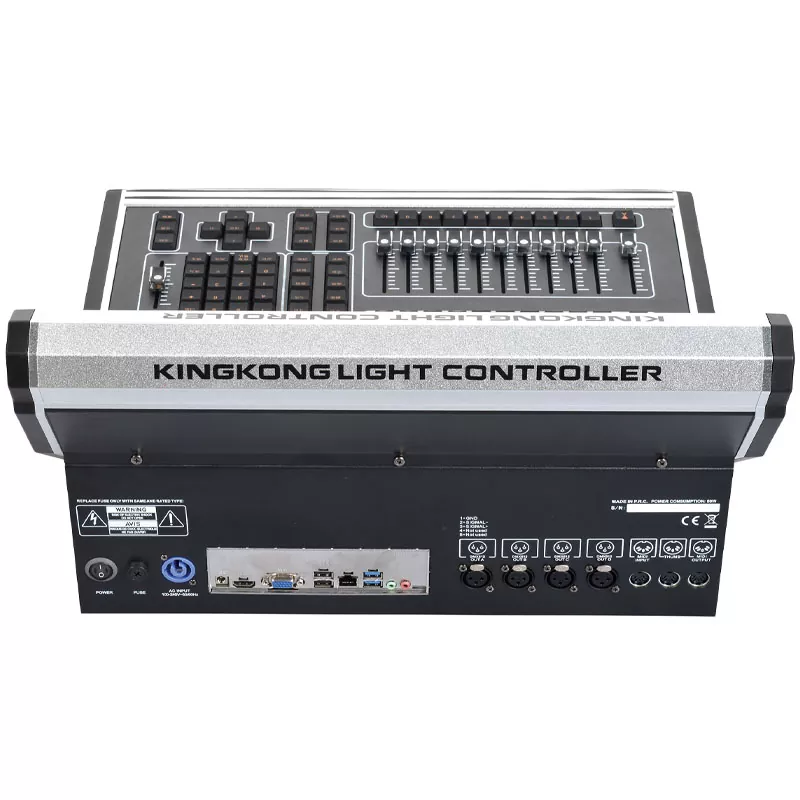

BATON1606 Intelligent Lighting Console Quad-Core Cortex-A9 2GB RAM 64GB SSD 13.3Inch Capacitive Touch UPS Backup 2048DMX Art-Net 4096CH RDM Wireless Mobile Remote Control Desk Indoor Outdoor Commercial Event Lighting Device Stage Performance Equipment

BATON1606 Intelligent Lighting Console Quad-Core Cortex-A9 2GB RAM 64GB SSD 13.3Inch Capacitive Touch UPS Backup 2048DMX Art-Net 4096CH RDM Wireless Mobile Remote Control Desk Indoor Outdoor Commercial Event Lighting Device Stage Performance Equipment

• Equipped with 1.2GHz Quad-core ARM Cortex-A9 CPU for rapid response.
• 13.3-inch capacitive touchscreen faster than traditional resistive screen; Chinese and English interface switchable freely.
• Equipped with 64GB solid state disk.
• 2GB operating memory equipped.
• Built-in UPS power supply sustains continuous operation under unexpected power outage.
• 2048 DMX channels with four optically isolated DMX512 output ports.
• Art-Net expansion port extends up to 4096 DMX channels.
• Supports bidirectional RDM communication protocol.
• Dedicated software enables remote control via mobile phones and iPads.
• Configured with 10 playback faders and 20 on-screen executor buttons.
• Stores 600 scenes with unlimited single steps for multi-step cues.
• Capable of controlling up to 800 fixtures and saving 200 fixture groups.
• Stores 1200 categorized palettes to combine curves for superior lighting effects.
• Supports storage of 200 independent light show programs.
• Directly modify fixture address codes, output lines and fixture button positions after patching.
• Built-in music player achieves one-click lightshow programming conveniently.
• Each fixture attribute supports independent timing and 26 optional curve calculations.
• Freely adjustable attribute timing creates softer effects beyond traditional overlap functions.
• Scroll left and right to pick built-in attribute effects optionally.
• Custom editable graphics plus 26 preset fixed patterns available.
• Edit fixture layout map on console referencing actual on-site lamp arrangement.
• Three optional fixture working modes with factory reset function.
• Intuitive color panel realizes visual mixed-color adjustment.
• Special setting dialogue quickly completes matrix arrangement.
• Adjust fixture position directly while editing palettes.
• Freely customize playback duration of previewed lighting effects.
• Scenes support single-run or cyclic playback selection.
• Onboard fixture library editor allows unlimited fixture library storage.
• Adopts imported buttons, encoders and faders for comfortable touch and extended service life.
• Installed with well-known domestic branded mainboard, no counterfeit parts with exquisite workmanship.
• Power Input: AC 110-240 V/50-60HZ
• Product size/weight:500(L)*570(W)*310(H)mm/13.2kg
• Flight case size/weight:670(L)*610(W)*390(H)mm/28.4kg
