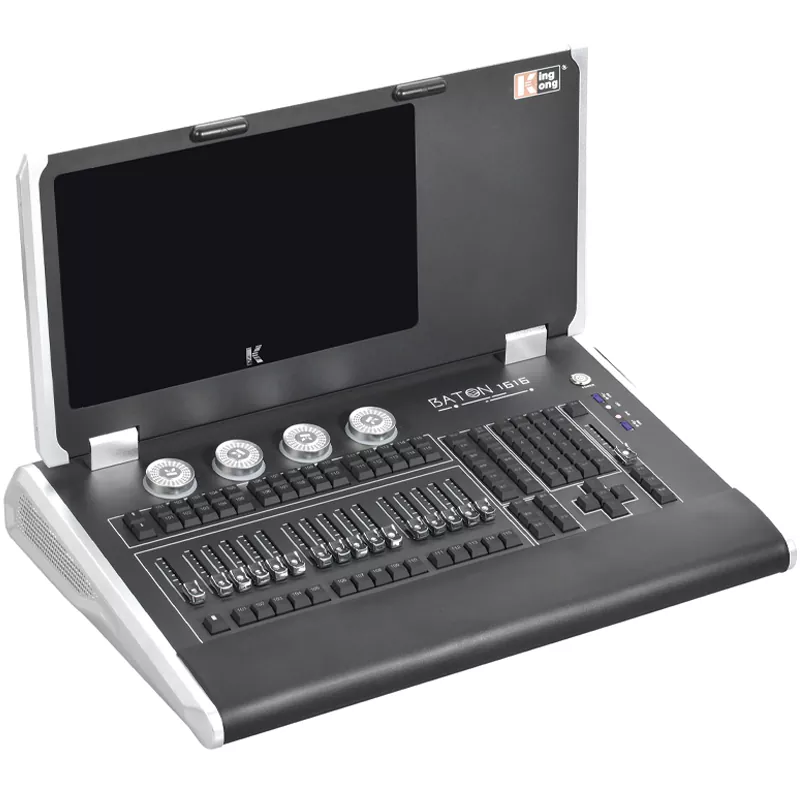

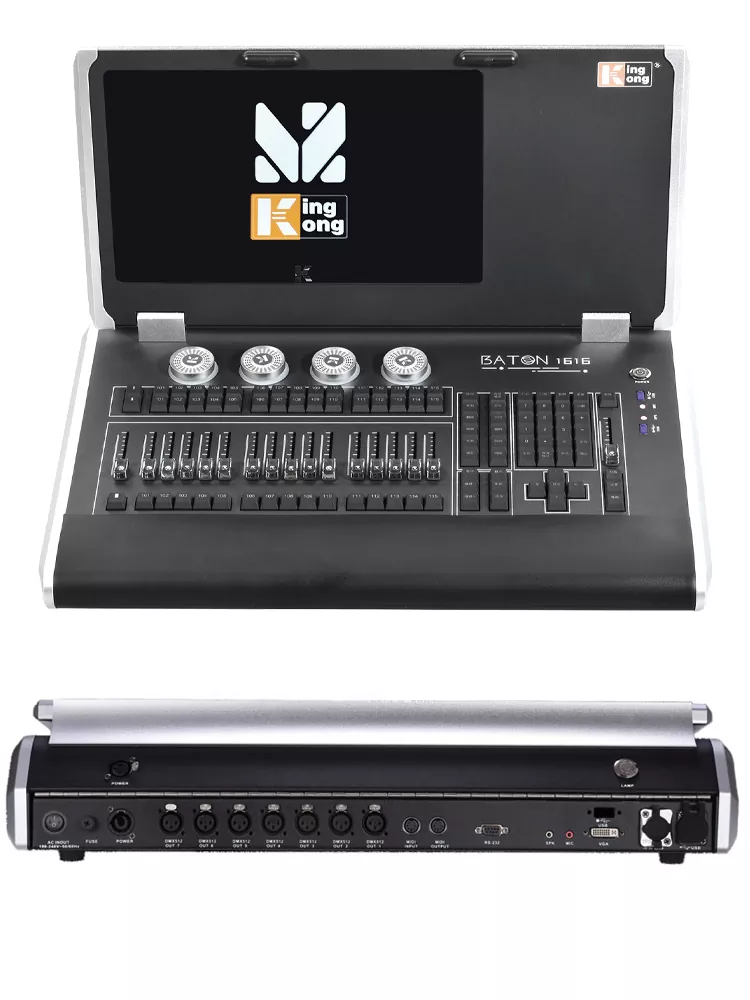

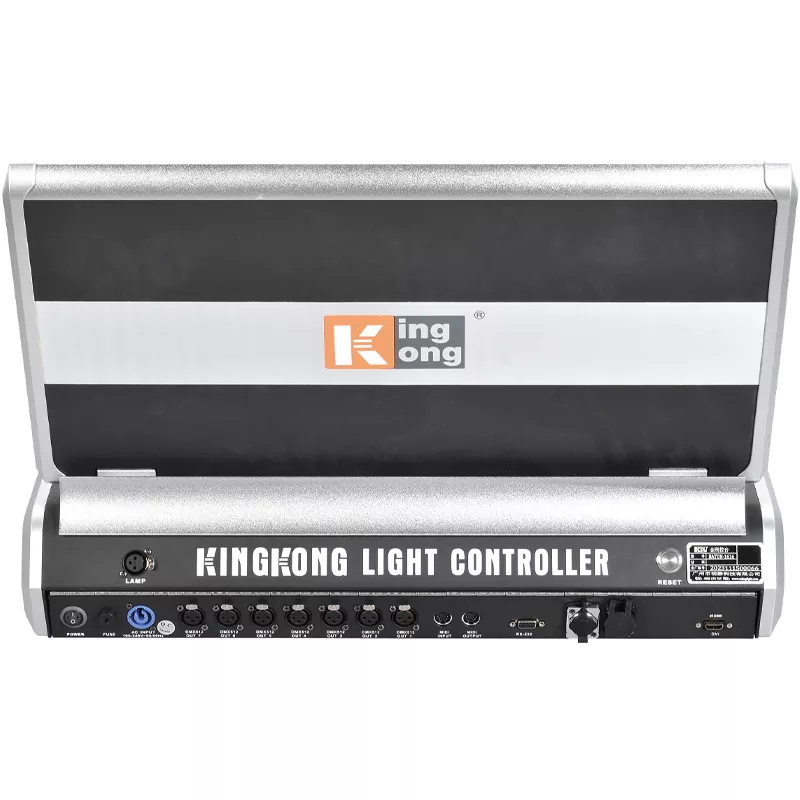

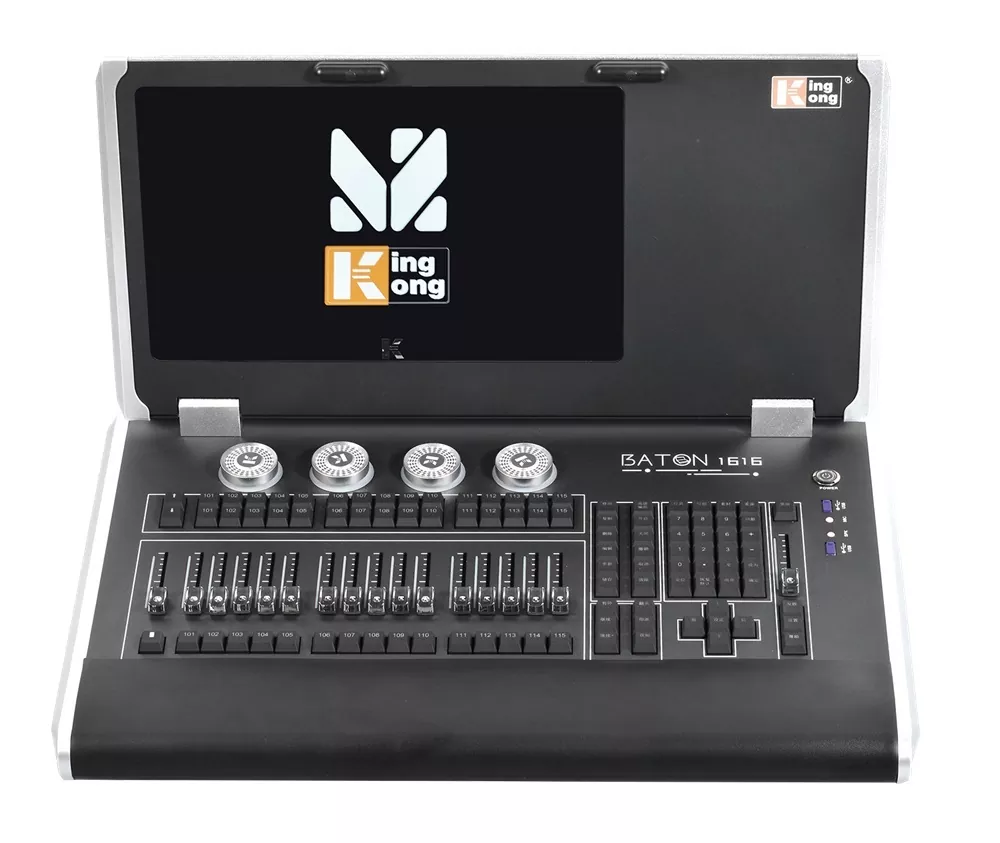

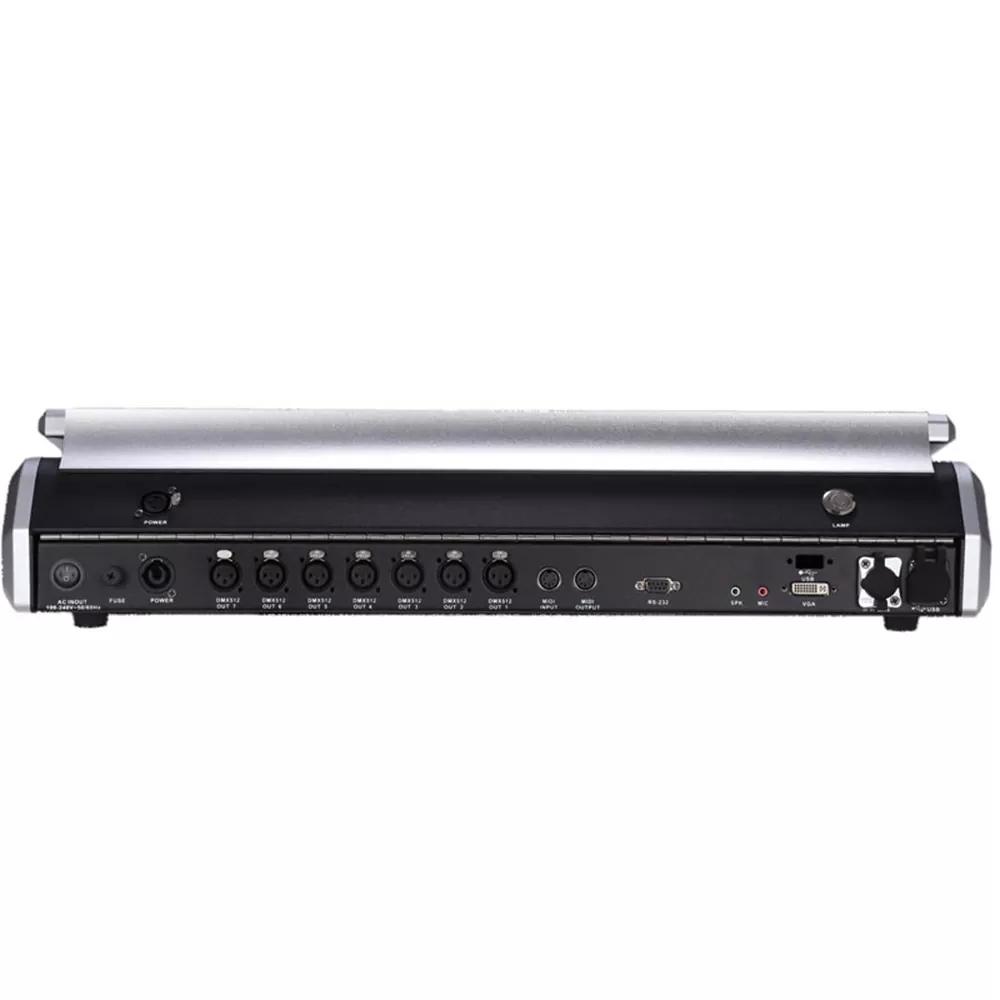

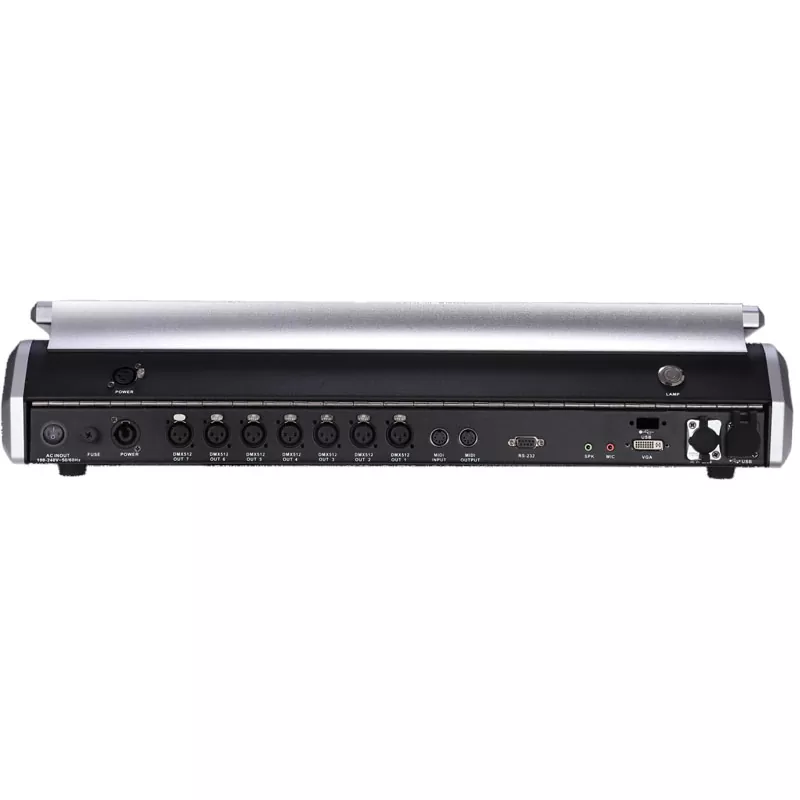

BATON1616 Professional Stage Lighting Console Independent Patent Custom Linux OS 9th Gen I3 ASUS Mainboard 4G DDR4 120G SSD BOE 15.6Inch Touch 7DMX ART-Net 16384DMX Multi-Light Control Desk Windows Live Performance Equipment Wired Wireless ART-Net Indoor Large-Scale Event Lighting Console

BATON1616 Professional Stage Lighting Console Independent Patent Custom Linux OS 9th Gen I3 ASUS Mainboard 4G DDR4 120G SSD BOE 15.6Inch Touch 7DMX ART-Net 16384DMX Multi-Light Control Desk Windows Live Performance Equipment Wired Wireless ART-Net Indoor Large-Scale Event Lighting Console

• Own independent intellectual property including appearance patent, software copyright and IC design certification.
• Custom Linux operating system realizes ultra-low delay data transmission.
• Optional 9th Gen Intel i3 CPU, Samsung DDR4 RAM, ASUS mainboard, 120GB Kingston SSD and 4GB system memory.
• 7 DMX output ports with 3584 native DMX channels, expandable to 32 ports up to 16384 DMX channels.
• 15.6-inch BOE medical-grade capacitive touch screen, 80% higher sensitivity than traditional resistive screen with zero lag.
• Multi-language built-in, free switching between Chinese and English.
• Equipped with 6000 fixture keys, supports maximum 6000 patched fixtures and 600 stored fixture groups.
• Palettes divided into 15 categories, 200 per category, total storage up to 3000 palettes.
• Stores 2700 scenes with unlimited single steps for multi-step cues.
• Runs 20 scene windows simultaneously, 15 onboard faders and expandable extra 30 playback channels.
• Preloaded 163 fixed graphics and 43 editable curve parameters.
• Load up to 60 graphic effects for arbitrary combination at the same time.
• Six adjustable fan modes modified via dedicated parameter dialogue box.
• Stores maximum 400 independent programmed shows.
• Quick color selection via color palette, fader and preset options in exclusive function panel.
• Vector bitmap layout simulates actual venue layout for precise fixture control.
• All working windows support linear scaling and save as custom views for quick recall.
• Segment operation algorithm enables split runtime setup for attributes, timing and graphics.
• Built-in music player facilitates lightshow compilation and rehearsal recording.
• Supports freehand graffiti and custom naming for all stored resources.
• Adopts XML fixture library format; editor works on console or PC with optional attribute subsets for fast selection.
• Wired ART-Net connects lighting simulator for offline practice and programming.
• Wireless ART-Net & AI technology enable remote control via mobile phones and iPads.
• Product dimension:664614CM
• Net Weight:22KG
