IP65 432×0.5W Bi‑Color LED Video Panel,3000‑6000K,Ra≥90,Fan‑Less for Studio Stage

200W Outdoor LED Video Panel Light,DMX512 Master‑Slave,Barn‑Door Included for EU & US Events

This ip65 led video panel light ra≥90 is high‑performance IP65‑rated bi‑color soft panel fixture built for television broadcast shooting, theatre performances, outdoor live‑concert events and interview‑recording professional event‑rental projects across Europe and North America. Designed for soft even subject illumination, this weather‑resistant panel meets studio‑grade shooting requirements for both fixed‑venue installation and touring‑rental workflows under semi‑outdoor working environments.

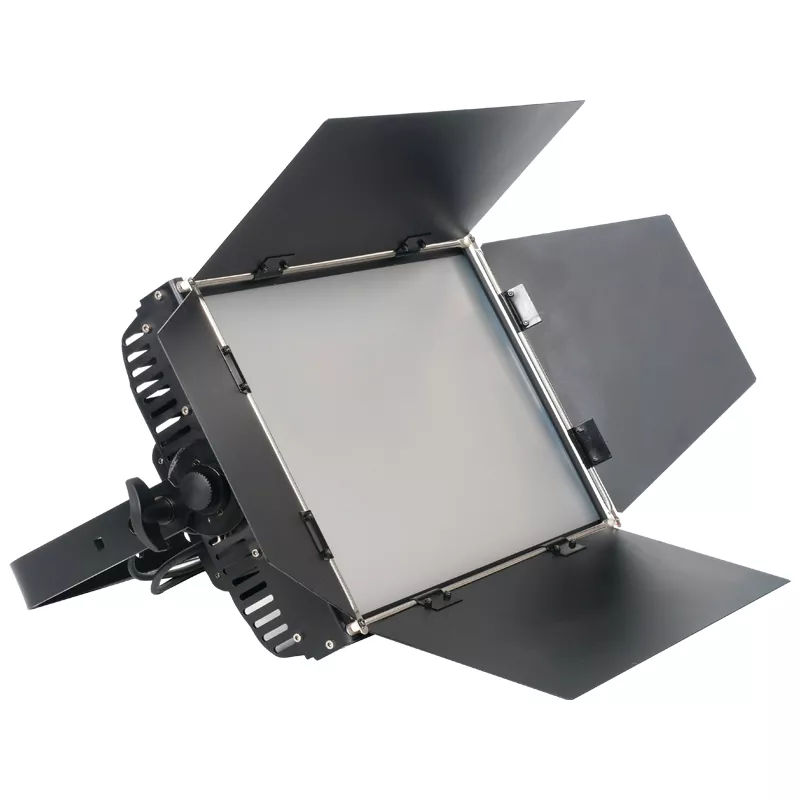

The fixture adopts 432 pieces of 0.5W bi‑color warm‑white plus cool‑white LED light source. It supports continuously tunable colour‑temperature between 3000K and 6000K, achieving colour‑rendering index Ra≥90 for natural skin‑tone reproduction in interview and broadcast‑recording scenarios. Rated LED service lifespan exceeds 50000 hours, which helps rental houses and venue‑operators lower long‑term lamp‑replacement and maintenance costs. It implements 16‑bit ultra‑smooth dimming algorithm, delivering flicker‑free output compatible with any camera shutter‑angle and frame‑rate, and supports variable‑speed strobe effect up to 25 times per second for dynamic show effects.

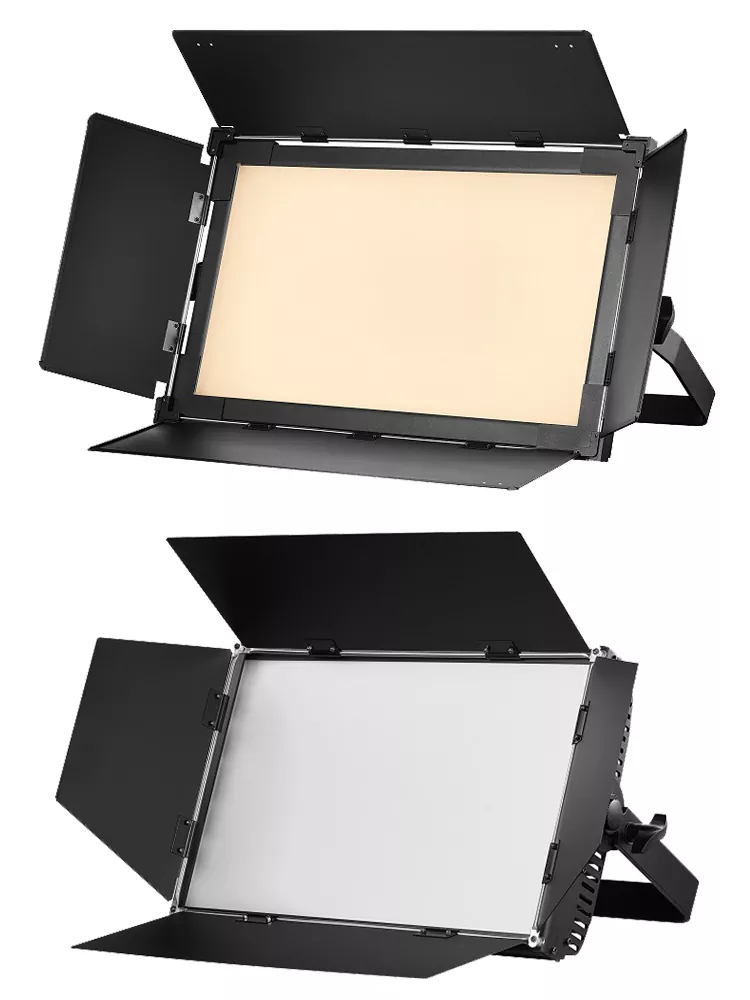

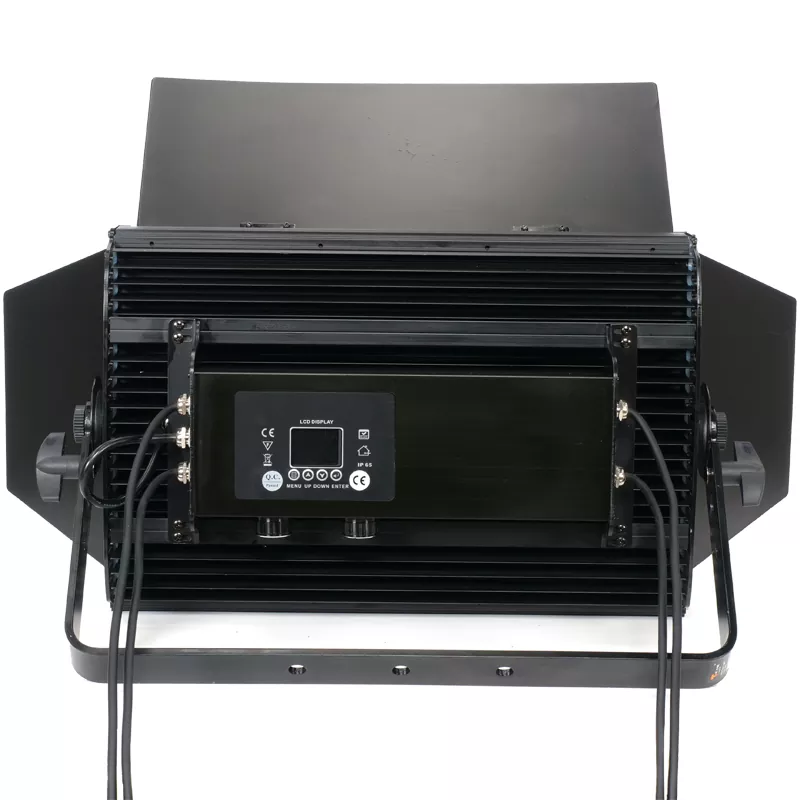

Fan‑less passive heat‑dissipation architecture brings completely noise‑free operation with zero fan‑noise and eliminates fan‑failure risk. Two DMX channel profiles are selectable: simplified 2‑channel mode and full‑feature 5‑channel mode to satisfy different console configuration habits. Supported working modes contain DMX512 external‑console control, master‑slave synchronous‑linkage and internal auto‑run program playback. Rear‑mount four‑button LCD display allows convenient local DMX‑address setting and parameter adjustment without external controller. Barn‑door shutters are included to control light spill; tripod stand and protective tour‑bag are available as optional add‑on accessories.

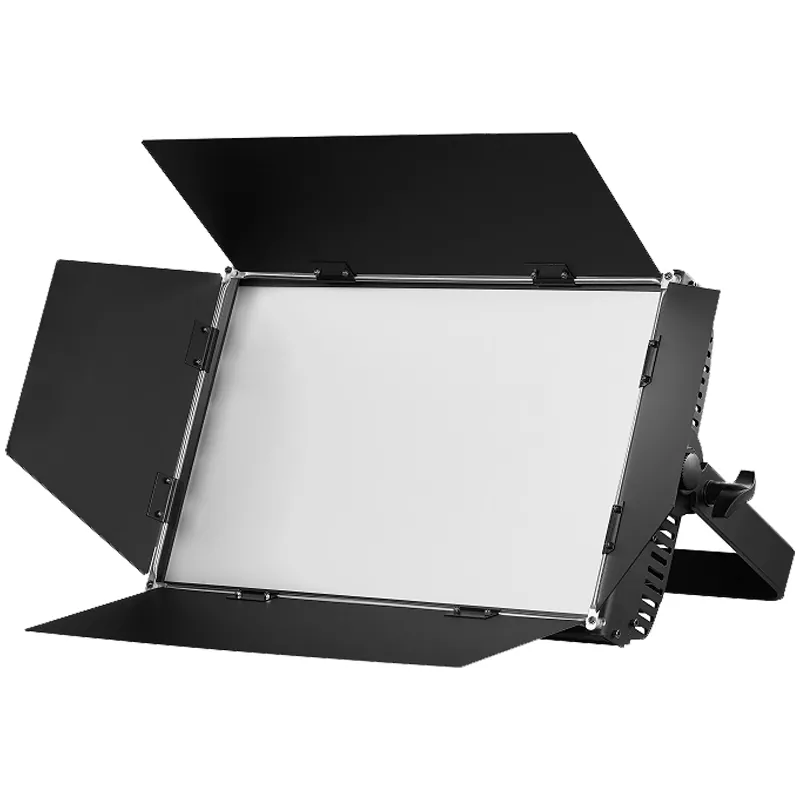

Robust black die‑cast‑aluminum housing reaches IP65 ingress‑protection grade for semi‑outdoor deployment. Heavy‑duty single side handle supports truss‑clamp overhead suspension or tripod‑stand floor mounting. Operating ambient‑temperature covers‑10℃‑40℃. Universal AC100‑240V 50‑60Hz wide‑voltage power input adapts to diverse mains‑grid standards throughout European nations and United States.

Each unit net weight is 9.63 kg and gross‑weight is 12 kg, packed in individual 59.5×38.5×23.5 cm carton. During overhead truss‑hanging installation, secondary safety‑cable must be fitted for anti‑fall protection. Even with IP65 rating, avoid long‑term water submersion. Featuring bi‑color CCT adjustment, camera‑friendly flicker‑free performance and fan‑less silent running, this outdoor‑grade LED video‑panel supplies reliable broadcast‑quality soft‑lighting solution for entertainment‑lighting and interview‑shooting projects throughout Europe and North America.

Voltage: AC100V-240V 50-60Hz
Max.Power: 200W
Light source: 432pcs*0.5W WW&CW LED
LED Life Time: over 50,000 hours
Color Rendering Index(CRI): Ra≥90
Color temperature: 3000k & 6000k
Light body: Die-casting Aluminum
Body color: Black
Control mode: DMX 512, mater and slave, auto running
DMX Channel: 2/5CH
Environment Temperature: -10°C~40°C
No fan no noise
IP Grade: IP65

Q1: What color‑temperature tuning range and CRI rating does this panel support?

A1: Tunable CCT from 3000K(warm‑white) to 6000K(cool‑white); CRI Ra≥90.

Q2: Does this LED panel produce flicker under camera recording conditions?

A2: It adopts 16‑bit dimming design, 100% flicker‑free for all camera frame‑rates.

Q3: What DMX channel personalities are available for this bi‑color video panel?

A3: Two selectable modes: 2‑channel basic mode and 5‑channel full‑function DMX mode.

Q4: What are cooling solution, IP rating and operating‑temperature range?

A4: Fan‑less totally silent cooling; IP65 grade; operating ambient‑temperature ‑10℃~40℃.

Q5: What operation control modes can this video panel run under?

A5: DMX512 console control, master‑slave synchronization and built‑in auto‑run program mode.

Q6: What accessories are supplied together with this ip65 video panel light?

A6: Barn‑door shutters included; tripod stand and transport tour‑bag are optional extras.

Q7: What mains‑power input specification fits European and United States power grids?

A7: Universal AC100‑240V 50‑60Hz wide‑voltage power input.

Q8: What are net‑gross weight and single‑unit carton packing dimensions?

A8: Net 9.63kg, gross12kg; carton dimension 59.5×38.5×23.5 cm per single unit.
