Square&Bar SMD‑RGB Matrix Light,500&200 LEDs,Dynamic Pixel Chase Effects for Event Rental&Stage Integrator:SMD‑RGB Matrix Light,0‑100% dimming,long‑life LED source,pixel‑mapping visuals,for bar and concert projects
‑ High‑density 200/500pcs SMD‑RGB LED with 30000hrs lifespan,produces vivid pixel‑chase and color‑changing stage visuals

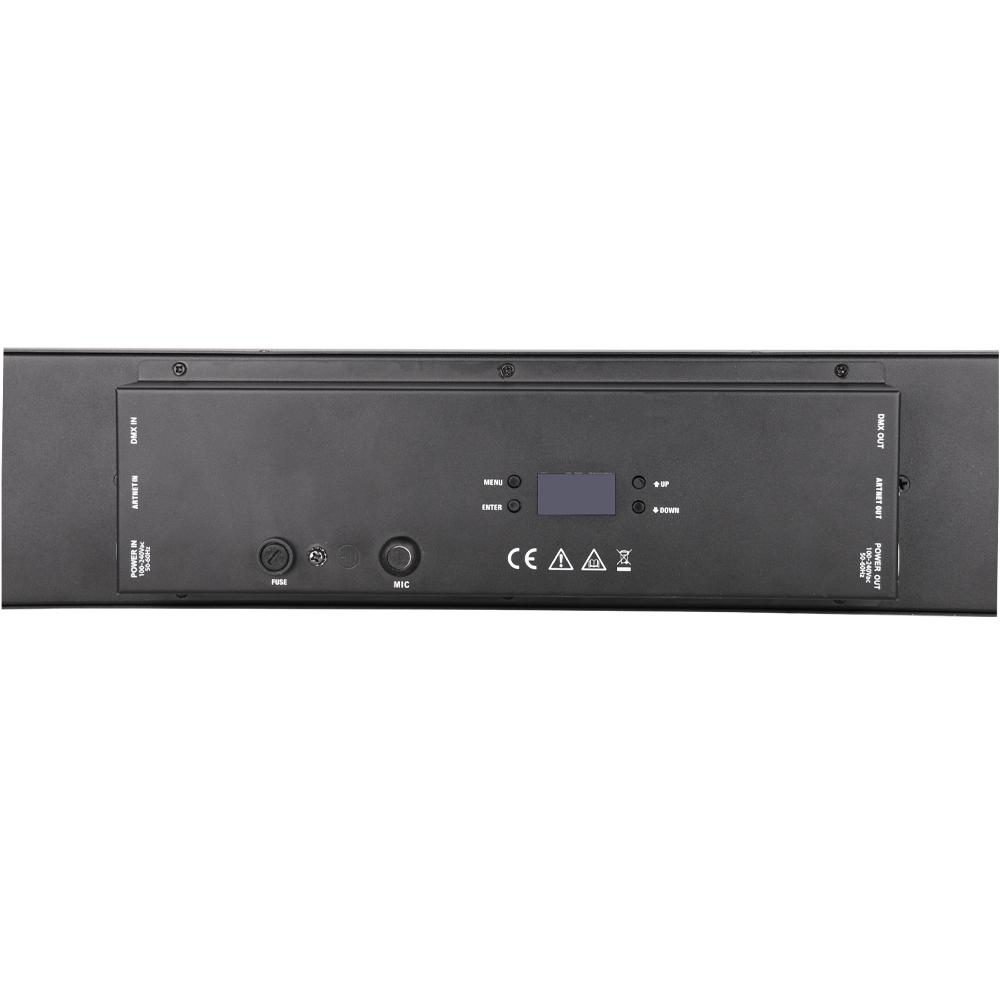

‑ Supports DMX512,Art‑Net,RDM,master‑slave & sound‑control,1.3‑inch OLED display for quick onsite parameter adjustment

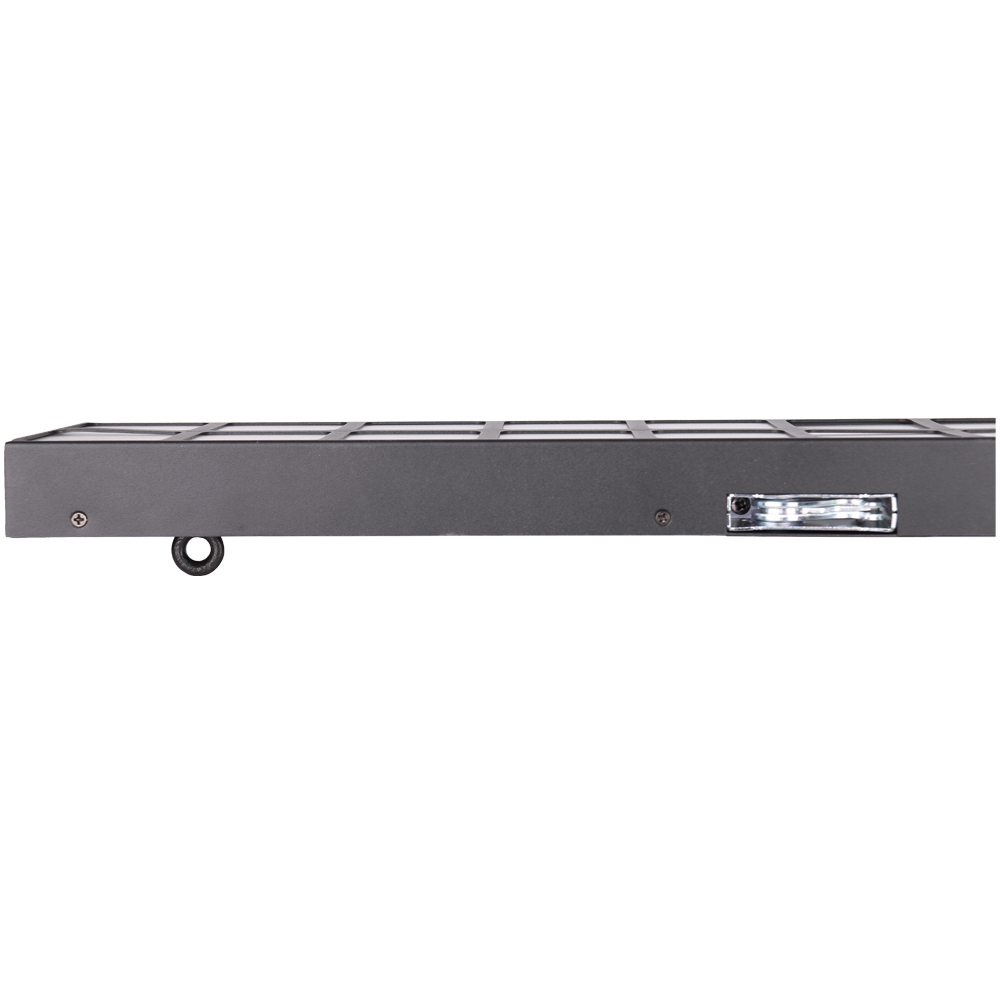

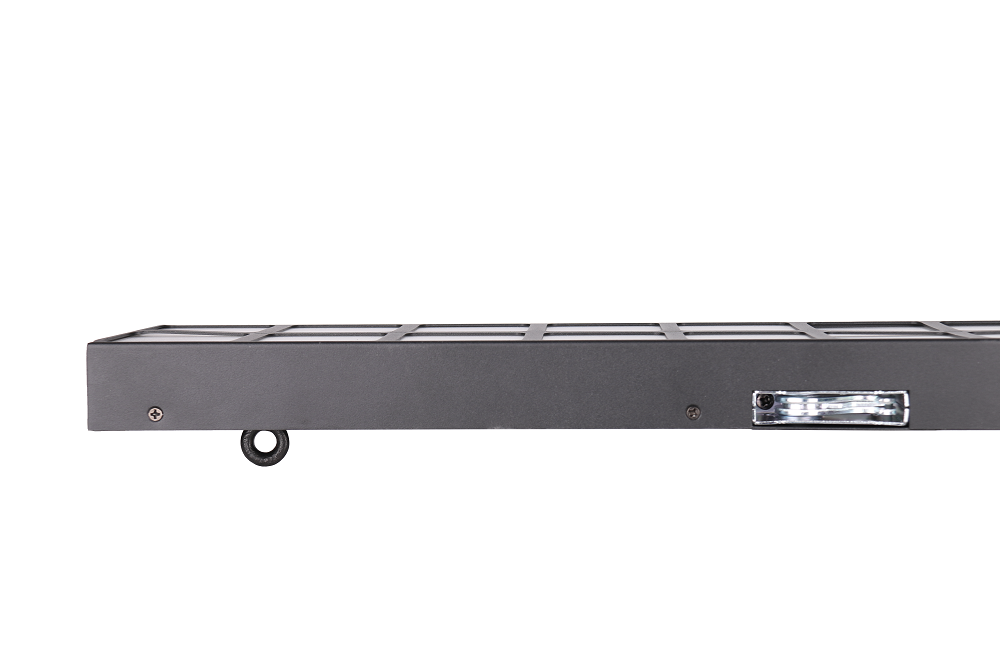

‑ Flexible hanging or standing mounting,left‑right & up‑down cluster combination,adapts to diverse indoor stage layout demands
‑ Compact lightweight 3.9‑7.4kg cabinet,simple setup and teardown,cuts labor cost for frequent touring event deployments
You may be interested in… 🎉
Grab them before the offer ends!
$269.00 – $1,629.00
$255.55 – $1,547.55

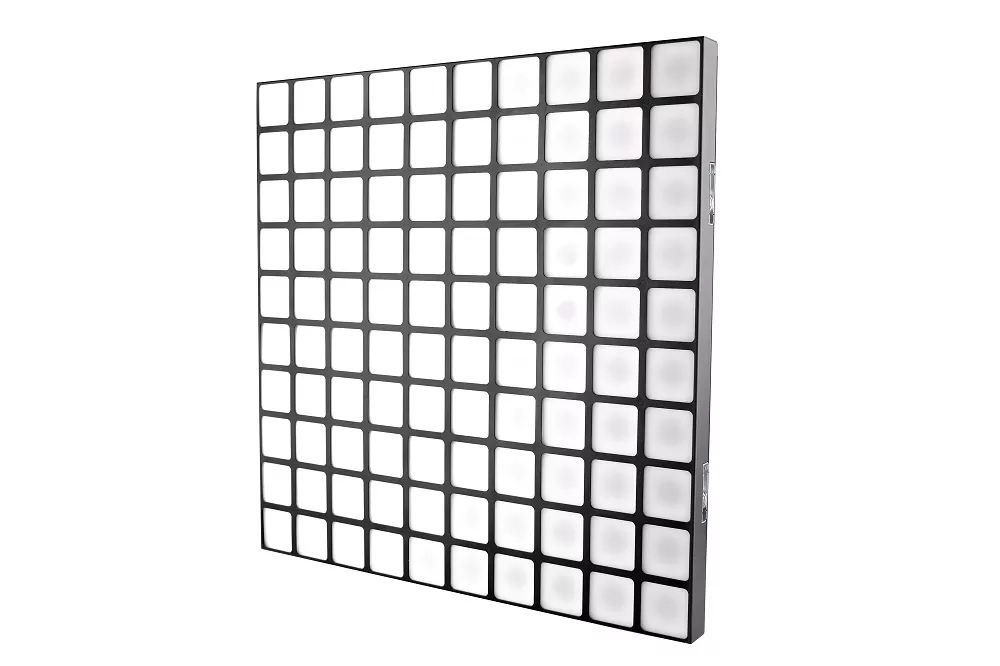

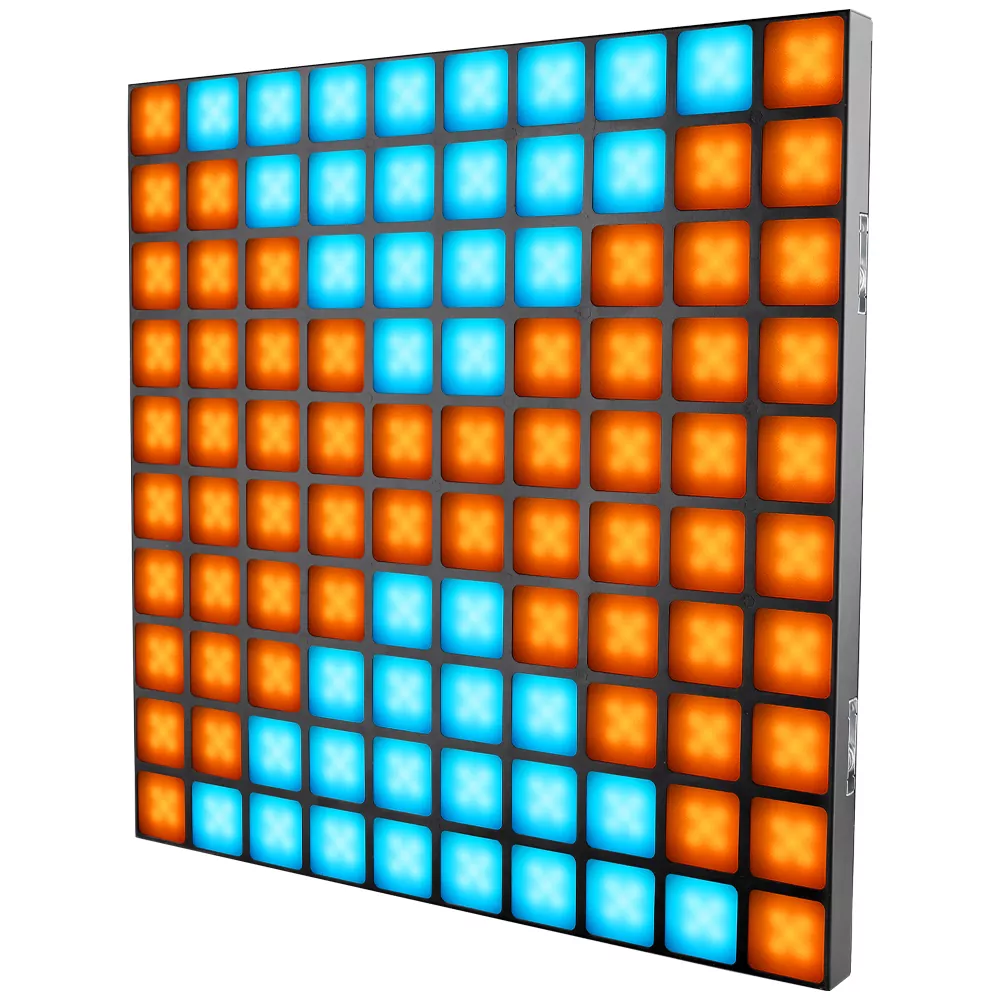

Square&Bar SMD‑RGB Matrix Light,500&200 LEDs,Dynamic Pixel Chase Effects for Event Rental&Stage Integrator:SMD‑RGB Matrix Light,0‑100% dimming,long‑life LED source,pixel‑mapping visuals,for bar and concert projects

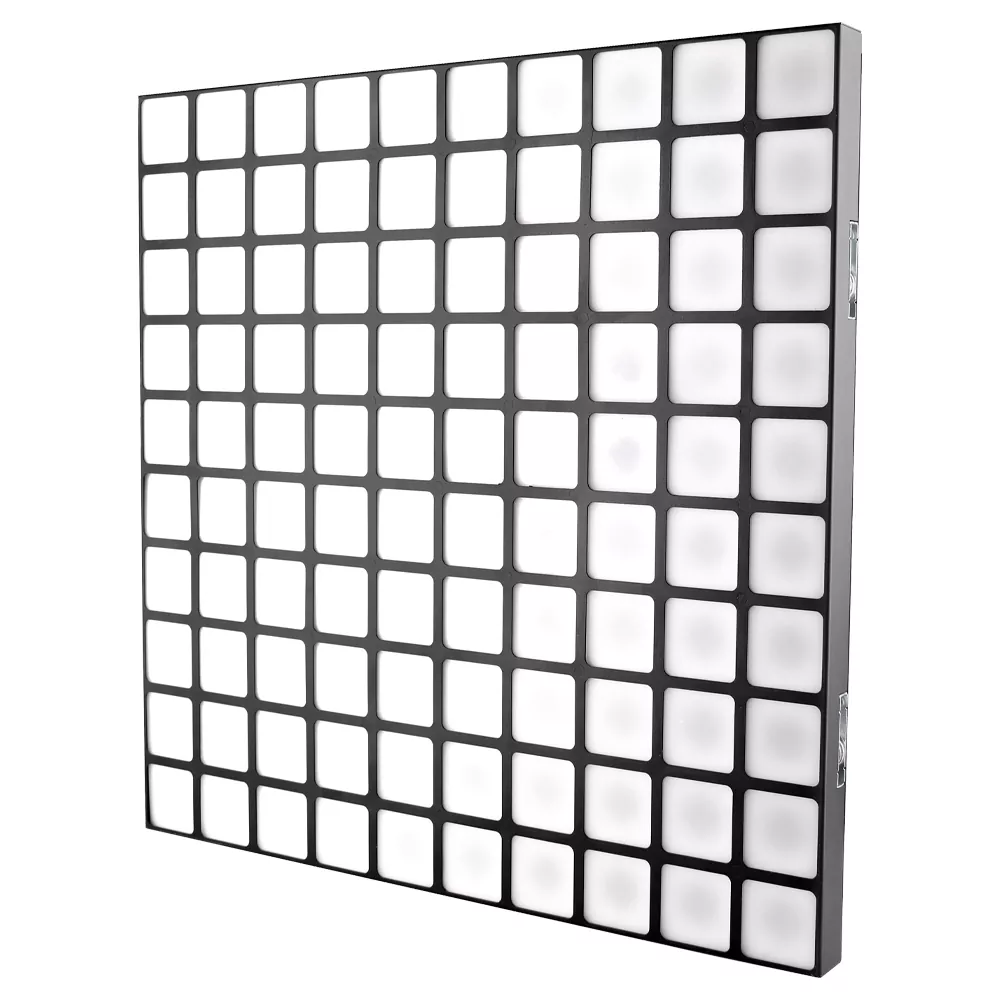

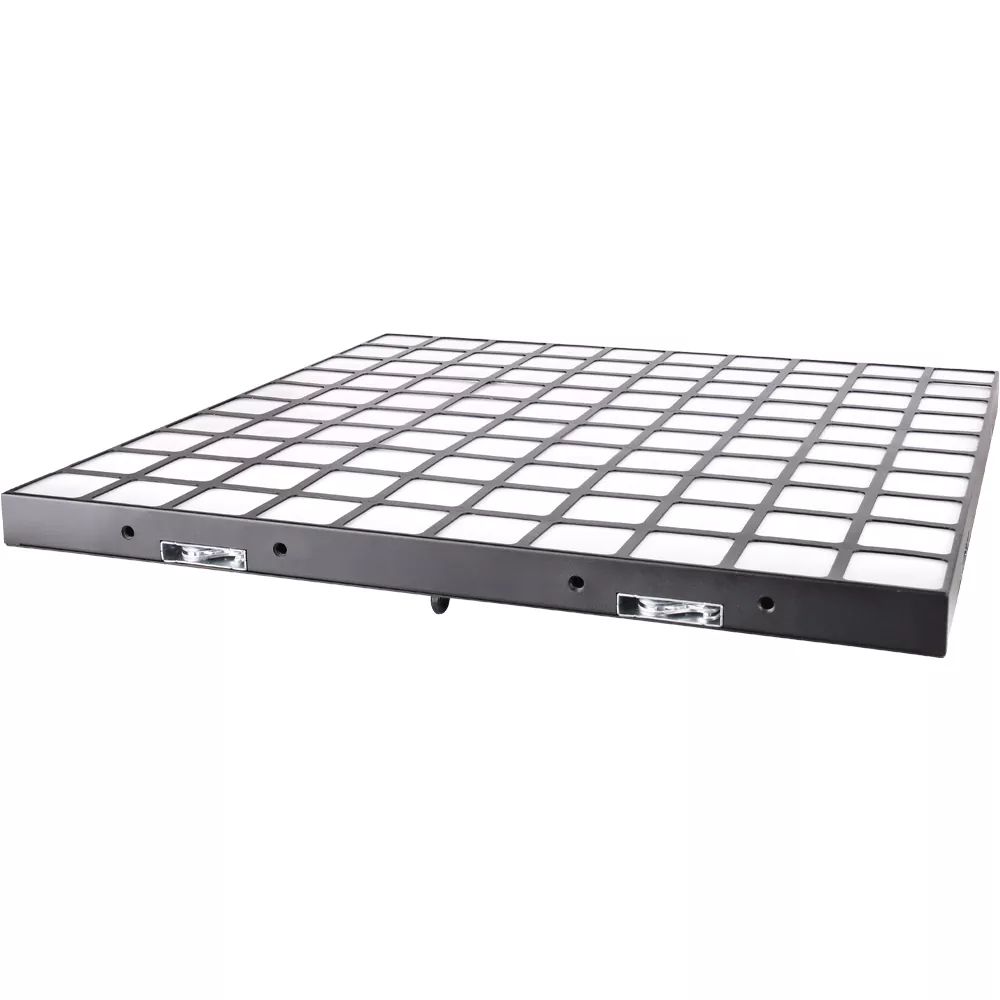

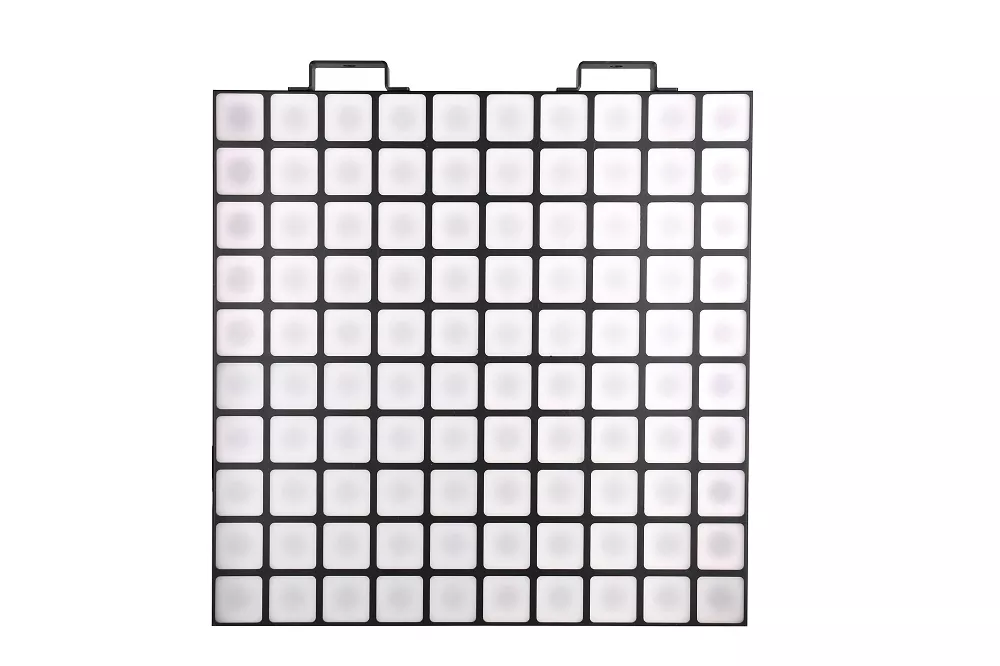

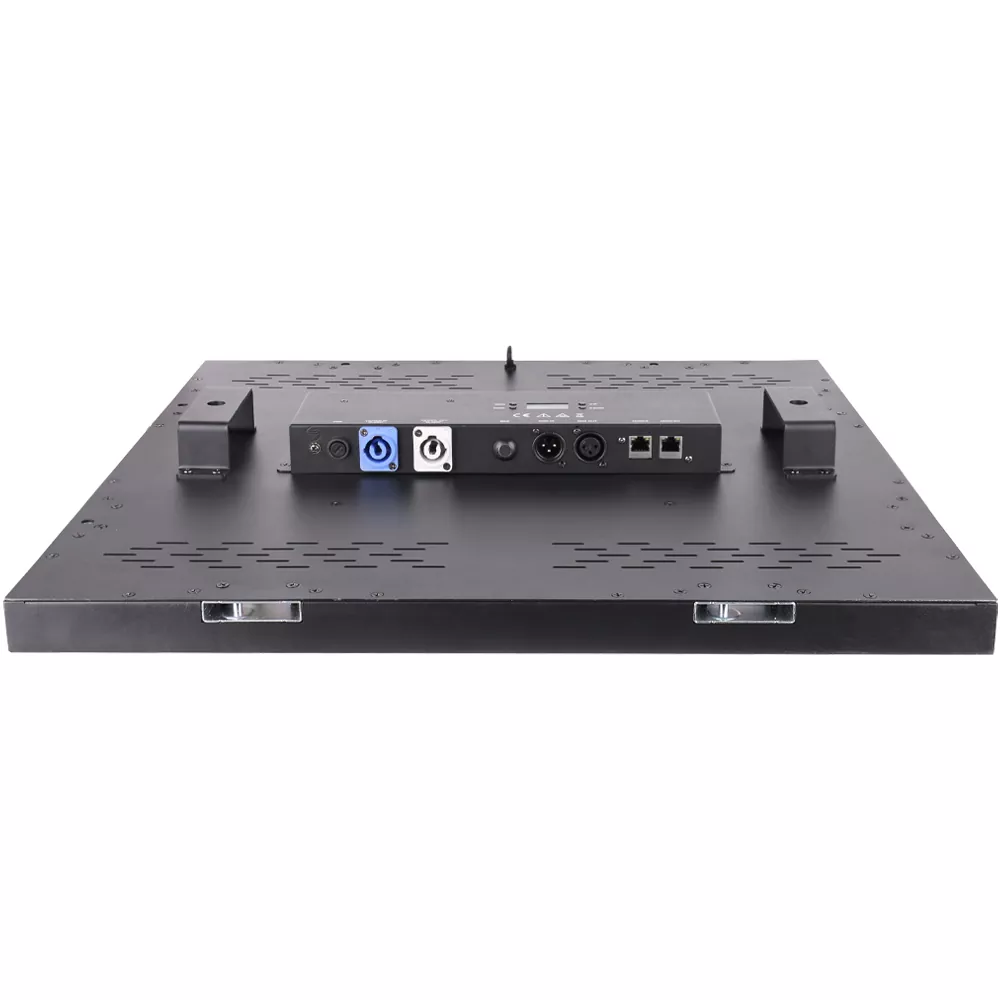

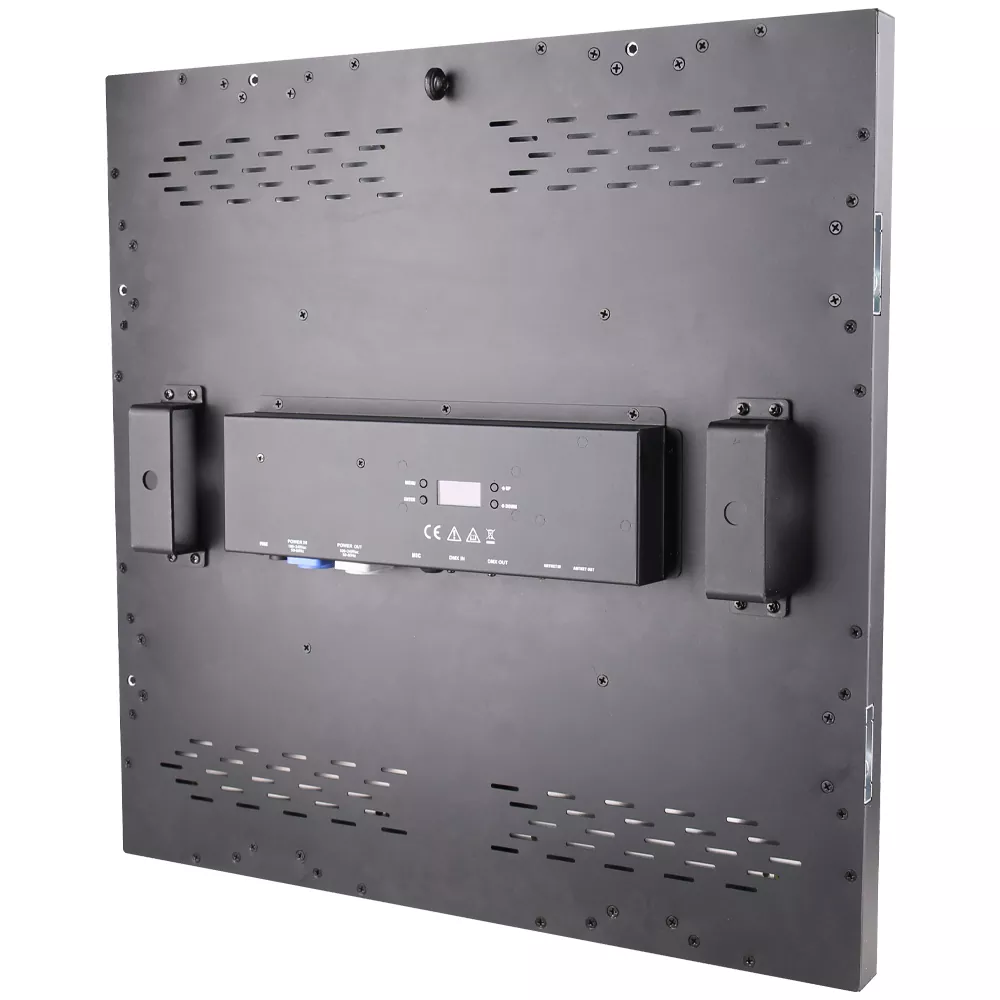

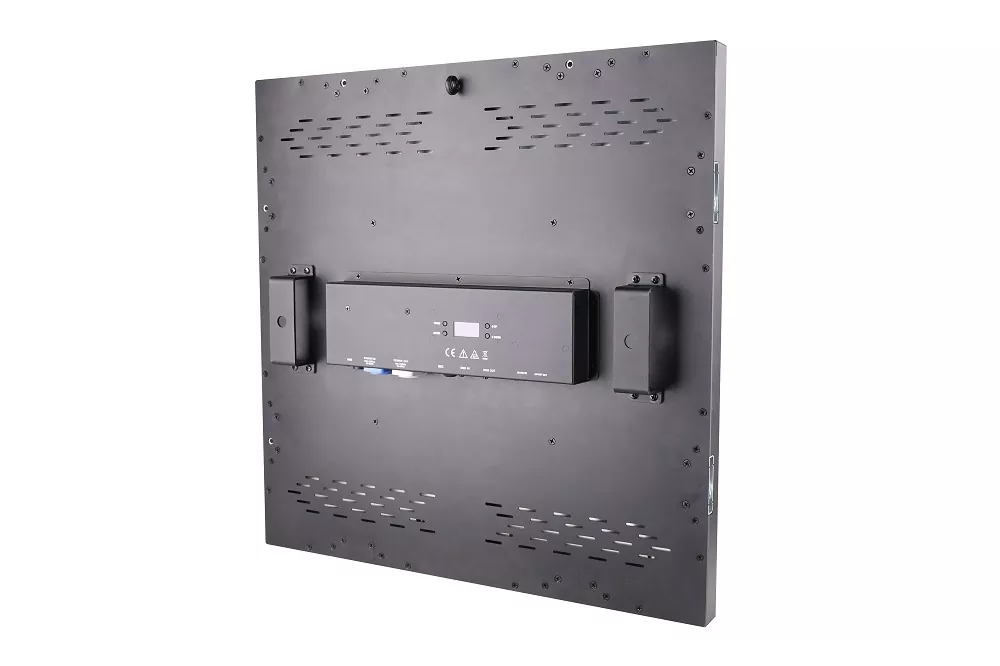

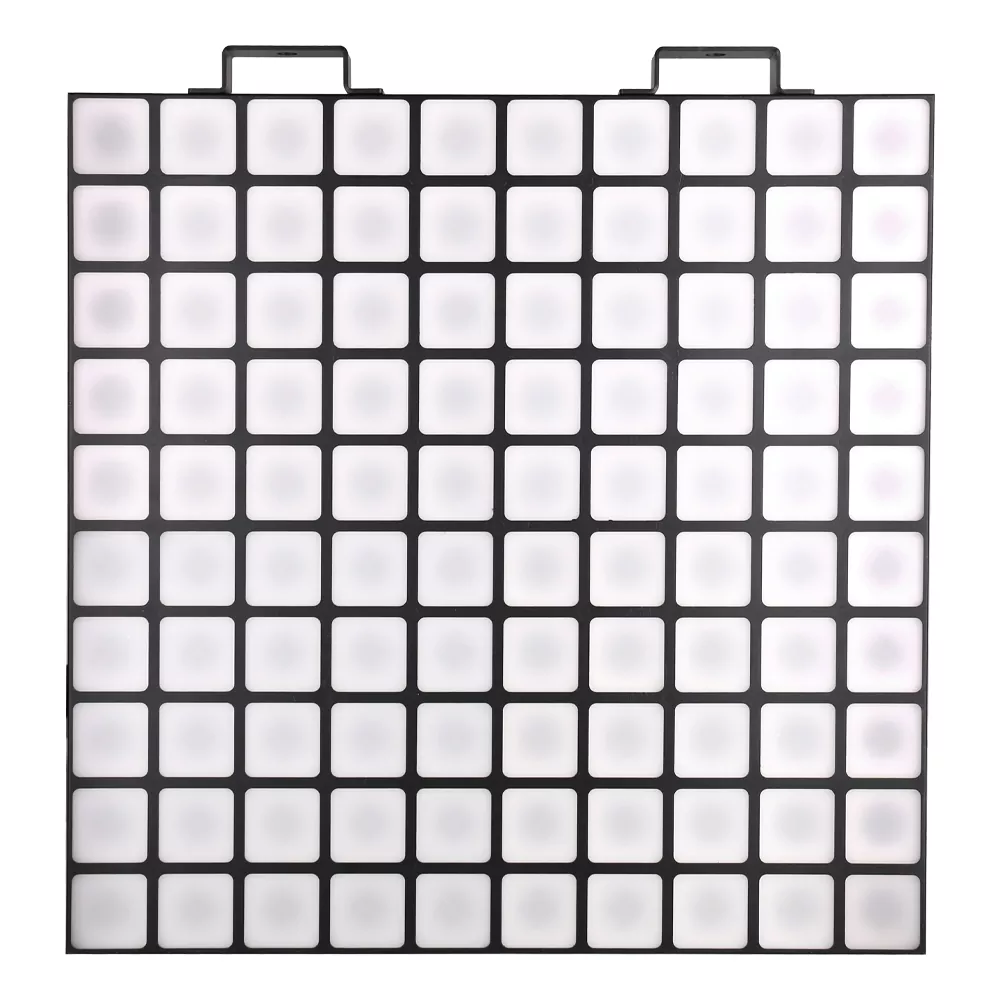

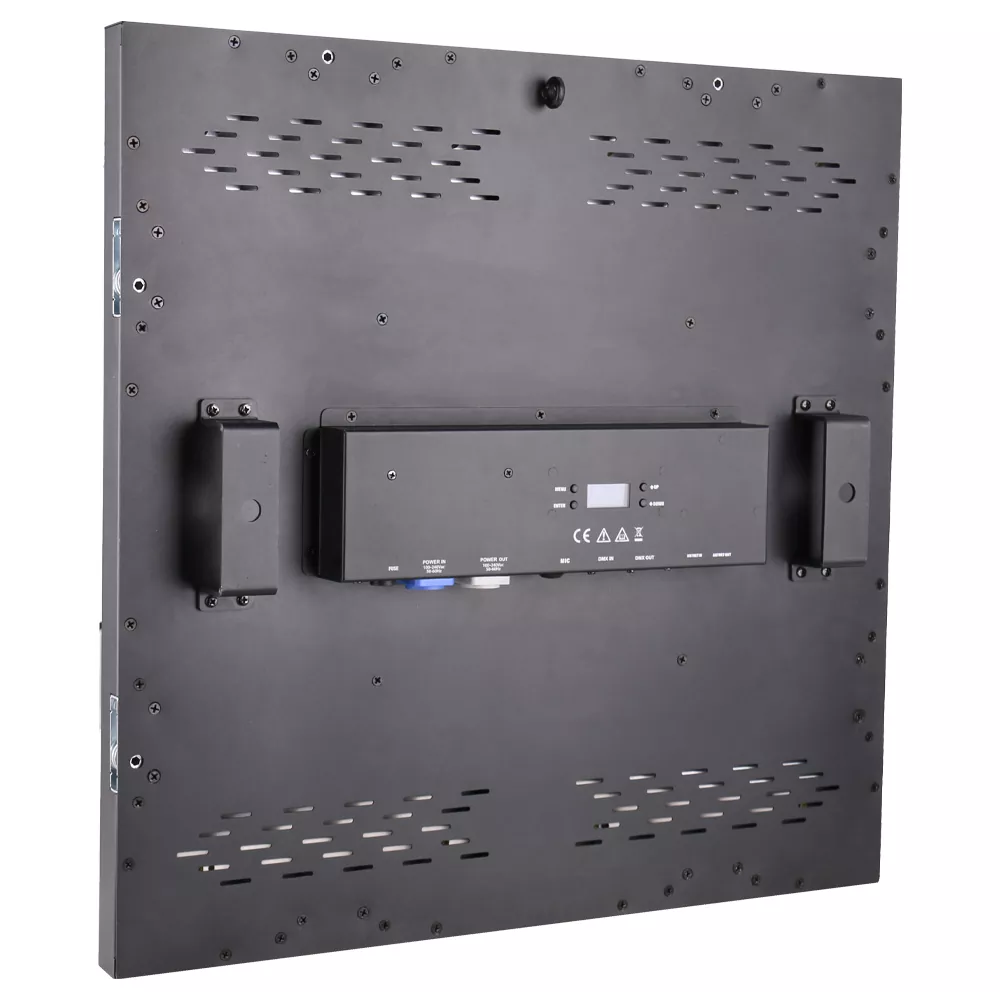

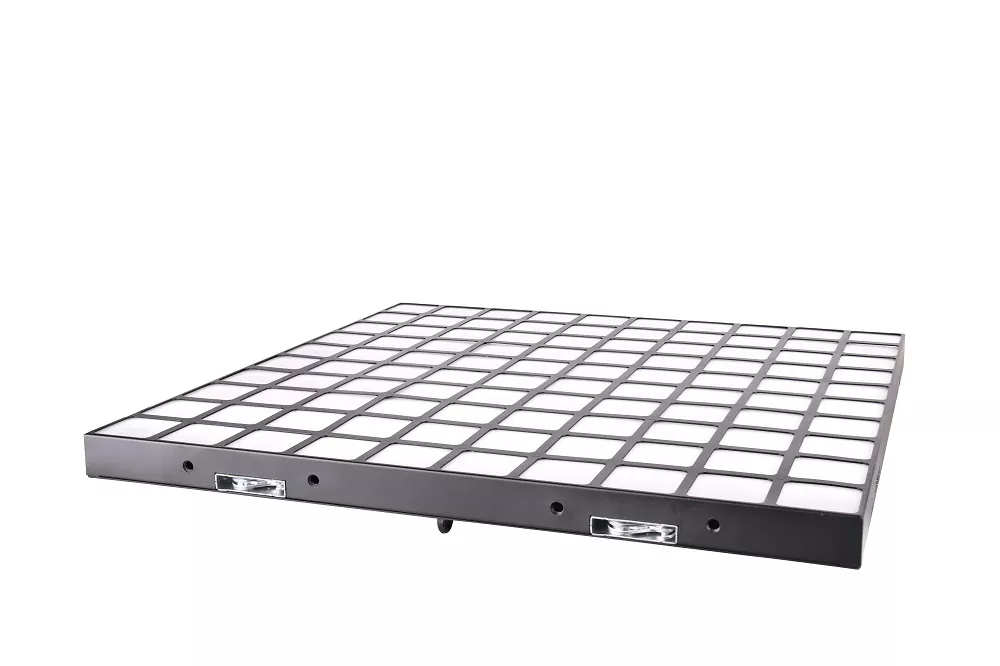

1. Master/slave mode, DMX mode, sound control mode, auto mode.
2. 1.3 inch OLED display.
3. Ideal for disco, club, bar, party, mobile DJ, concerts, etc.
4. Channel: 3CH, 5CH, 20CH, 300CH.
5. Operation mode: sound control, effect show, DMX, network, master/slave.
6. Voltage: AC100-240V 50-60Hz.
7. Fuse: F3AL250V.
8. Consumption power: P=120W.
9. Light source: 500×0.2W SMD-RGB
10. Lamp lumen value (beam angle 65°）
Red: @1m 250 Lux
Green: @1m650 Lux
Blue: @1m160 Lux
RGB: @1m 1000 Lux
11. Net weight: 7.4kg
12. Size: 550*550*70mm

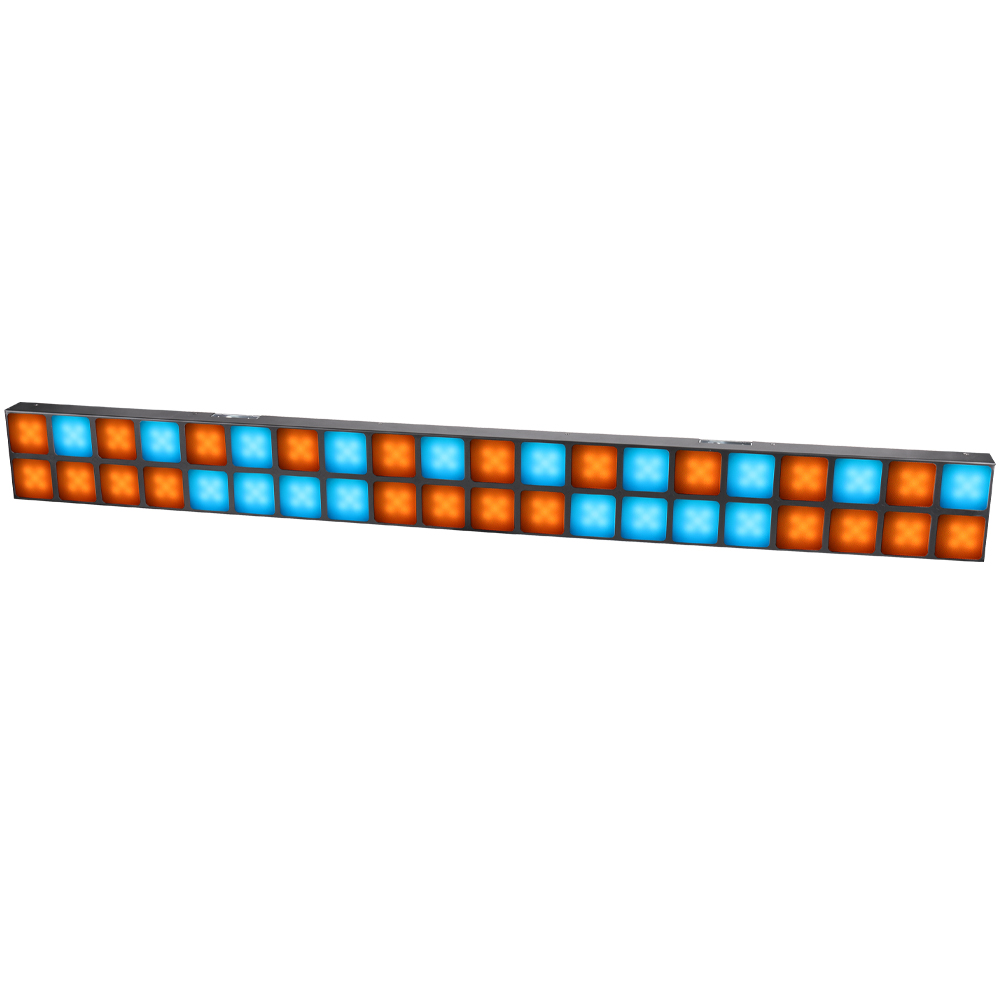

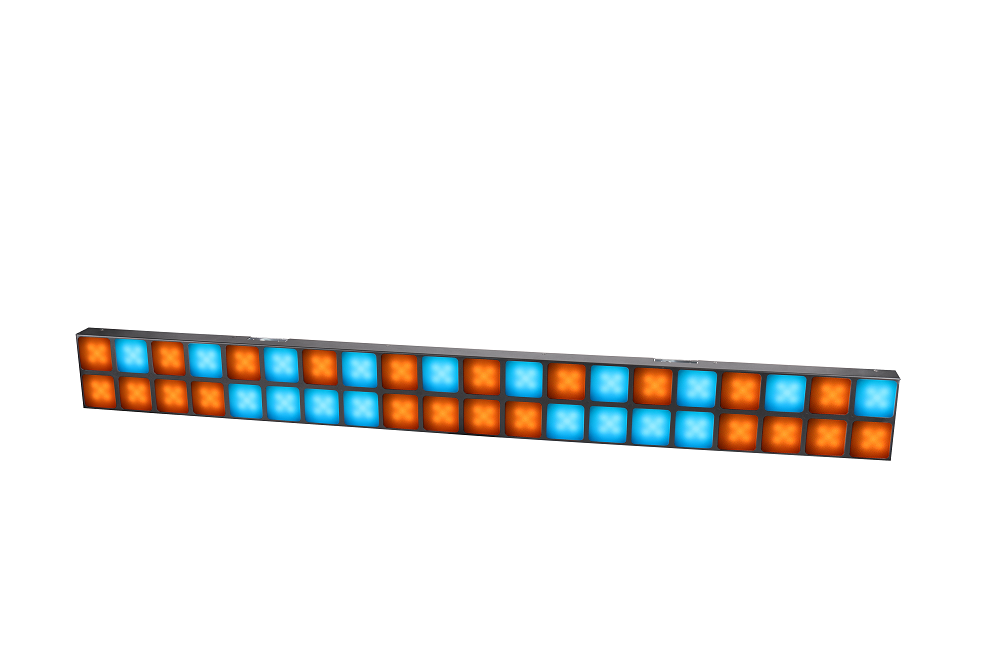

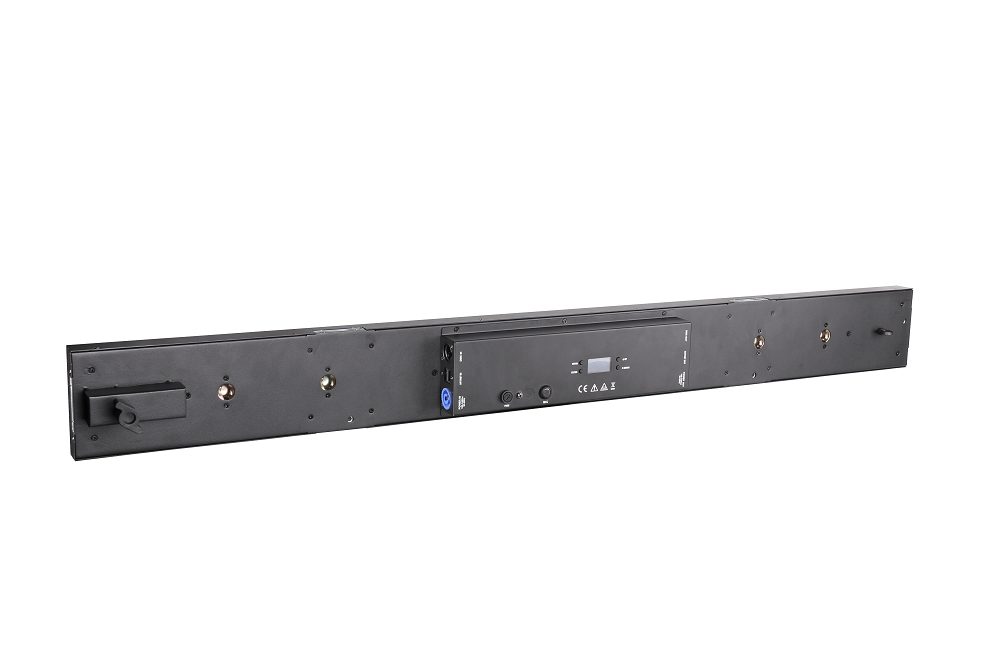

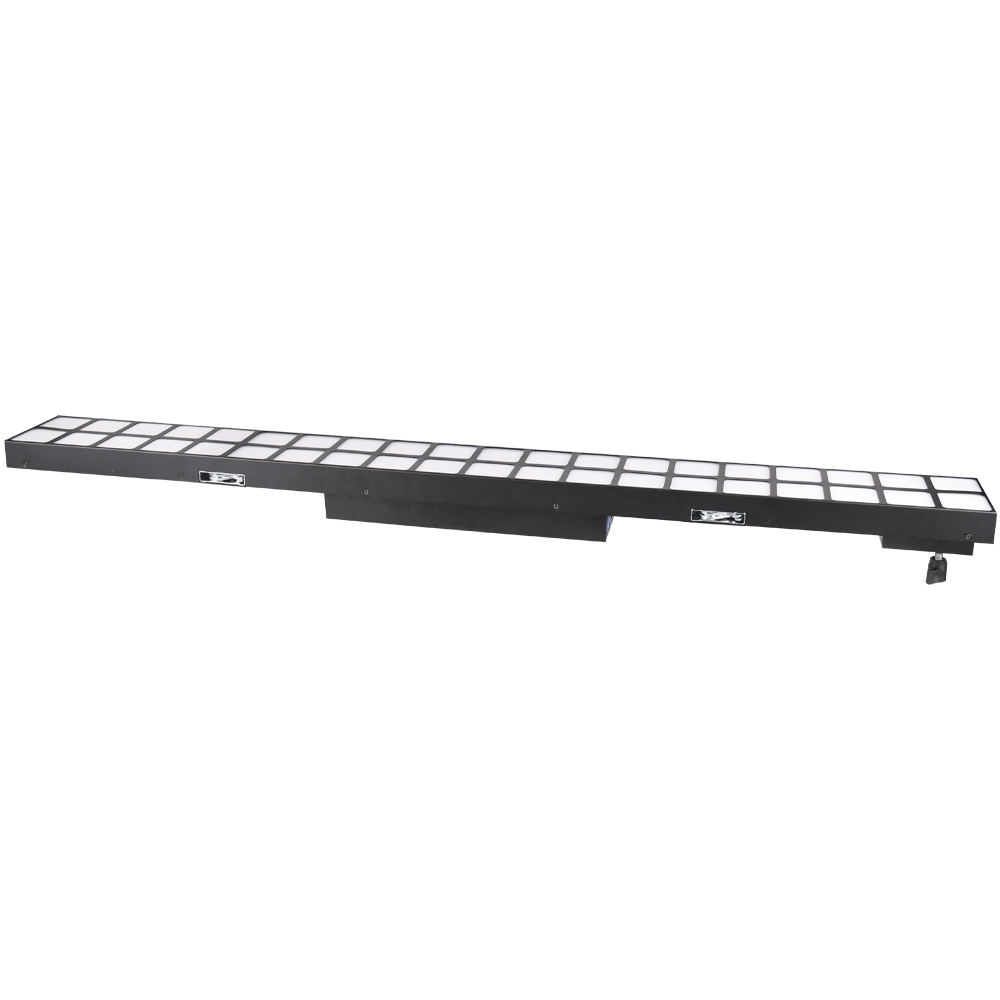

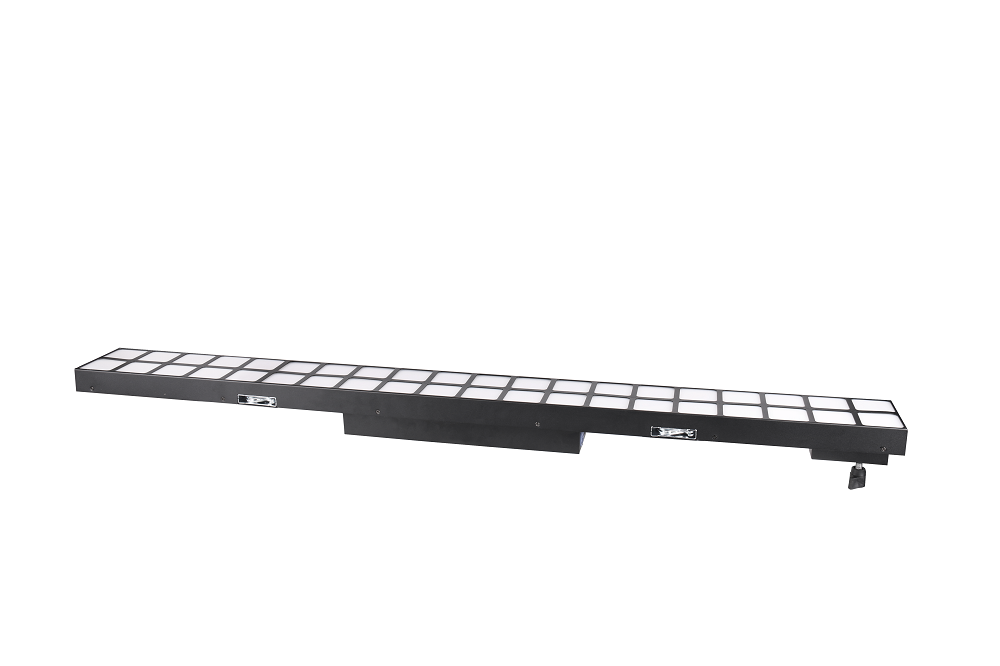

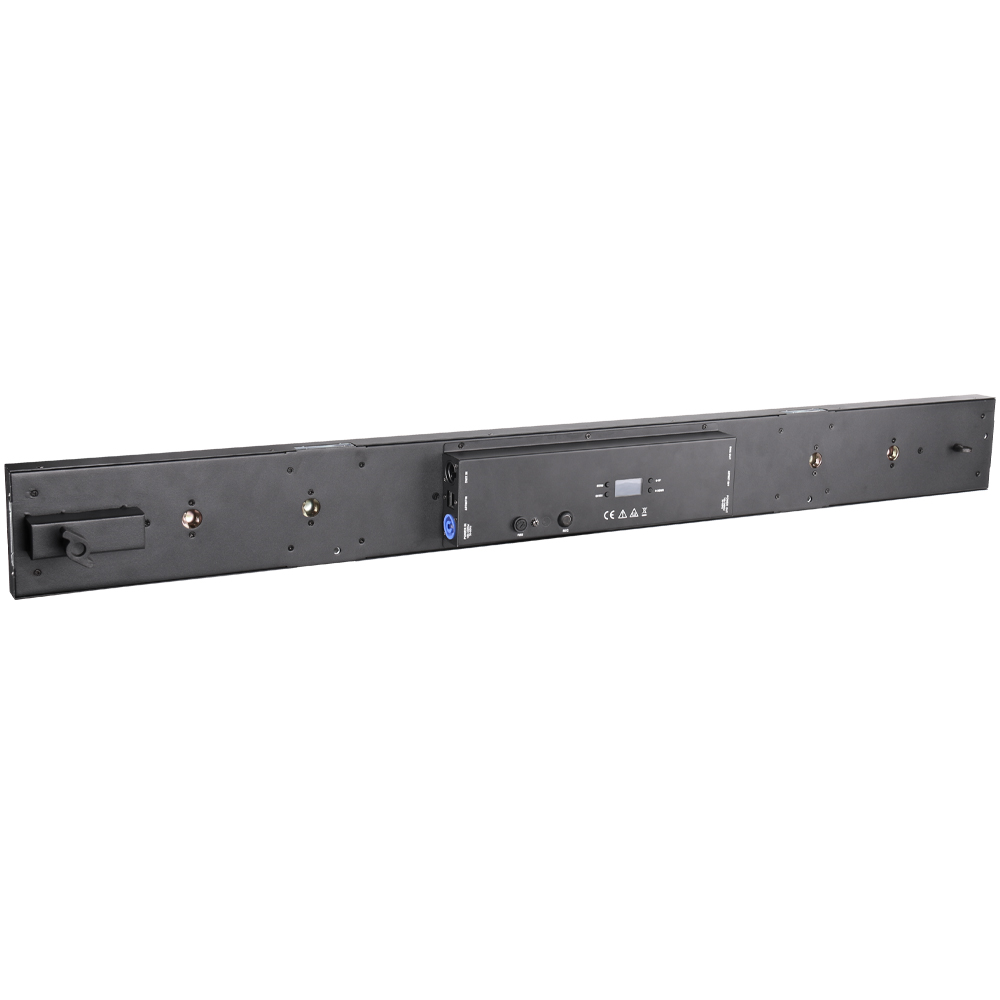

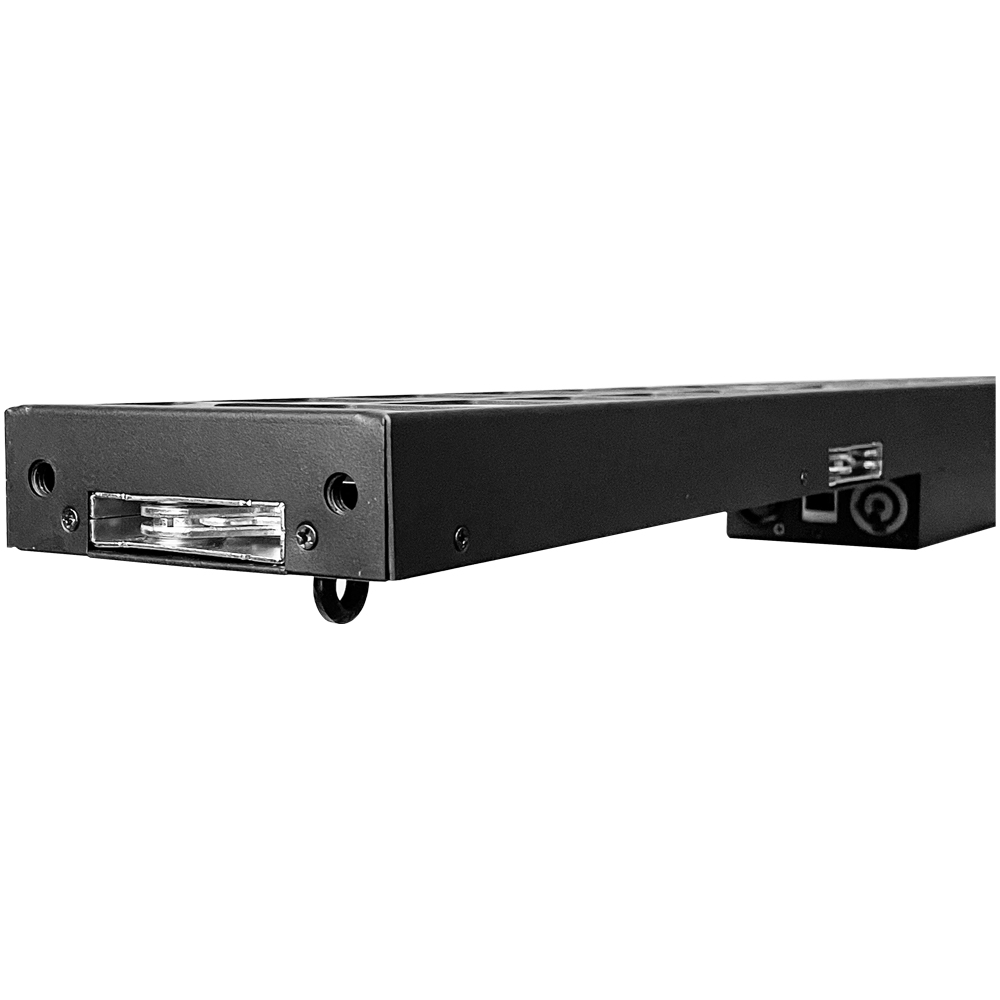

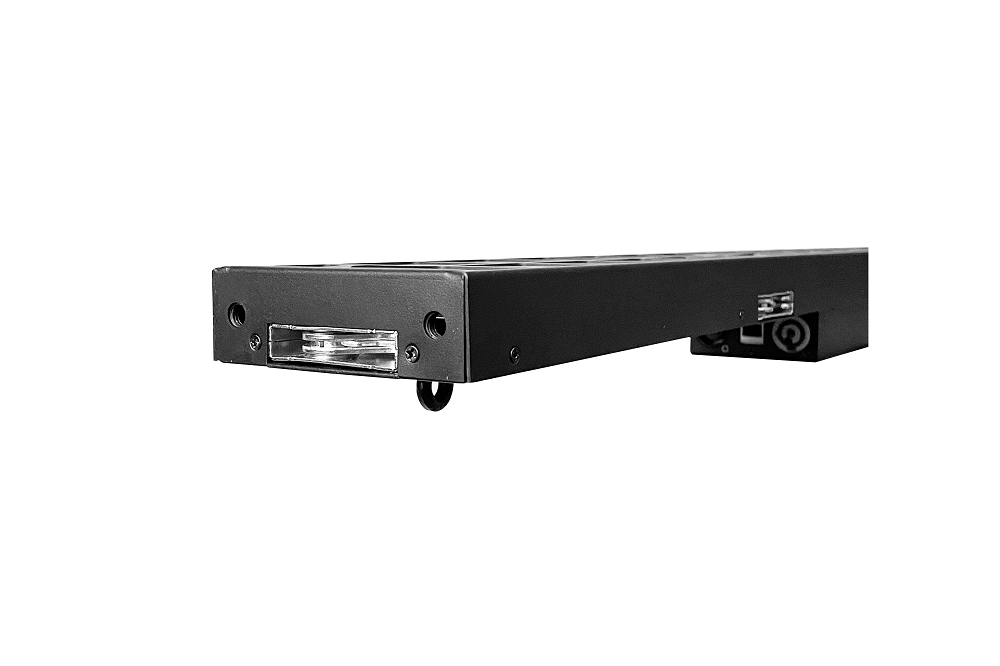

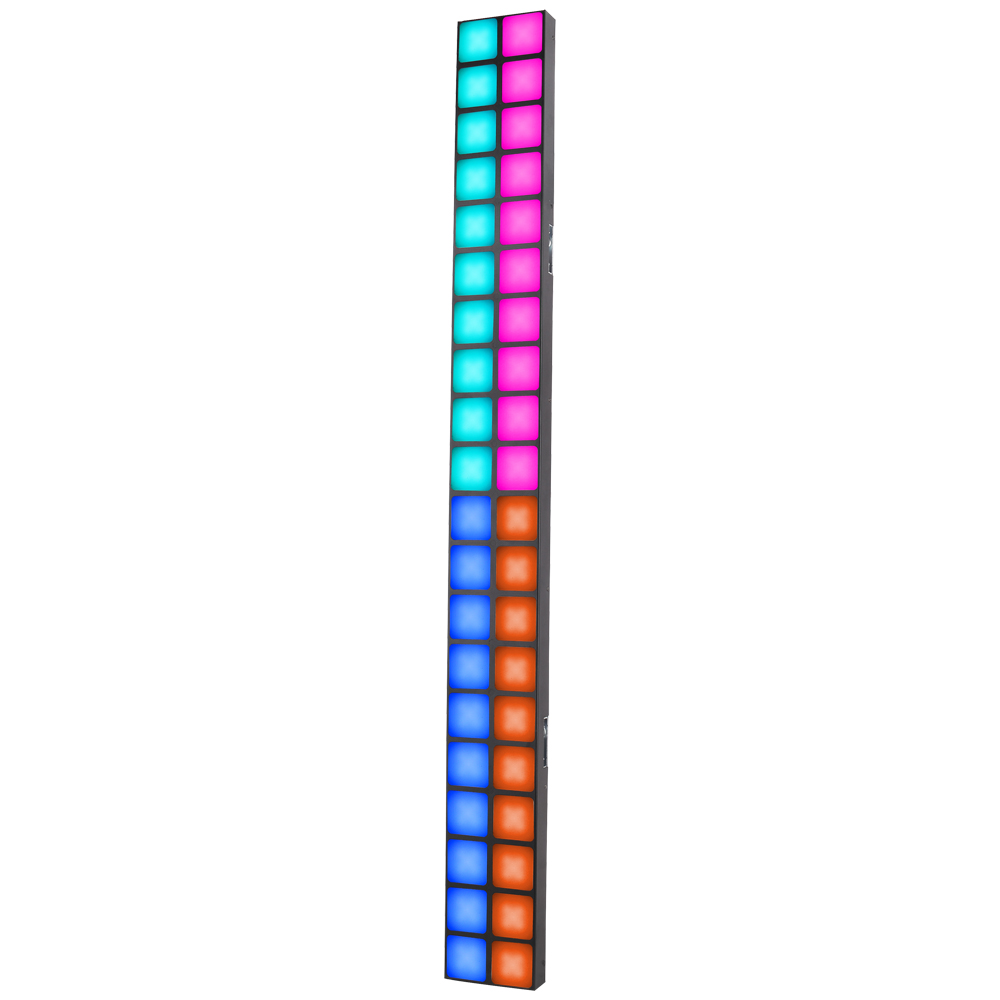

1. Master/slave mode, DMX mode, sound control mode, auto mode.

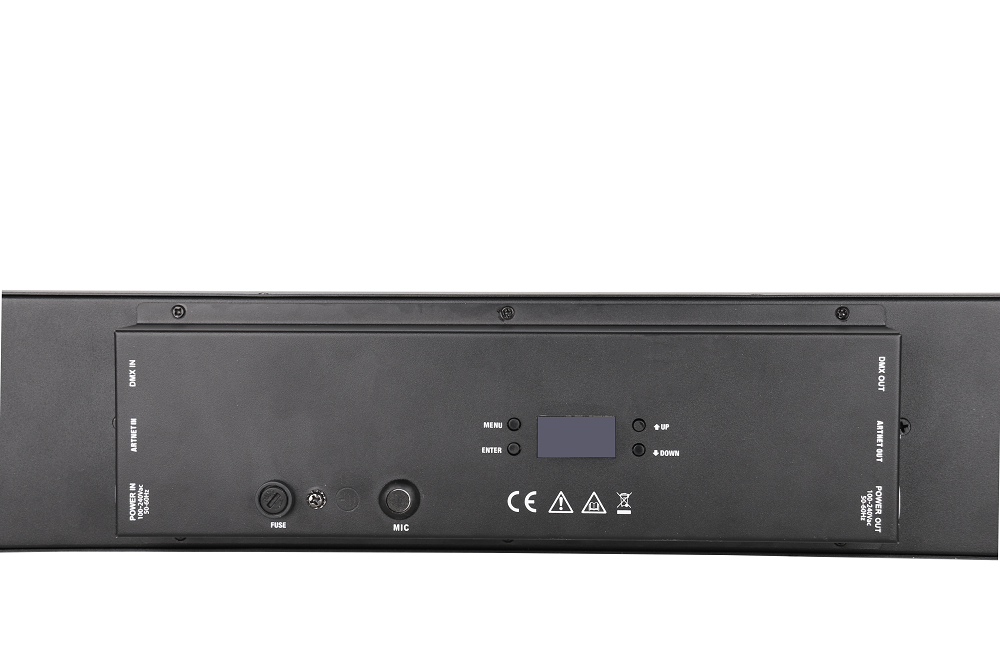

2. 1.3 inch OLED display.
3. Ideal for disco, club, bar, party, mobile DJ, concerts, etc.
4. Channel: 3CH, 5CH, 17CH, 80CH, 120CH.
5. Operation mode: DMX512,Master slave,Stand-alone ,Sound ,RDM ,ART-NET
6. Voltage: AC100-240V 50-60Hz.
7. Fuse: F3AL250V.
8. Consumption power: P=60W.
9. Light source: 200×0.2W SMD-RGB
10. Net weight: 3.9kg
11. Fixture size: 1100*110*74mm

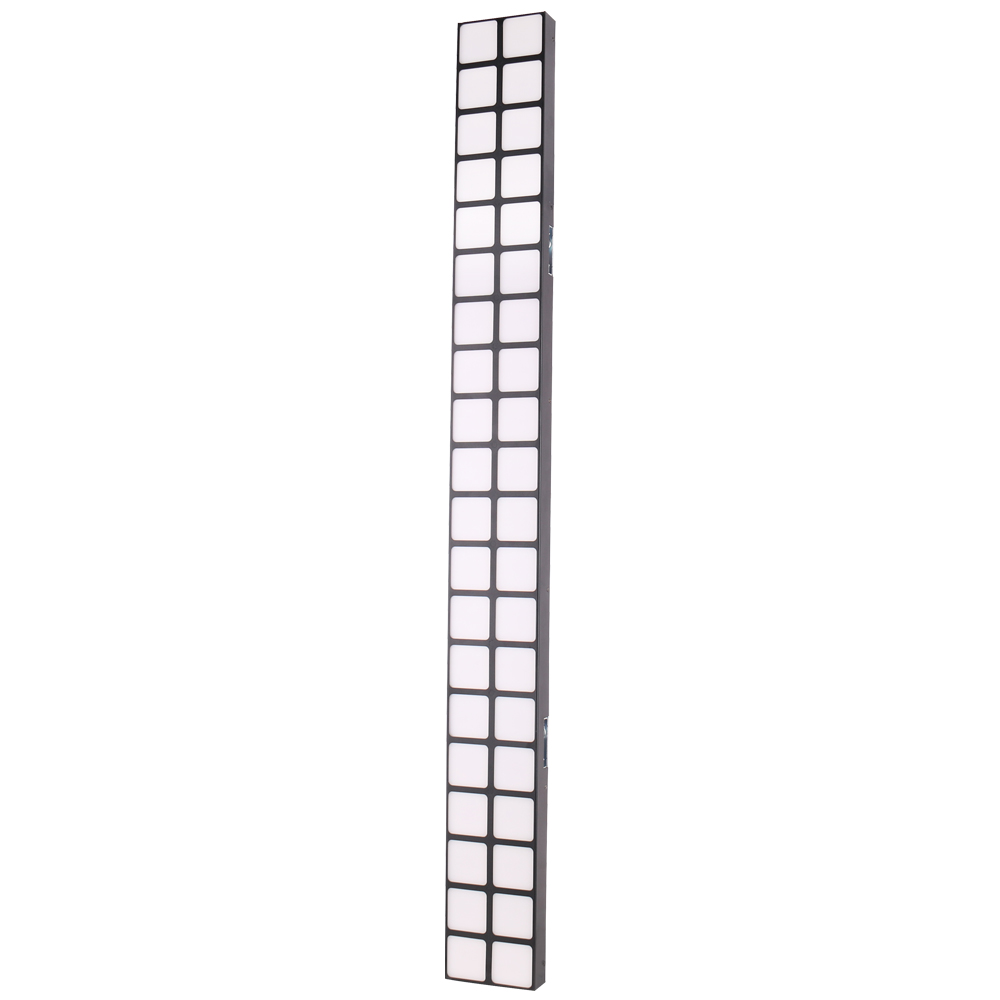

12. Ways of cluster: left-right / up-down.
13. Ways of Installation: hanging/standing:
14. Lumen (beam angle 65°）:
Red: @1m 390 Lux
Green: @1m 220 Lux
Blue: @1m 60 Lux
RGB: @1m 390 Lux
15. Lifetime of light source :30000hrs
16. Dimming :0-100%dimming
| Weight | 14 kg |
|---|---|
| Dimensions | 65 × 65 × 16 cm |
| Power supply | Voltage: AC100-240V 50-60Hz. |
| Channel | 3CH, 5CH, 20CH, 300CH. |
| Light source | 500×0.2W SMD-RGB |
| Lamp lumen | Red: @1m 250 Lux |
| Beam angle | 65° |
| Operation mode | sound control, effect show, DMX, network, master/slave. |
| Application | mobile DJ gig, nightclub disco venue, bar lounge, wedding gala banquet, private theme party, live‑band indoor concert, corporate indoor showcase, fashion runway, church youth activity, small‑scale indoor touring show |
