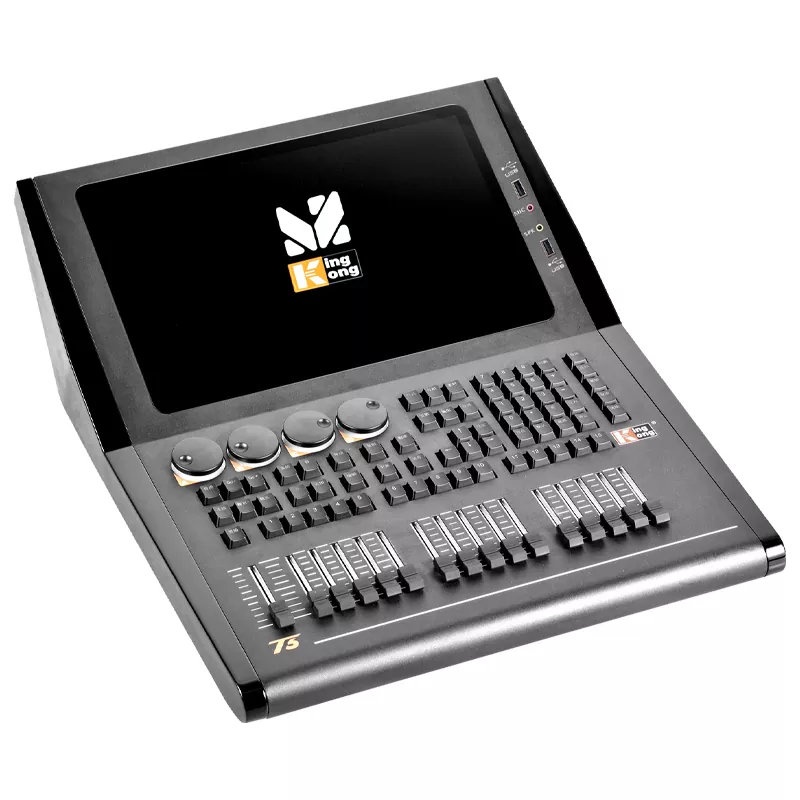

T3 Touch DMX Lighting Console Ubuntu Custom Multi-Language OS 4G RAM Quad-Core CPU 15.6inch Touch Screen 4 Isolated DMX Ports ART-Net Extendable Up To 4096 DMX Channels Stage Controller RJ45 LAN WIFI Dual Console Universal Voltage Indoor Outdoor Event Lighting Unit

T3 Touch DMX Lighting Console Ubuntu Custom Multi-Language OS 4G RAM Quad-Core CPU 15.6inch Touch Screen 4 Isolated DMX Ports ART-Net Extendable Up To 4096 DMX Channels Stage Controller RJ45 LAN WIFI Dual Console Universal Voltage Indoor Outdoor Event Lighting Unit

• Custom-built full-Chinese OS based on Ubuntu Linux, stable against virus; supports Chinese, English, Portuguese, Vietnamese, Traditional Chinese and optimized for domestic operating habits.
• Adopts industrial-grade mainboard with onboard integrated CPU, RAM and hard disk for outstanding stability.
• Equipped with 4GB RAM, Quad-core CPU and 15.6-inch HD capacitive touch screen.

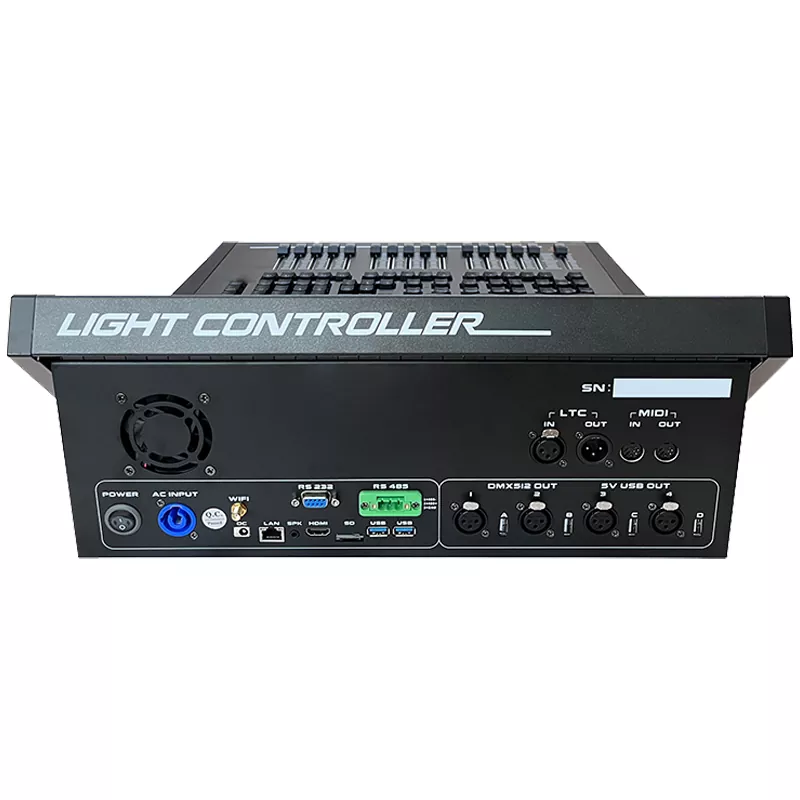

• 4 optically isolated DMX512 outputs compliant with DMX512/1990; fixed 2048 DMX channels, expand to 4096 channels via ART-Net with extra 4 virtual outputs.
• All faders feature smooth damped track for precise real-time data without delay or value jumping.
• Entire set adopts brand-new original components to avoid refurbished accessories.
• 6 USB ports: 4 power-enabled for WIFI dongle, 2 for U-disk data import & export.
• 4 rotary encoders for quick fixture attribute adjustment.
• 1 100Mbps Ethernet port with TCP/IP, TCP/UDP/485 trigger; links simulation software for offline programming and third-party central control docking.
• Built-in WIFI module for wireless network connection.
• Dual-console hot backup: seamless switchover to standby unit once the primary fails.
• Supports wired & wireless remote control via mobile APP, tablet and external wall controller.
• APP sorts scenes and programs to display operation flow for convenient on-site manipulation.
• User-defined startup & screen lock passwords to protect internal data.
• RDM function for remote fixture identification and address modification.
• Vector bitmap simulates venue layout to improve fixture positioning accuracy.
• Pre & post-production timeline clips boost efficiency during programming and live performance.
• Groupable patterns, importable & exportable project files enrich creative effects.
• Six fan modes adjustable via dedicated setting panel.
• Quick color selection through built-in color palette dialog box.
• Section arithmetic enables segmented playback of attribute, timing and pattern parameters.
• Custom rename or mark lamp groups, palettes and scenes for quick lookup.
• One-click lightshow plus built-in audio player for programming and rehearsal recording.
• Adopts XML fixture library; editor works both onboard and on PC for offline editing then file import.
• Stores up to 900 scenes with unlimited steps for multi-step cues.
• 3 classification types of lamp groups, total 300 groups supporting up to 1600 fixtures.
• 10 palette categories with total storage for 1000 palettes.
• Pre & post timeline resources improve programming and live operation efficiency.
• Preloaded 160 fixed shapes and 31 curve effects with fully editable parameters.
• Saves 200 independent shows for customized lightshow production.
• Load and combine up to 60 pattern effects simultaneously.
• Add subsets inside fixture library for fast attribute selection.
• Modify fixture address, output line and button layout right after fixture patch.
• Backup all shows, libraries, audio and pattern files to external U-disk against data loss.
• Custom fixture thumbnail for intuitive equipment info display on screen.
• Scheduled auto start/stop for programs and scenes; auto power on/off to realize unattended running.
• Auto-generate music waveform for beat marking; snap cues onto markers to speed up lightshow programming.
• Auto-fill function inserts saved scenes between beat markers to drastically cut editing time.
• Detailed timeline displays audio duration, cue runtime and marker position for precise audio-light sync.
• Drag cue bars freely; bars auto-snap onto beat markers for quick timing revision.
• Export beat markers directly or import pre-marked files from Adobe Audition.
• Visual touch cutting control for moving beam cut fixtures.
• 1 high-quality microphone input and 1 high-fidelity audio output jack.
• Rated Power: AC 100-240V
• Bare Console Size:470560200mm / N.W:8.8KG
• Carton Dimension:660540295mm / G.W:10.3KG
