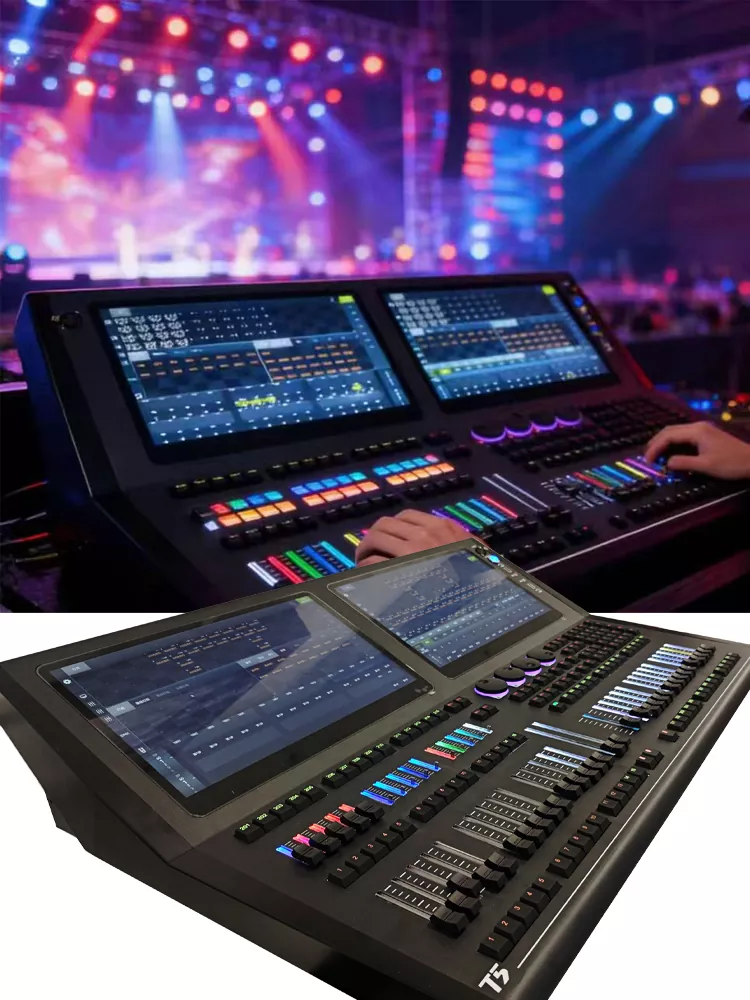

T5 Intelligent Lighting Console Independent Patent Custom Linux Intel CPU 8G RAM 128G SSD Dual 15.6Inch Capacitive Touch 12DMX ART-Net 16384CH Wireless APP Remote Stage Controller Live Performance Equipment Indoor Outdoor Large Event Lighting Device with Case

T5 Intelligent Lighting Console Independent Patent Custom Linux Intel CPU 8G RAM 128G SSD Dual 15.6Inch Capacitive Touch 12DMX ART-Net 16384CH Wireless APP Remote Stage Controller Live Performance Equipment Indoor Outdoor Large Event Lighting Device with Case

• Own independent intellectual property rights, appearance patents, software copyright and IC design certificates.
• Custom Linux-based operating system delivers stable and smooth running performance.
• Equipped with Intel CPU, 8GB RAM, industrial mainboard and 128GB Kingston SSD.
• 12 DMX512 outputs for 3072 native channels, expandable to 32 ports and 16384 DMX channels.
• 45 playback faders enable simultaneous running of 45 cue programs; built-in AB crossfade function.
• Four adjustable parameter encoders; compatible with MIDI and LTC timecode protocols.
• One Gigabit Ethernet port supporting ART-Net connection.
• Integrated wireless transceiver for direct PC & mobile APP control without extra router.
• 12 USB ports: six for data transmission and six for power supply of wireless adapters.
• Two HD audio outputs and two microphone inputs for lightshow audio matching.
• Dual 15.6-inch capacitive touch screens, 80% higher sensitivity than resistive screens with zero delay.
• Reserved interface for working goose-neck lamp.
• Multilingual UI including English, Portuguese, Traditional Chinese, Vietnamese and French for free switching.
• 3000 fixture assignment keys, max 3000 patched fixtures and storage for 300 fixture groups.
• Palettes sorted into 10 categories with 200 per group, total 2000 stored palettes.
• Stores 2700 playback scenes with unlimited steps for chase sequences.
• Preloaded 252 fixed graphics plus 43 editable curve effects via parameter adjustment.
• Up to 60 shape effects loadable and freely combined at once.
• Six fan effect modes adjustable via dedicated setting dialogue.
• Storage for 400 independent programmed shows.
• Quick color pick via color panel, adjustment faders and preset color bank in exclusive dialog.
• Layout simulation replicates actual site arrangement for precise fixture manipulation.
• Resizable working windows save as custom views for instant recall.
• Segment calculation enables split runtime control of attribute, timing and graphic parameters.
• Built-in UPS offers over 60-minute continuous operation after unexpected power cut.
• Onboard music player facilitates lightshow editing and rehearsal recording.
• Freehand graffiti and custom naming for all saved resources.
• XML fixture library with onboard editor editable on console or PC, customizable attribute subsets available.
• Supports UDP, RS232, DMX512 and TCP/IP for central control interconnection.
• Wireless remote control via mobile/tablet to classify and manage scenes, shows and power output without pre-recording.
• Real-time online linkage and playback control between two identical consoles.
• Directly modify fixture address codes, signal lines and key positions after patch setup.
• Back up all project documents to external storage to avoid data loss.
• User-defined access password protects internal console data.
• Upgraded program module auto-generates audio waveform for manual beat marking, scene snap and proprietary auto-fill; supports marker importing from Adobe Audition.
• Import and export lightshow cue markers to & from AU audio software.
• Custom scheduled tasks for auto shutdown, scene startup and termination on specified dates or daily timing.
• Rated Voltage: AC100V~240V, 50/60Hz
• Rated Power:72W
• Product Dimension:860560195mm
