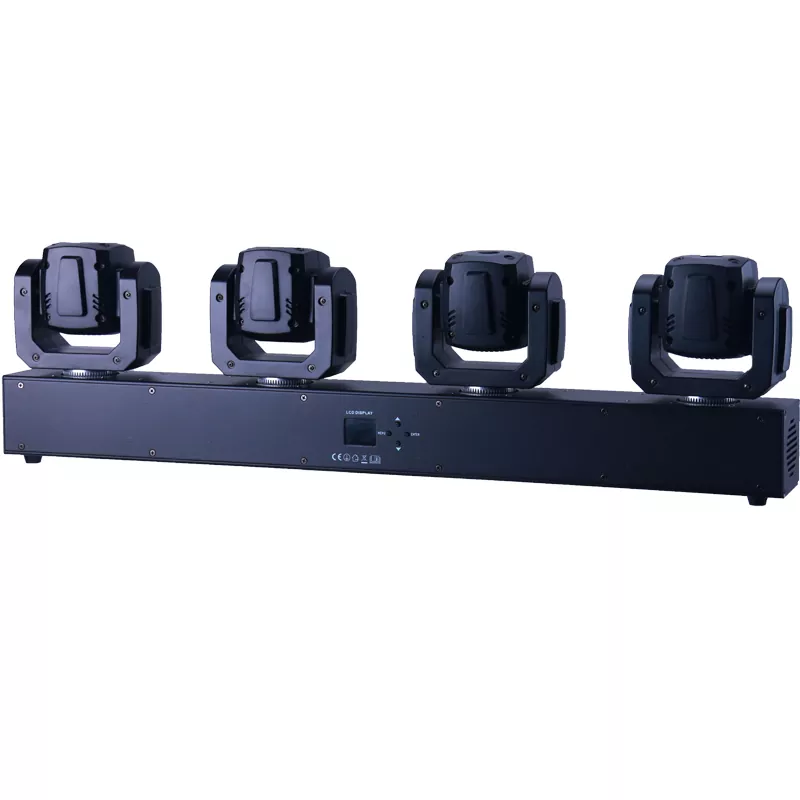

4‑Head 500mW RGB 3‑In‑1 Laser Moving‑Head Bar Light

Compact 4‑Head Laser Beam Bar Light,10Kg Truss‑Mountable Party Concert Effect,Master‑Slave for Stage Rental Show

This 4 head 500mw rgb 3‑in‑1 laser moving head bar light is integrated four‑head indoor laser stage fixture built for mobile‑DJ crews, club operators and global touring‑rental fleets. Every moving head is fitted with 500mW RGB 3‑in‑1 laser diode(R200mW@638nm,G100mW@520nm,B200mW@450nm) and individual grating glass, total power consumption reaches 48W. It features sharp 1‑degree narrow beam angle with 18mm beam diameter @1m, 540° pan rotation and 200° tilt movement. Five switchable DMX channel modes:8CH/13CH/22CH/35CH/52CH. Working modes include DMX512, master‑slave synchronization, sound‑active trigger and auto‑run built‑in shows. 1.8‑inch TFT local display simplifies onsite setup. Fuse F3AL250V, universal AC100‑240V 50‑60Hz input, dimension 85.410.924cm, net‑weight 10kg, indoor‑only deployment, supports truss mounting.

For rental operators and venue integrators, assembling several separate single‑head laser units costs extra truss space, cabling work and setup time. Many multi‑head laser bars only provide low‑channel DMX settings and lack grating glass effect accessories, limiting creative laser pattern options for club and party shows. The 4 head 500mw rgb 3‑in‑1 laser moving head bar light solves these typical B‑end pain‑points for indoor mobile‑DJ and nightclub lighting workflows.shop‑category/led laser moving head light.

Optical & Mechanical Highlights of the 4 Head 500mW RGB 3‑In‑1 Laser Moving Head Bar Light

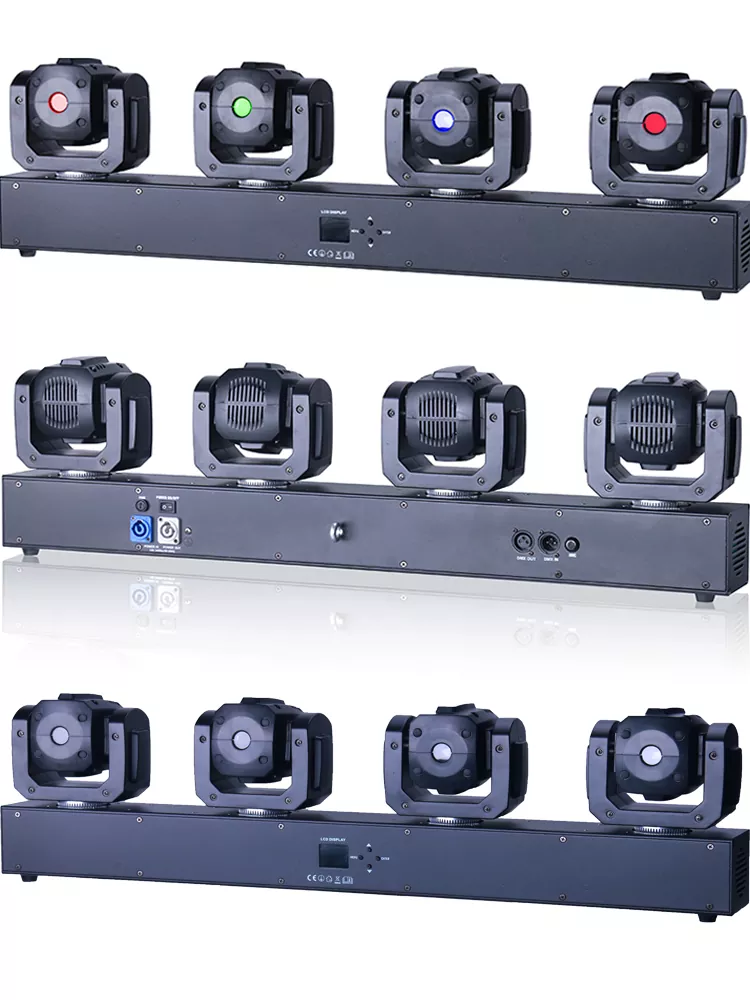

At optical core, the 4 head 500mw rgb 3‑in‑1 laser moving head bar light integrates four independently‑moving laser heads inside one compact bar‑shaped housing. Each head uses 500mW RGB 3‑in‑1 laser diode with dedicated grating glass attachment to generate rich split laser patterns. Sharp 1‑degree narrow beam delivers 18‑millimeter beam diameter measured at one‑meter distance. Every head supports wide 540‑degree pan and 200‑degree tilt rotation, enabling dynamic crossing multi‑laser beam visuals for indoor venues.

Net‑weight is 10 kg, designed for overhead truss mounting with supplied mounting brackets. Built‑in 1.8‑inch TFT colour display allows technicians to configure DMX address, channel‑profile, motor‑direction inversion and sound‑trigger sensitivity without external lighting console. Fuse F3AL250V provides circuit protection, universal AC100‑240V wide‑voltage input adapts global power‑grid standards. Important note: this laser fixture works strictly indoors; operators must follow local laser safety regulations and avoid direct audience eye exposure.

Control & Real‑World Deployment for the 4 Head 500mW RGB 3‑In‑1 Laser Moving Head Bar Light

Five selectable DMX channel profiles satisfy different programming‑depth requirements. Simplified 8‑channel mode enables ultra‑fast setup for casual private‑party events;13‑CH /22‑CH /35‑CH offer intermediate‑level group‑control for most bar‑DJ performances; advanced 52‑channel profile unlocks full independent adjustment for pan, tilt, laser‑color and effect parameters on each of four heads for sophisticated programmed concert‑grade shows.

Besides DMX‑console workflow, multiple standalone working modes expand onsite flexibility. Sound‑active reacts laser movements and color output according to music rhythm. Auto‑run cycles pre‑programmed laser pattern sequences. Master‑slave function links multiple laser‑bar fixtures for synchronized large‑area multi‑beam visual output.

Before truss‑hanging installation, users shall complete truss payload safety calculation. For rental‑house multi‑head laser‑lighting‑inventory expansion and club‑venue‑upgrade‑projects, this 4 head 500mw rgb 3‑in‑1 laser moving head bar light combines four independent grating‑glass laser heads, multi‑grade DMX options and intuitive TFT local control. It delivers B‑end lighting professionals a compact all‑in‑one multi‑beam laser solution for mobile‑DJ, club and indoor‑party live‑event productions.

Voltage: AC100-240V 50/60Hz
Power Consumption:48W
Light Source: RGB 3in1 500mW laser diode,can mix any color you want （R200mW/638nm,G100mW/520nm,B200mW/450nm）
DMX Channel: 8CH/13CH/22CH/35CH/52CH
Control Mode: DMX512, Sound, Auto run, Master-slave
Beam angle: beam 1°
Beam diameter:18mm@1m
pan: 540° tilt: 200°
Display: 1.8 inch TFT display
Fuse: F3A L250V
Light size: 85.4*10.9*24cm
Net Weight: 10kg
Packing size: 94*32*18.5-10.5/11.5kg
Each head with one grating glass

Q1: Laser source specification and total power consumption?

A1: 4×500mW RGB3‑in‑1 laser(R200mW@638nm,G100mW@520nm,B200mW@450nm);48W total,indoor‑only.

Q2: Beam,grating glass and pan‑tilt movement parameters?

A2:1° narrow beam,18mm beam diameter@1m;each head has grating glass;540° pan,200° tilt.

Q3: Available DMX channel profiles and supported operation modes?

A3:DMX:8CH,13CH,22CH,35CH,52CH;Modes:DMX512,master‑slave,sound‑active,auto‑run.

Q4: What practical difference between 8‑CH and high‑density 52‑CH DMX mode?

A4:8‑CH for quick preset playback;52‑CH grants fully independent fine‑tuning for every single laser moving‑head.

Q5: What convenience does 1.8‑inch TFT‑display bring for rental technicians?

A5:Adjust DMX address,channel‑mode,motor‑invert and sound‑sensitivity without external lighting console.

Q6: Fuse rating,power‑supply,size and net‑weight?

A6:Fuse F3AL250V;AC100‑240V 50‑60Hz;size85.410.924cm;net‑weight 10kg.

Q7: Can multiple laser bar fixtures run synchronized laser‑beam sequences?

A7:Yes,use master‑slave linkage;set primary as master and other fixtures as slave unit.

Q8: Which event‑types suit this laser moving‑head bar best?

A8:Mobile‑DJ gigs,disco‑club nights,bar shows,private‑parties and indoor‑concert touring‑rental events.
