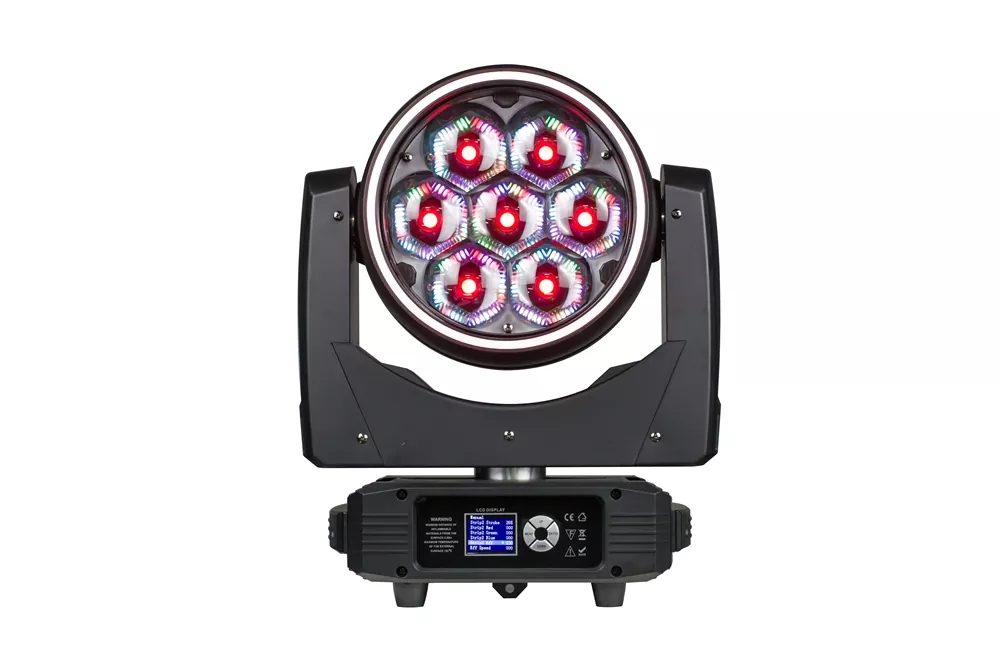

7×60W RGBW LED Wash Moving Head Light

7×60W RGBW LED Wash Moving Head Light,6°‑50° Linear Zoom,Pixel‑Control 36/48/64‑CH DMX Modes

This 7×60W rgbw led wash moving head light is IP20 indoor wash‑type stage fixture engineered for nightclubs, corporate functions, theatre houses and worldwide touring‑rental fleets. It is fitted with seven 60W RGBW 4‑in‑1 main LEDs plus dual auxiliary RGB honeycomb‑ring LED arrays for layered atmospheric lighting output. Offering 6°‑50° linear electronic zoom, full pixel‑level individual control, uniform RGBW colour mixing and rainbow visual effects. It supports static‑dynamic built‑in effect macros,1‑30Hz electronic and random strobe alongside four configurable dimming curves. Three DMX channel profiles (36CH /48CH /64CH) meet simple and advanced console programming requirements.

For venue integrators and rental stock managers shopping for high‑performance wash moving‑heads, many standard wash fixtures only produce flat wash output without supplementary decorative ring lighting. The 7×60W rgbw led wash moving head light solves this pain‑point by combining powerful main wash illumination and dual honeycomb‑pattern RGB ring effects for indoor live‑event environments. shop‑category/wash‑moving‑head‑stage‑lights

Optical Performance of the 7×60W RGBW LED Wash Moving Head Light

At its optical heart, the 7×60W rgbw led wash moving head light uses seven 60W RGBW 4‑in‑1 LED chips delivering maximum 450‑watt power consumption. Complementing main LED cluster are two groups of honeycomb‑structured RGB ring LEDs, adding independent ambient background glow separate from primary wash beam. Linear electronic zoom smoothly adjusts beam angle from narrow 6‑degree spot up to broad 50‑degree wash coverage, allowing lighting technicians to adapt beam size for small club stages or larger theatre auditoriums without swapping physical lenses.

Full pixel‑level control over each main LED source unlocks advanced creative looks. Uniform RGBW colour mixing together with built‑in rainbow effect generates smooth colour transitions for live music and theatrical scenes. Integrated static and dynamic effect macros cut programming hours during tight load‑in schedules for rental shows. Strobe performance covers 1‑30Hz electronic strobe and random strobe modes, while four switchable dimming curves optimise output for live‑camera recording or pure live‑audience visual requirements.

Control & Practical Operation for the 7×60W RGBW LED Wash Moving Head Light

This wash moving‑head supports three practical DMX channel options:36CH,48CH and 64CH. Operators may pick low‑channel 36CH mode for quick simple setups, or select 64‑channel profile to activate complete individual pixel and ring‑light creative mapping. It fully complies with DMX512 stage lighting protocol. Local on‑board menu panel permits DMX address setting, dimming‑curve switching, fan‑speed adjustment and manual fixture testing without connecting an external lighting console.

IP20 protection grade means this fixture is strictly designed for indoor installation; users must keep it away from moisture, rain and outdoor exposure. Net weight is 11.5 kg and gross shipping weight reaches 13 kg. The package dimension 49×33×42 cm helps rental crews calculate flight‑case allocation and truss‑mount load limits ahead of event setup.

For rental‑house inventory expansion and permanent venue upgrade projects, the 7×60W rgbw led wash moving head light merges flexible zoom optics, honeycomb‑ring decorative lighting, pixel‑mapping capability and multiple control profiles. It gives B‑end lighting professionals extra atmospheric creative layers for nightclub, corporate and theatre indoor live productions.

Voltage：100-240V 50/60Hz
Power consumption:450watt(max)
Light source ：7pcs 60W RGBW 4in1 LED,
Ring: 40 pcs 0.3W 5050 RGB LED
7X Honeycomb ring : 18 pcs 0.3W 5050 RGB LED
Zoom range：6°-50°
Channel mode :36CH / 48CH / 64CH
Color Mixing System : uniform RGBW color mixing and rainbow effect
Zoom system : Linear electronic zoom
Effect macro : static and dynamic
Dimmer : Linear electronic dimmer, provides four dimming options
Strobe : 1-30Hz electronic strobe and random strobe
Pixel control
IP20

Q1: What are main light‑source configuration and maximum power draw?

A1: Seven 60W RGBW 4‑in‑1 main LEDs plus dual RGB honeycomb‑ring LEDs;max power consumption 450W.

Q2: What zoom‑range and core optical capabilities does this wash fixture have?

A2: Linear electronic zoom from 6°‑50°,supports pixel‑level control,uniform RGBW mixing and rainbow effect.

Q3: What strobe and dimming functions are integrated inside this moving‑head?

A3: 1‑30Hz electronic & random strobe;four independent selectable electronic dimming curves.

Q4: Which DMX channel modes are available for console programming?

A4: Three selectable DMX profiles:36CH,48CH and 64CH for basic or full pixel‑mapping work.

Q5: Does this unit include pre‑loaded visual presets to reduce programming workload?

A5: Yes,built‑in static and dynamic effect macros help speed up show programming workflows.

Q6: Can this wash moving‑head light be deployed for outdoor event productions?

A6: IP20 rating for indoor‑only usage;it cannot resist water splashes or outdoor humidity.

Q7: What are net‑weight,gross‑weight and shipping‑package dimensions?

A7: Net weight 11.5KG,gross weight13KG;package dimension 49×33×42cm.

Q8: What extra visual benefit do the honeycomb‑ring LED arrays bring to performances?

A8: Dual honeycomb‑style RGB ring lights deliver secondary background glow for richer multi‑layer stage atmosphere.
